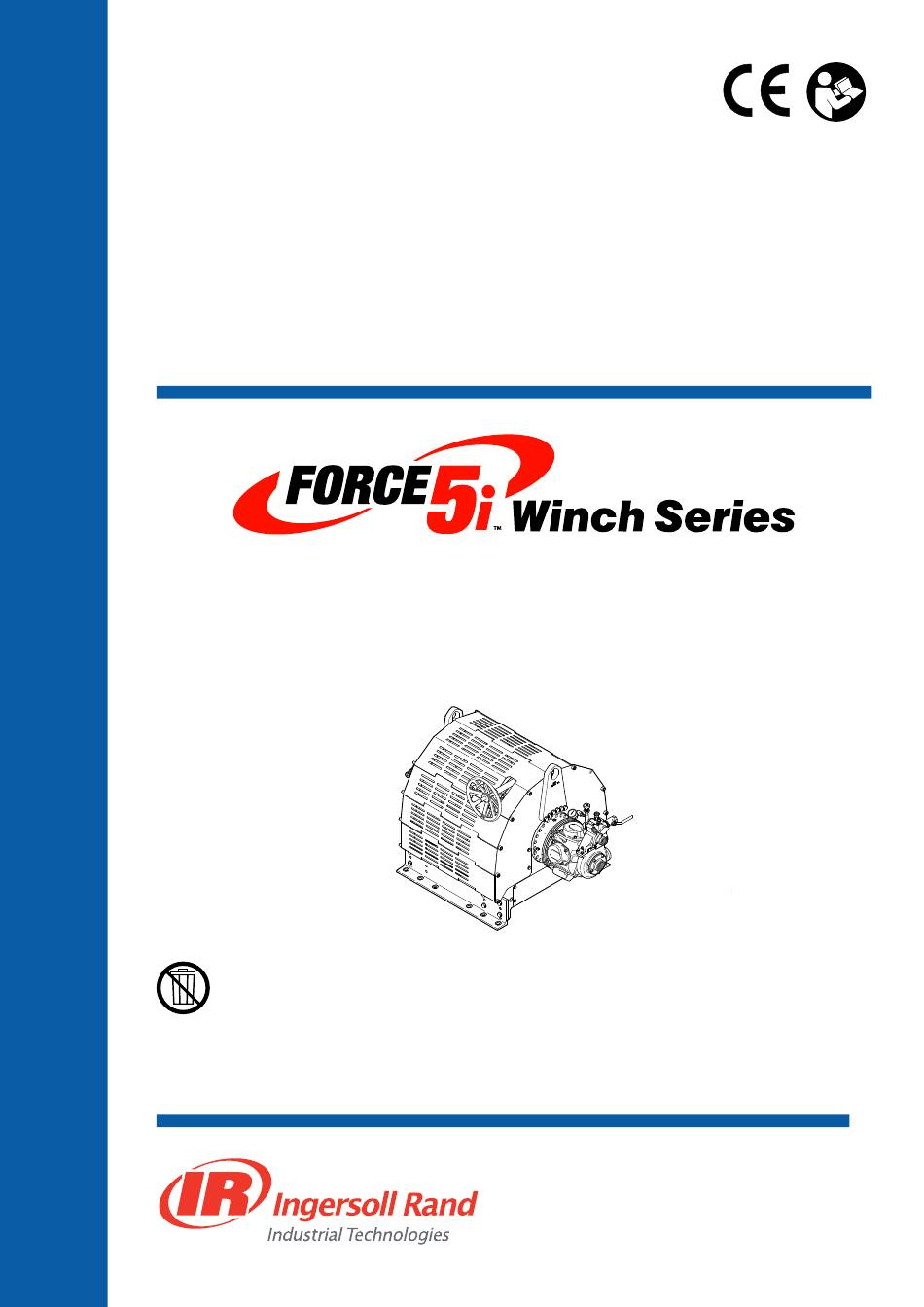

- Page 1 Product Information Model FA10i and FA10i-CE (-CE compliant with European Directives) (Dwg. MHP2947) Save These Instructions Form MHD56439 Edition 2 March 2010 45899812 2010 Ingersoll-Rand Company ©...
-
Page 2: Product Description
Only allow trained technicians to perform maintenance on this product. For additional information contact factory or nearest Ingersoll Rand Ingersoll Rand Distributor. For additional supporting documentation refer to Table 1 ‘Product Information Manuals’ on page 2. Manuals can be downloaded from www.ingersollrandproducts.com. The use of other than genuine Ingersoll Rand replacement parts may result in safety hazards, decreased performance and increased maintenance and will invalidate all warranties. -
Page 3: Specifications
SPECIFICATIONS Model Code Explanation Example: FA10i-36MK320P FA10i Series (Capacity): FA10i 22,000 lbs (10 metric tons) Drum Flange Height or Man Rider™: Standard flange Man Rider™ † Drum Length (Distance between drum flanges): Standard (Refer to Table 3 ‘Specifications’ on page 4 for drum lengths) Drum Brake: Automatic Band Brake Manual Band Brake... -
Page 4: Installation
Table 2: Specifications Air System Rated Performance (at rated pressure/volume) Air Consumption Full Drum Full Drum Max Stall Pull, Maximum Force Models (at rated pressure Net Weight ** Rated Operating Line Pull Line Speed First Layer Freeboard Limit and load) Pressure Factor scfm... -
Page 5: Air Supply
Table 6: Winch Bolt Hole Mounting Dimensions Wire Rope Spooling Drum Length (inches) Dimension To compensate for uneven spooling and the decrease in line pull capacity as the drum fills up, use as short a wire rope as practical. When rewinding apply tension to the end of the wire rope to eliminate line slack. -
Page 6: Operation
To adjust set points: NOTICE Follow instructions in the order they appear for limit switch adjustment (use two people to make adjustments). Refer to Dwg. MHP2688 on page 11, A. Center Nut; • Do not adjust regulator for a CE marked product, these are preset at factory B. - Page 7 Provides for remote mounting of winch control at a fixed location at up to 20 feet (6 2. If winch lifts higher than 160% of rated load, lower load. Turn jam nut metres) away from winch motor. Air hoses connect throttle to winch motor to provide (counterclockwise) in 1/4 turn increments until overload valve activates when winch operation.
-
Page 8: Limit Switches
To disengage Drum Locking Pin: Pre-set limit switch settings prevent winch wire rope payout and haul-in by stopping When facing the handle, pull handle away from the outboard upright and pivot it to air flow to the winch motor when a set point has been reached. It is the owner’s and the right. -
Page 9: General Lubrication
The motor should be level-checked daily or at the start of each shift after any Table 8: Lubrication Intervals accumulated water has been drained off. When motors are operated in temperatures Component Interval below freezing, wait long enough at the end of shift for water to separate from oil but not long enough for it to freeze. - Page 10 2. Apply a wire rope lubricant, Ingersoll Rand LUBRI-LINK-GREEN® or ISO VG 100 CAUTION (SAE 30W) grade oil. 3. Brush, drip or spray lubricant weekly, or more frequently, depending on severity • Do NOT use an acid-based solvent. Only use cleaning fluids specified by the of service.
- Page 11 PRODUCT INFORMATION GRAPHICS Lift Slider Handle UP to Unlock Haul-In Payout Air Inlet Port 1-1/4 NPT (Dwg. MHP0920) Brake Release Port 1/4 NPT Exhaust Port 1-1/2 NPT (Dwg. MHP1809) (Dwg. MHP2686) Air Out Regulator Air In Lubricator Filter (Dwg. MHP2619) (Dwg.
- Page 12 PRODUCT INFORMATION GRAPHICS (CONTINUED) To Brake (Dwg. MHP2772) Threaded Ports (Dwg. MHP2043) (Dwg. MHP2398) (Dwg. MHP1176) Regulator Auxiliary Valve Pressure (shown in Normal Gauge Position) “Emergency Stop” Button “ON” Button Control Function Valve Levers Pendant Handle (Dwg. MHP1892) (Dwg. MHP1865) Form MHD56439 Edition 2...
- Page 13 PRODUCT INFORMATION GRAPHICS (CONTINUED) (Dwg. MHP1348) Fill Plug Drum Position Reduction Gear Assembly Level Plug Position Inboard Upright (Dwg. MHP0140) Fill Cap Vent Cap Level Plug Drain Plug (Dwg. MHP2126) Form MHD56439 Edition 2...
