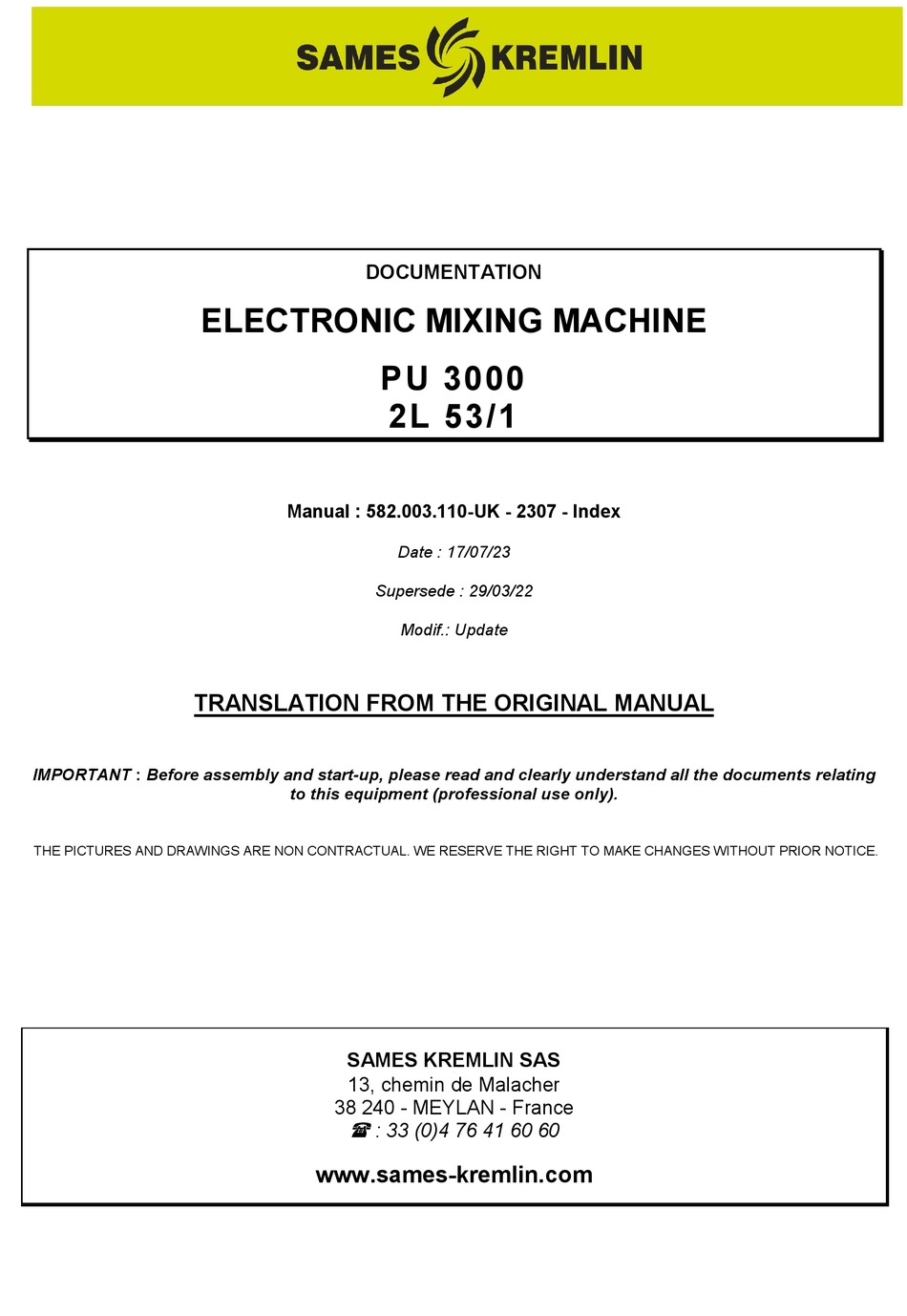

ELECTRONIC MIXING MACHINE
TRANSLATION FROM THE ORIGINAL MANUAL
IMPORTANT : Before assembly and start-up, please read and clearly understand all the documents relating
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
DOCUMENTATION
PU 3000
2L 53/1
Manual : 582.003.110-UK - 2307 - Index
Date : 17/07/23
Supersede : 29/03/22
Modif.: Update
to this equipment (professional use only).
SAMES KREMLIN SAS
13, chemin de Malacher
l
38 240 - MEYLAN - France
: 33 (0)4 76 41 60 60
www.sames-kremlin.com
