  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 4 3. Control Panel ....................6 4. How To Set The Unit ..................6 4.1 Main Function ..................6 4.2 Home Position Adjustment ..............14 5. Control By Universal DMX Controller ............14 5.1 DMX512 Connection ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables.  The minimum distance between light output and the illuminated surface must be more than  0.2 meters.

  • Page 5: Technical Specifications

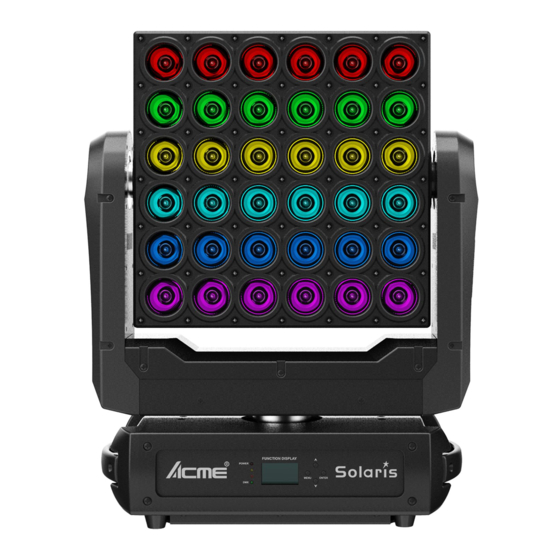

    2. Technical Specifications Power Voltage: AC 100~240V, 50/60Hz Power Consumption: 580W Light Source: 36x15W RGBW LED 49x0.06W CW LED Beam Angle: 6° Spot Angle: 10.8° Movement: Pan/Tilt movement: 360° Infinite Pan/Tilt Resolution: 16bit Dimmer/Shutter: Smooth dimming from 0~100%, with 4 optional dimming curves; outstanding strobe effect with variable speed Control: DMX channel: 166/206/22+144/21 channels...
  • Page 6 Features: Variable CTO Integrated multi features: beam, wash, pixel effect, star background and moonflower beam 36 (6x6) x 15W RGBW pixel control LED + 49 (7x7) CW star-effect LED Preset a variety of graphics matrix effect Outstanding color mixing effect Excellent thermal control Low noise: fan speed can be adjusted automatically according to temperature Optional reflector mirror module can create moonflower effect...

  • Page 7: Control Panel

    3. Control Panel 1. LED: POWER Power on DMX input present 2. Display: To show the various menus and the selected function 3. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER...
  • Page 9 DMX Setting To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select Channel Mode, Art-Net Setup, Port A DMX Address or Port B DMX Address. Channel Mode To select Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to select 166 CH, 206 CH, 22+144CH or 21 CH, press the ENTER button to store.
  • Page 10 button back to the last menu or let the unit idle 30 seconds to exit menu mode. Dimmer Speed To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
  • Page 11 Display Invert Select Display Invert, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select No (normal display) or Yes (invert display), press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
  • Page 12 M6x6 Dimmer Select M6x6 Dimmer, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to adjust the value from 0 to 255, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. M6x6 Strobe Select M6x6 Strobe, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to adjust the value from 0 to 255, press the ENTER button to store.
  • Page 13 M7x7 Random Select M7x7 Random, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to adjust the value from 0 to 255, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. M7x7 Pattern Select M7x7 Pattern, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to adjust the value from 0 to 255, press the ENTER button to store.
  • Page 14 Reset Functions All Reset Select All Reset, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes (the unit will run built-in program to reset all motors to their home positions), press ENTER button to store. Press the MENU button to exit. Special Functions Factory Setting Select Factory Setting, press the ENTER button to confirm, use the UP/DOWN button to select No...

  • Page 15: Home Position Adjustment

    4.2 Home Position Adjustment Press the MENU button into menu mode, then press the ENTER button for about 3 seconds into offset mode to adjust the home position. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.

  • Page 16: Address Setting

    1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit. 2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the input of the next unit.

  • Page 17: Dmx512 Configuration

    Please refer to the following diagram to address your DMX512 channel for the first 4 units. Unit 1 Unit 2 Unit 3 Unit 4 Channel mode Address Address Address Address 166 channels 206 channels 22+144 channels 21 channels 5.3 DMX512 Configuration Please refer to below configurations to control the fixtures Attentions: 1.
  • Page 18 FUNCTION 000-069 No Function 070-079 Reset All 080-255 No Function DIMMER 000-255 0%100% 000-255 DIMMER FINE STROBE 000-007 Close 008-015 Open 016-131 Strobe, Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247...
  • Page 19 040-047 Effect 05 048-055 Effect 06 056-063 Effect 07 064-071 Effect 08 072-079 Effect 09 080-087 Effect 10 088-095 Effect 11 096-103 Effect 12 104-111 Effect 13 112-119 Effect 14 120-127 Effect 15 128-135 Effect 16 136-143 Effect 17 144-151 Effect 18 152-159 Effect 19...
  • Page 20 076-084 Letter-G 085-093 Letter-H 094-102 Letter-I 103-111 Letter-J 112-120 Letter-K 121-129 Letter-L 130-138 Letter-M 139-147 Letter-N 148-156 Letter-O 157-165 Letter-P 166-174 Letter-Q 175-183 Letter-R 184-192 Letter-S 193-201 Letter-T 202-210 Letter-U 211-219 Letter-V 220-228 Letter-W 229-237 Letter-X 238-246 Letter-Y 247-255 Letter-Z LETTER a to z 000-021 No Function...
  • Page 21 247-255 Letter-z RANDOM STAR 000-010 Open 011-063 Effect 1 064-073 Open 074-127 Effect 2 128-137 Open 138-191 Effect 3 192-201 Open 202-255 Effect 4 STAR PATTERN 000-011 Pattern 01 012-023 Pattern 02 024-035 Pattern 03 036-047 Pattern 04 048-059 Pattern 05 060-071 Pattern 06 072-083...
  • Page 22 206 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0°540° PAN FINE 000-255 TILT 000-255 0°450° 000-255 TILT FINE PAN/TILT SPEED 000-254 Fast to Slow Fast Pan Infinity 000-127 Pan Position 128-189 CCW Infinity, Fast to Slow 190-193 Stop 194-255 CW Infinity, Slow to Fast Tilt Infinity 000-127 Tilt Position...
  • Page 23 STAR STROBE 000-012 Open 013-025 Close 026-076 Strobe, Slow to Fast 077-127 Slow Open Fast Close 128-178 Fast Open Slow Close 179-242 Random Strobe, Slow to Fast 243-255 Open 158-206 000-255 49 STAR PIXEL 22+144 Channels (Mode 3): CHANNEL VALUE FUNCTION 1(Port A) 000-255...
  • Page 24 008-015 Open 016-131 Strobe, Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% WHITE 000-255 0%100% RGBW EFFECT SWITCH 000-063 No Function 064-127...
  • Page 25 120-127 Effect 15 128-135 Effect 16 136-143 Effect 17 144-151 Effect 18 152-159 Effect 19 160-167 Effect 20 168-175 Effect 21 176-183 Effect 22 184-191 Effect 23 192-199 Effect 24 200-207 Effect 25 208-215 Effect 26 216-223 Effect 27 224-231 Effect 28 232-239 Effect 29...
  • Page 26 166-174 Letter-Q 175-183 Letter-R 184-192 Letter-S 193-201 Letter-T 202-210 Letter-U 211-219 Letter-V 220-228 Letter-W 229-237 Letter-X 238-246 Letter-Y 247-255 Letter-Z LETTER a to z 000-021 No Function 022-030 Letter-a 031-039 Letter-b 040-048 Letter-c 049-057 Letter-d 058-066 Letter-e 067-075 Letter-f 076-084 Letter-g 085-093 Letter-h...
  • Page 27 STAR PATTERN 000-011 Pattern 01 012-023 Pattern 02 024-035 Pattern 03 036-047 Pattern 04 048-059 Pattern 05 060-071 Pattern 06 072-083 Pattern 07 084-095 Pattern 08 096-107 Pattern 09 108-119 Pattern 10 120-131 Pattern 11 132-143 Pattern 12 144-155 Pattern 13 156-167 Pattern 14 168-179...
  • Page 28 21 Channels (Mode 4): CHANNEL VALUE FUNCTION 000-255 0°540° PAN FINE 000-255 TILT 000-255 0°450° 000-255 TILT FINE PAN/TILT SPEED 000-254 Fast to Slow Fast Pan Infinity 000-127 Pan Position 128-189 CCW Infinity, Fast to Slow 190-193 Stop 194-255 CW Infinity, Slow to Fast Tilt Infinity 000-127 Tilt Position...
  • Page 29 BLUE 000-255 0%100% WHITE 000-255 0%100% RGBW EFFECT MODE 000-014 Blackout 015-047 Full On 048-095 Macro Effect (see channel 17-1) 096-135 Number 1 to 9 (see channel 17-2) 136-175 Letter A to Z (see channel 17-3) 176-215 Letter a to z (see channel 17-4) 216-255 Blackout MARCO EFFECT...
  • Page 30 000-025 No Function 026-048 Number-0 049-071 Number-1 072-094 Number-2 095-117 Number-3 118-140 Number-4 141-163 Number-5 164-186 Number-6 187-209 Number-7 210-232 Number-8 233-255 Number-9 LETTER A to Z 000-021 No Function 022-030 Letter-A 031-039 Letter-B 040-048 Letter-C 049-057 Letter-D 058-066 Letter-E 067-075 Letter-F 076-084...
  • Page 31 076-084 Letter-g 085-093 Letter-h 094-102 Letter-i 103-111 Letter-j 112-120 Letter-k 121-129 Letter-l 130-138 Letter-m 139-147 Letter-n 148-156 Letter-o 157-165 Letter-p 166-174 Letter-q 175-183 Letter-r 184-192 Letter-s 193-201 Letter-t 202-210 Letter-u 211-219 Letter-v 220-228 Letter-w 229-237 Letter-x 238-246 Letter-y 247-255 Letter-z RANDOM STAR 000-010 Open...

  • Page 32: Troubleshooting

    204-215 Pattern 18 216-227 Pattern 19 228-239 Pattern 20 240-255 No Function STAR DIMMER 000-255 0%100% STAR STROBE 000-012 Open 013-025 Close 026-076 Strobe, Slow to Fast 077-127 Slow Open Fast Close 128-178 Fast Open Slow Close 179-242 Random Strobe, Slow to Fast 243-255 Open 6.

  • Page 33: Fixture Cleaning

    7. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 36 Innovation, Quality, Performance...
