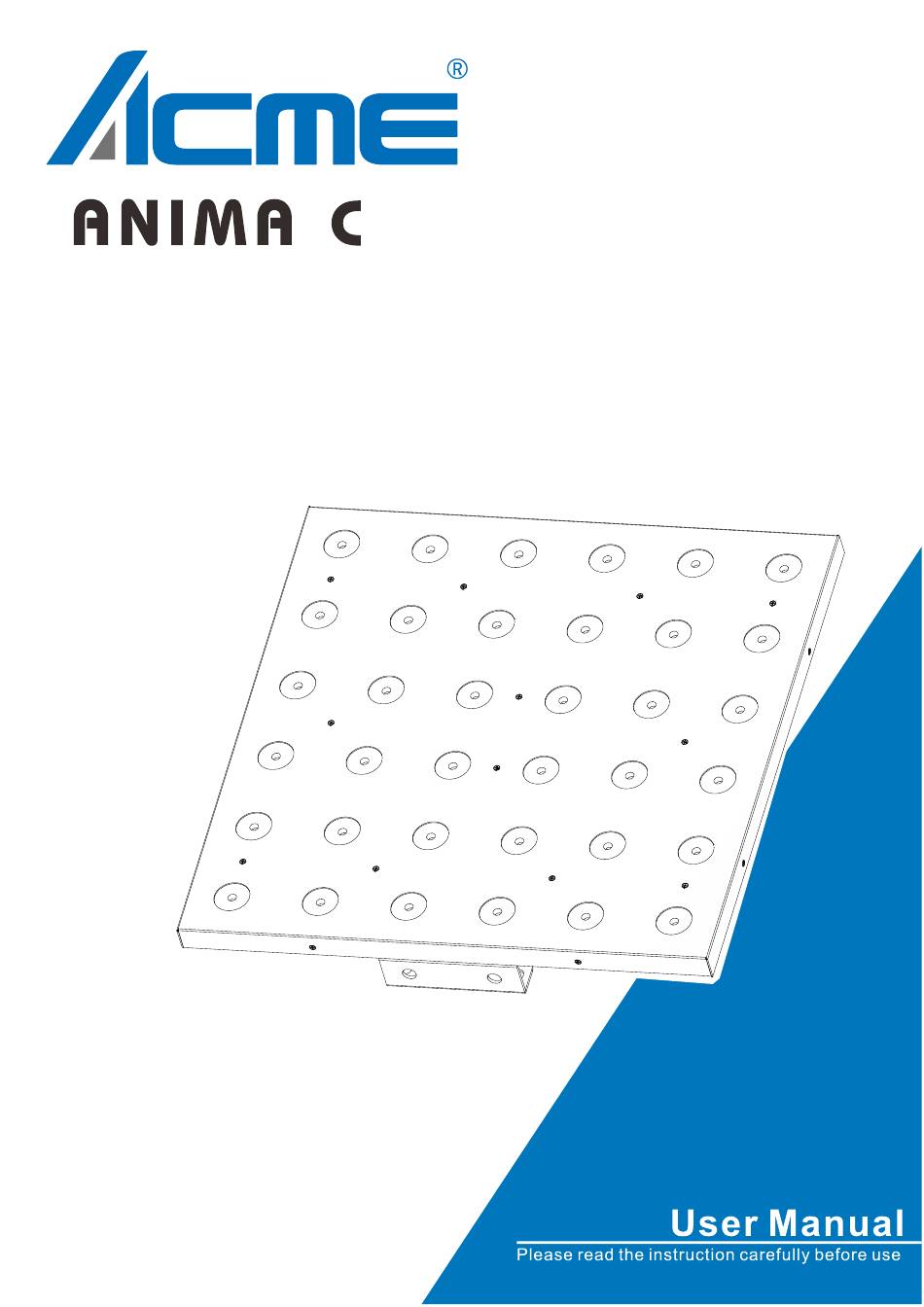

ACME ANIMA C User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME ANIMA C

Summary of Contents for ACME ANIMA C

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ..................2 2. Technical Specifications ................. 3 3. Control Panel ....................5 4. Installation ..................... 5 5. How To Set The Unit ..................7 5.1 Main Function ..................7 5.2 Home Position Adjustment ..............12 6. Control By Universal DMX Controller ............13 6.1 DMX512 Connection ................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.

  • Page 4: Technical Specifications

    DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid power wires together twist other cables.  The minimum distance between light output and the illuminated surface must be more than  0.5 meters.
  • Page 5 Construction: Display: OLED display Data In/Out: 3-pinXLR (5-pin XLR is optional) Power In/Out: Power connector in/out Protection Rating: IP20 Features: Compact design, light in weight Multiple units can be split-jointed horizontally with connecting board LED can be controlled pixel by pixel, delivering versatile effects Dimensions/ Weight: 500x85x500mm, 9.3kgs 19.7”x3.3”x19.7”in, 20.5lbs...

  • Page 6: Control Panel

    3. Control Panel 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.
  • Page 7 1. Installation parallel to the plane As shown in the figure, fix the clamp (B) on the hanger of the fixture by using screws and nuts (A) and lock the clamp (B) on the truss. 2. Installation vertical to the plane As shown in the figure, fix the clamp (C) on the splicing plate (A) of the fixture by using screws and nuts (B) and lock the clamp (C) on the truss.

  • Page 8: How To Set The Unit

    5. How To Set The Unit 5.1 Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor. Select the function by the ENTER button. Use the UP/DOWN button to choose the submenu, press the ENTER button to store and automatically return to the last menu.
  • Page 9 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, Channel Mode, No DMX State or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the address from 001 to 405/498/502/510, press the ENTER button to store.
  • Page 10 Optically Linear: The increase in light intensity appears to be linear as DMX value is increased. Square Law: Light intensity control is finer at low levels and coarser at high levels. Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels. S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
  • Page 11 Display Warning Select Display Warning, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select Off or On. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Fixture Language Select Fixture Language, press the ENTER button to confirm, present mode will blink on the display, use the UP/DOWN button to select English or Chinese.
  • Page 12 LED Use Hour To select LED Use Hour, press the ENTER button to confirm, use the UP/DOWN button to select Total LED Hour, LED On Hour or LED Hours Reset, press the ENTER button to store. Use the UP/DOWN button to select LED Hours Reset, press the ENTER button to confirm, use the UP/DOWN button to set the password 050 to reset the LED hours, press the ENTER button to store.

  • Page 13: Home Position Adjustment

    RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.

  • Page 14: Control By Universal Dmx Controller

    Blue1 Enter offset mode, select Blue1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit. ……...

  • Page 15: Address Setting

    1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit. 2. Connect the unit together in a “daisy chain” by XLR plug cable from the output of the unit to the input of the next unit.

  • Page 16: Dmx512 Configuration

    6.3 DMX512 Configuration Please refer to below configurations to control the fixtures Attentions: 1. The unit will maintain the last condition until reset if you cut-off the DMX signal. 2. For the channel Function, keep the value for about 3 seconds, then the corresponding function will take into effect.
  • Page 17 RED (RING 2) 000-255 0%100% GREEN (RING 2) 000-255 0%100% BLUE (RING 2) 000-255 0%100% RED (RING 3) 000-255 0%100% GREEN (RING 3) 000-255 0%100% BLUE (RING 3) 000-255 0%100% CTO (8000K-2500K) Close 001-004 8000K 005-009 7900K 010-013 7800K 014-018 7700K 019-022 7600K...
  • Page 18 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202 3600K 203-207 3500K 208-211 3400K 212-216 3300K 217-220 3200K 221-225 3100K 226-229 3000K 230-234 2900K 235-238 2800K 239-243...
  • Page 19 115-119 LEE 089-Moss Green 120-124 LEE 122-Fern Green 125-129 LEE 738-JAS Green 130-134 LEE 088-Lime Green 135-139 LEE 100-Spring Yellow 140-144 LEE 104-Deep Amber 145-149 LEE 179-Chrome Orange 150-154 LEE 105-Orange 155-159 LEE 021-Gold Amber 160-164 LEE 778-Millennium Gold 165-169 LEE 135-Deep Gold Amber 170-174 LEE 164-Flame Red...
  • Page 20 120-129 Null 130-139 Null 140-179 Null 180-189 Dimmer Speed Fast 190-199 Dimmer Speed Smooth 200-209 Null 210-219 Null 220-229 Null 230-255 Null 11 Channels (Mode 3): CHANNEL VALUE FUNCTION 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% CTO (8000K-2500K) Close 001-004 8000K 005-009...
  • Page 21 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175 4200K 176-180 4100K 181-184 4000K 185-189 3900K 190-193 3800K 194-198 3700K 199-202...
  • Page 22 070-074 LEE 161-State Blue 075-079 LEE 201-Full CT Blue 080-084 LEE 202-Half CT Blue 085-089 LEE 117-Steel Blue 090-094 LEE 353-Lighter Blue 095-099 LEE 118-Light Blue 100-104 LEE 116-Medium Blue Green 105-109 LEE 124-Dark Green 110-114 LEE 139-Primary Green 115-119 LEE 089-Moss Green 120-124 LEE 122-Fern Green...
  • Page 23 064-071 Effect 08 072-079 Effect 09 080-087 Effect 10 088-095 Effect 11 096-103 Effect 12 104-111 Effect 13 112-119 Effect 14 120-127 Effect 15 128-135 Effect 16 136-143 Effect 17 144-151 Effect 18 152-159 Effect 19 160-167 Effect 20 168-175 Effect 21 176-183 Effect 22...
  • Page 24 103-111 Letter-J 112-120 Letter-K 121-129 Letter-L 130-138 Letter-M 139-147 Letter-N 148-156 Letter-O 157-165 Letter-P 166-174 Letter-Q 175-183 Letter-R 184-192 Letter-S 193-201 Letter-T 202-210 Letter-U 211-219 Letter-V 220-228 Letter-W 229-237 Letter-X 238-246 Letter-Y 247-255 Letter-Z LETTER a to z 000-021 No Function 022-030 Letter-a 031-039...
  • Page 25 008-015 Opne 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Close Slow Open 182-189 Open 190-231 Fast Open Slow Close 232-239 Open 240-247 Random Strobe 248-255 Open DIMMER 000-255 0%100% DIMMER FINE 000-255 SPECIAL FUNCTION 000-029 Null 030-039 Dimmer Curve Linear 040-049 Dimmer Curve Square Law...

  • Page 26: Error Information

    7. Error Information 1. Led Temp. Error Check if the temperature detecting board is normal. Check if the components of the temperature detecting board are damaged. Check if the lead of the temperature detecting board is installed in place or disconnected. 2.

  • Page 27: Fixture Cleaning

    9. Fixture Cleaning The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics.
  • Page 28 Innovation, Quality, Performance...
