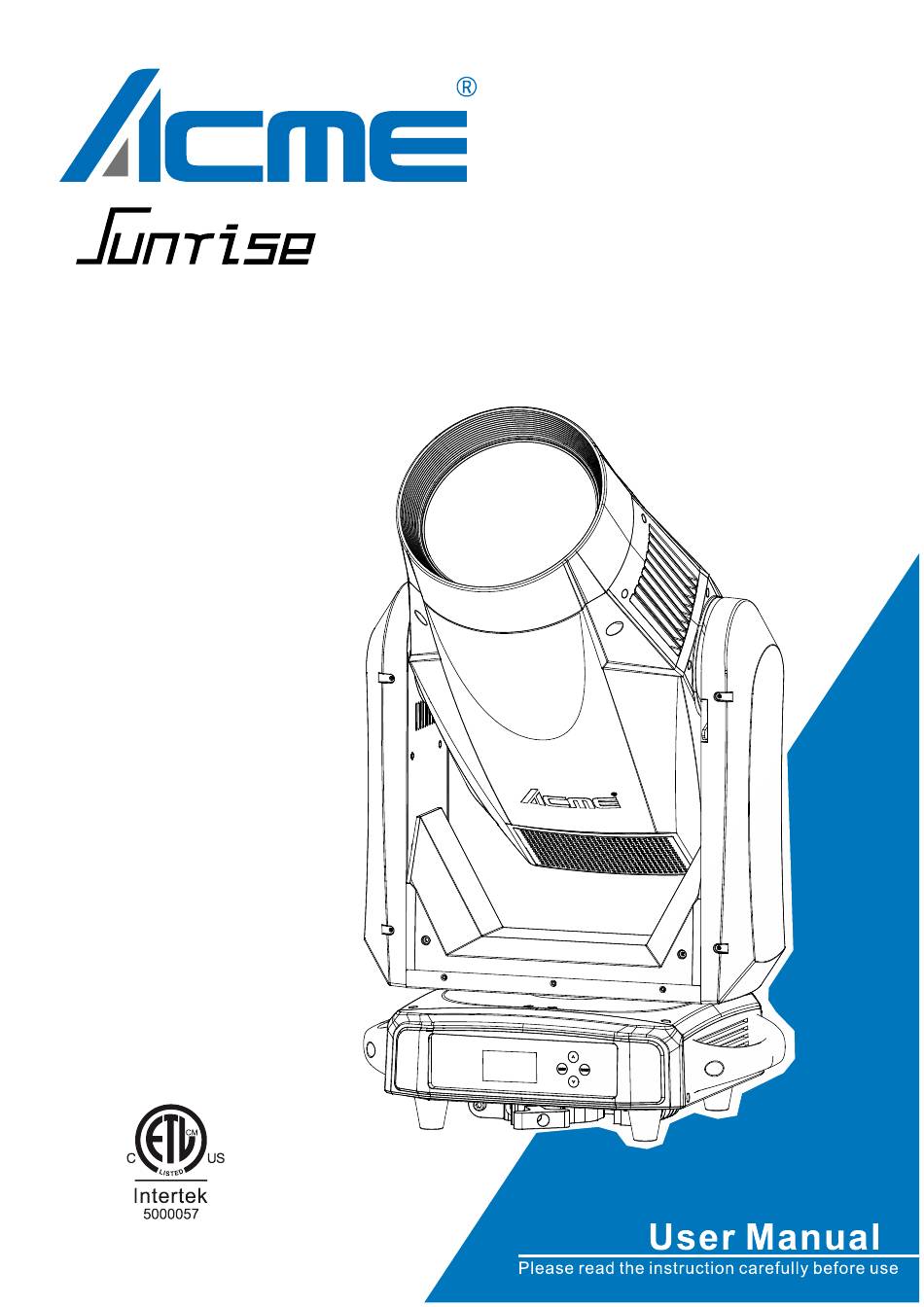

ACME Sunrise User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME Sunrise

Summary of Contents for ACME Sunrise

  • Page 2: Table Of Contents

    CONTENTS 1. Safety Instructions ....................2 2. Technical Specifications ..................6 3. Control Panel ......................8 4. Effect Wheels ......................9 5. How To Set The Unit ....................9 5.1 Main Function ....................9 5.2 Home Position Adjustment................17 6. Control By Universal DMX Controller ..............22 6.1 DMX512 Connection ..................

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 1. Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions. Important: Les dommages causés par le non-respect de ce manuel d'utilisation ne sont pas couverts par la garantie.
  • Page 6 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 75℃. NE PAS toucher les capots à mains  nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si cela ...

  • Page 7: Technical Specifications

    Installation: Le luminaire doit être fixé à l’aide de crochets. Assurez-vous toujours que l'appareil est fermement fixé pour éviter les vibrations et le glissement pendant le fonctionnement. Assurez-vous que la structure ou la zone d'installation peut supporter au moins 10 fois le poids de cet appareil sans aucune déformation.
  • Page 8 Control: DMX Channel: 27/18 channels Control Mode: DMX512, RDM, Art-Net, sACN Firmware Upgrade via DMX link or USB disk Construction: Display: LCD display Battery backup for user setup without mains connection Data In/Out: 3-pin and 5-pin XLR, RJ45 Power In/Out: Power Connector in/out Protection Rating: IP20 Features: Standard mode Ra>70...

  • Page 9: Control Panel

    Photometric Diagram: 3. Control Panel 1. Display: To show the various menus and the selected function 2. Button: MENU To enter into move backward or leave the menu To go backward to move up in the menu DOWN To go forward to move down in the menu ENTER To perform the desired functions 3.

  • Page 10: Effect Wheels

    4. Effect Wheels DANGER! Install the color wheels with the device switched off only. Unplug from mains before changing the color wheels! 5. How To Set The Unit 5.1 Main Function Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until the required function is shown on the monitor.
  • Page 12 DMX Settings To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, DMX Channel Mode, Connect Option, No DMX Status, Network, Art-Net, sACN, Repeat On DMX or View DMX Value. DMX Address To select DMX Address, press the ENTER button to confirm.
  • Page 13 No DMX Status To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select Hold or Blackout, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Network To select Network, press the ENTER button to confirm.
  • Page 14 Pan Invert To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No or Yes, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.
  • Page 15 Power Mode To select Power Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Standard or Quiet, press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode. Soften Mode To select Soften Mode, press the ENTER button to confirm.
  • Page 16 Auto Test Select Auto Test, press the ENTER button to confirm, the unit will run built-in programs to automatically test pan, tilt, color, focus, zoom, shutter, dimmer, special function, etc. Press the MENU button back to the last menu or exit menu mode after auto test. Manual Mode Select Manual Mode, press the ENTER button to confirm, the present channel will show on the display, use the UP/DOWN button to select channel, press the ENTER button to confirm, then use...
  • Page 17 Firmware Version Select Firmware Version, press the ENTER button to confirm, firmware version will show on the display, press the MENU button back to exit. Reset Function To select Reset Function, press the ENTER button to confirm, use the UP/DOWN button to select Pan &...

  • Page 18: Home Position Adjustment

    RDM FUNCTIONS Select the MANUFACTURER menu to display the manufacturer of the fixture. Select the SOFTWARE VERSION menu and the program version number of the fixture will be displayed. Select the DMX START ADDRESS menu to change the DMX 512 address (001-512). Select the DEVICE MODEL DESCRIPTION menu to display the model of the fixture.
  • Page 19 Dimming Start Enter offset mode, Select Dimming Start, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 9999, press the ENTER button to store. Press the MENU button to exit.
  • Page 20 LED Frequency(Hz) Enter offset mode, Select LED Frequency(Hz), press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 1072 to 1327, press the ENTER button to store. Press the MENU button to exit. Enter offset mode, Select Pan, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store.
  • Page 21 Color2 Enter offset mode, Select Color2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER button to store. Press the MENU button to exit. Zoom Enter offset mode, Select Zoom, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from -128 to 127, press the ENTER...
  • Page 22 BladeLF1 Enter offset mode, Select BladeLF1, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER button to store. Press the MENU button to exit. BladeLF2 Enter offset mode, Select BladeLF2, press the ENTER button to confirm, the present position will blink on the display, use the UP/DOWN button to offset the value from 0 to 255, press the ENTER...

  • Page 23: Control By Universal Dmx Controller

    6. Control By Universal DMX Controller 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 24: Address Setting

    6.2 Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal. Press the MENU button to enter menu mode, select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select DMX Address, press the ENTER button to confirm, the present address will blink in the display, use the UP/DOWN button to adjust the address from 001 to 512, press the ENTER button to store.
  • Page 25 Yellow 000-255 0%100% 000-255 0%100% Color 1 000-009 Open 010-018 Color1 019-027 Color2 028-036 Color3 037-045 Color4 046-063 Color5 064-127 Color Index 128-189 Rotate Fast to Slow 190-193 Stop 194-255 Rotate Slow to Fast Color 2 000-009 Open 010-018 Color1 019-027 Color2 028-036...
  • Page 26 000-255 0%100% 000-255 Dimmer Fine Blade 000-255 0°-180° BladeDW1 000-255 0%100% BladeDW2 000-255 0%100% BladeUP1 000-255 0%100% BladeUP2 000-255 0%100% BladeLF1 000-255 0%100% BladeLF2 000-255 0%100% BladeRG1 000-255 0%100% BladeRG2 000-255 0%100% Function 000-029 Null 030-039 Dimmer Curve Square Law 040-049 Dimmer Curve INV Square Law 050-059...
  • Page 27 18 Channels (Mode 2): CHANNEL VALUE FUNCTION 000-255 0°540° Pan Fine 000-255 Tilt 000-255 0°270° 000-255 Tilt Fine P/T Speed 000-255 Fast to Slow Cyan 000-255 0%100% Magenta 000-255 0%100% Yellow 000-255 0%100% 000-255 0%100% Color 1 000-009 Open 010-018 Color1 019-027 Color2...
  • Page 28 008-255 Open Frost 000-255 0%100% Zoom 000-255 72°5° Strobe 000-007 Close 008-015 Open 016-131 Strobe Slow to Fast 132-139 Open 140-181 Fast Open Slow Close 182-189 Open 190-231 Fast Close Slow Open 232-239 Open 240-247 Random Strobe 248-255 Open Dimmer 000-255 0%100% 000-255...

  • Page 29: Error Information

    7. Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired. 1. CPU-B/C/D/E/F/G Error Check whether the 485 (DATA) leads on the PCB board are installed in place or disconnected. Check whether the related 485 (DATA) signal circuit on the PCB board is damaged.
  • Page 30 6. LED Fan1/2/3/4/5/6/7/8/9/10 Start Error Check whether the fan is not running. Check whether the fan leads are installed in place or disconnected. Check whether the fan is damaged. Check whether there are obstacles in the fan operating range. 7. LED Fan1/2/3/4/5/6/7/8/9/10 Stop Error Check whether the fan circuit on the motherboard breaks down.
  • Page 31 Check whether the motor on the magenta color wheel is damaged. Check whether the related circuit of the motor drive board on the magenta color wheel is damage. 12. Yellow Error Check whether the position of the yellow color wheel where the magnet is installed falls off or is damaged.
  • Page 32 15. Zoom Error Check whether the position of the zoom where the magnet is installed falls off or is damaged. Check whether there are obstacles in the zoom operating range. Check whether the Hall element on the zoom is damaged. Check whether the lead connecting the Hall element on the zoom and the PCB board is in poor contact or disconnected.

  • Page 33: Troubleshooting

    8. Troubleshooting Following are a few common problems that may occur during operation. Here are some suggestions for troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connected power. 2. Measure the voltage. 3.
  • Page 35 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A1: 2019; EN 55035: 2017. &...
  • Page 36 Innovation, Quality, Performance...
