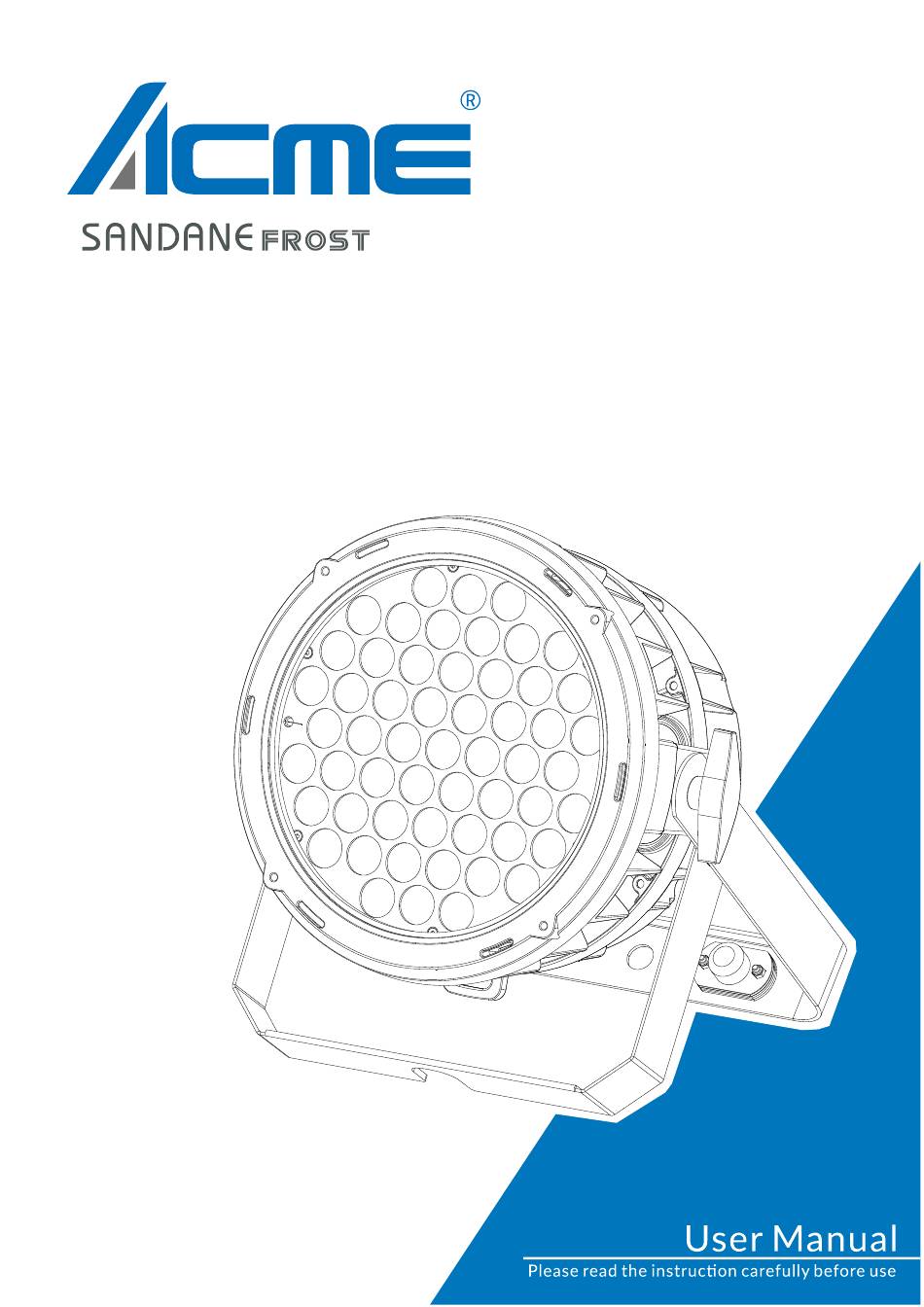

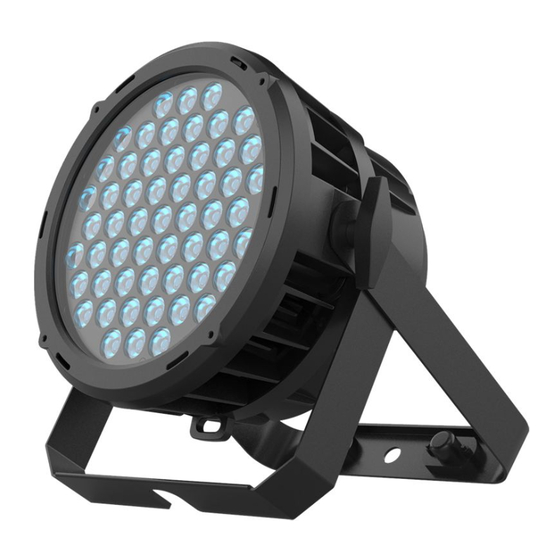

ACME SANDANE FROST User Manual
  1. Manuals
  2. Brands
  3. ACME Manuals
  4. Lighting Equipment
  5. SANDANE FROST
  6. User manual

ACME SANDANE FROST User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SANDANE FROST and is the answer not in the manual?

Questions and answers

Related Manuals for ACME SANDANE FROST

Summary of Contents for ACME SANDANE FROST

  • Page 2: Table Of Contents

    CONTENTS 01/ Safety Information ....................2 02/ Technical Specifications ..................6 03/ Overview ........................8 04/ Fixture Installation ....................9 05/ Operation ....................... 11 5.1 Control Menu ....................11 5.2 Home Position Adjustment ................. 22 06/ Configuring the Device for DMX Control ............24 6.1 DMX512 Connection ...................

  • Page 3: 01/ Safety Information

    01/ Safety Information Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 off the mains power immediately. DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 01/ Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions.
  • Page 6 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 65℃. NE PAS toucher les capots à  mains nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si ...

  • Page 7: 02/ Technical Specifications

    02/ Technical Specifications AC Power 100-240V~ 50/60Hz Max. Power 215W Consumption Light Source 55x6W RGBL LED Beam Angle 18°, 36°, 53° Field Angle 37°, 96°, 128° DMX Channels 11/9/8/7/6 DMX512 Control and Protocols Programming Primary/Secondary Mode Firmware Update via DMX Display OLED display DMX and RDM...
  • Page 8 Photometric Diagram (Beam Angle): Photometric Diagram (Field Angle): - 7 -...

  • Page 9: 03/ Overview

    03/ Overview 1. Display To show the various menus and the selected function MENU To enter into move backward or leave the menu  UP To go backward to move up in the menu 2. Buttons  DOWN To go forward to move down in the menu ENTER To perform the desired functions For DMX512 link, use 3-pin XLR cable to link the unit and DMX...

  • Page 10: 04/ Fixture Installation

    04/ Fixture Installation The fixture is IP66-rated and designed for both indoor and outdoor events. This means that it is protected from:  Dust, to the degree that dust cannot enter the device in sufficient quantities as to interfere with its operation. ...
  • Page 11 - 10 -...

  • Page 12: 05/ Operation

    05/ Operation 5.1 Control Menu  To access the control menus, press the [MENU] button.  Navigate the menu structure, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 13 MAIN MENU SUBMENU CHOICES/VALUES Secondary Pri/Sec Mode Primary 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz LED Refresh Rate 2500Hz 4000Hz 5000Hz 6000Hz 10000Hz 15000Hz 20000Hz 25000Hz Display Invert °C Display Settings Temperature Unit °F English Language Chinese Single Auto Test Cycle Clear No/Yes...
  • Page 14 MAIN MENU SUBMENU CHOICES/VALUES Set Scene Totals 0-50 0-255 Green 0-255 Edit Scene Color 1-50 Show Program Blue 0-255 Lime 0-255 Fade Time 0-255 Hold Time 0-255 Fixture Use Hour Total LED Hour LED On Hour LED Use Hour LED Hours Reset Password=050 Current Max temp...
  • Page 15 Channel Mode Select Channel Mode, press ENTER. Use UP/DOWN button to select between Mode 1 (11), Mode 2 (9), Mode 3 (8), Mode 4 (7) and Mode 5 (6), confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. No DMX Status Select No DMX Status, press ENTER.
  • Page 16 Fixture Settings Enter the control menu and select Fixture Settings, press ENTER. Use the UP/DOWN button to select Dimmer Curve, Dimmer Speed, White Balance, Pri/Sec Mode or LED Refresh Rate. Dimmer Curve Select Dimmer Curve, press ENTER. Use UP/DOWN button to select Linear, Square Law, Inv SQ Law or S Curve, confirm your selection with ENTER.
  • Page 17 Pri/Sec Mode Select Pri/Sec Mode, press ENTER. Use UP/DOWN button to select Secondary or Primary, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. LED Refresh Rate Select LED Refresh Rate, press ENTER. Use UP/DOWN button to select 900Hz, 1000Hz, 1100Hz, 1200Hz, 1300Hz, 1400Hz, 1500Hz, 2500Hz, 4000Hz, 5000Hz, 6000Hz, 10000Hz, 15000Hz, 20000Hz or 25000Hz, confirm your selection with ENTER.
  • Page 18 Language Select Language, press ENTER. Use UP/DOWN button to select English or Chinese, confirm your selection with ENTER. To exit the menu, press MENU, or wait 30 seconds. Auto Test Select Auto Test, press ENTER. Use UP/DOWN button to select Single (the device immediately performs a single automatic self-test) or Cycle (the device immediately performs a cyclic automatic self-test), confirm your selection with ENTER.
  • Page 19 Show Program Enter the control menu and select Show Program, press ENTER. Use the UP/DOWN button to select Set Scene Totals, Edit Scene Color, Fade Time or Hold Time. Set Scene Totals Select Set Scene Totals, press ENTER. Use UP/DOWN button to select a value between 0 and 50, confirm your selection with ENTER.
  • Page 20 Information Enter the control menu and select Information, press ENTER. Use the UP/DOWN button to select Fixture Use Hour, LED Use Hour, Temperature, Firmware Version, RDM UID or Error Logs. Fixture Use Hour Select Fixture Use Hour, press ENTER. The operating hours is displayed. To exit the menu, press MENU, or wait 30 seconds.
  • Page 21 RDM UID Select RDM UID, press ENTER. The RDM UID is displayed. To exit the menu, press MENU, or wait 30 seconds. Error Logs Select Error Logs, press ENTER. Use UP/DOWN button to select Fixture Errors, confirm your selection with ENTER. The error list is displayed.
  • Page 22 RDM functions: Certain menus of the device and functions can be called up via the RDM protocol. The parameter IDs are implemented as follows for different commands: Command Command Command Parameter ID ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH √ DISC_MUTE √ DISC_UN_MUTE √...

  • Page 23: Home Position Adjustment

    5.2 Home Position Adjustment  To access the control menus, press the [MENU] button.  To access the offset menus, long-press the [ENTER] button.  Navigate the offset menus, using the [ENTER], [ UP] and [ DOWN] buttons.  To select a menu option or to confirm a selection, press the [ENTER] button. ...
  • Page 24 Select Red, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER. To exit the offset menu, press MENU, or wait 30 seconds. Green Select Green, press ENTER. Use UP/DOWN button to select a value between 0 and 255, confirm your selection with ENTER.

  • Page 25: 06/ Configuring The Device For Dmx Control

    06/ Configuring the Device for DMX Control 6.1 DMX512 Connection 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 26: Address Setting

    6.2 Address Setting All fixtures should be given a DMX starting address when operating with a DMX controller, in order to ensure that the correct fixture responds to the correct control signal. Incorrect settings will result in unpredictable responses from the lighting controller. You can set the same starting address for all fixtures or a group of fixtures, or set different addresses for each individual fixture.

  • Page 27: Dmx Protocol

    6.3 DMX Protocol CHANNEL VALUE FUNCTION 11ch 000-255 0%100% GREEN 000-255 0%100% BLUE 000-255 0%100% LIME 000-255 0%100% STROBE 000-007 Close 008-015 Open 016-131 Strobe from Slow to Fast 132-139 Open 140-181 Fast Open Slow Close from Slow to Fast 182-189 Open 190-231...
  • Page 28 077-081 6300K 082-085 6200K 086-090 6100K 091-094 6000K 095-099 5900K 100-103 5800K 104-108 5700K 109-112 5600K 113-117 5500K 118-121 5400K 122-126 5300K 127-130 5200K 131-135 5100K 136-139 5000K 140-144 4900K 145-148 4800K 149-153 4700K 154-157 4600K 158-162 4500K 163-166 4400K 167-171 4300K 172-175...
  • Page 29 024-026 LEE 181-Congo Blue 027-029 LEE 071-Tokyo Blue 030-032 LEE 120-Deep Blue 033-035 LEE 079-Just Blue 036-038 LEE 132-Medium Blue 039-041 LEE 200-Double CT Blue 042-044 LEE 161-State Blue 045-047 LEE 201-Full CT Blue 048-050 LEE 202-Half CT Blue 051-053 LEE 117-Steel Blue 054-056 LEE 353-Lighter Blue...

  • Page 30: 07/ Error Information

    110-119 Led Frequency Setting Disable 120-122 Null 900Hz 1000Hz 1100Hz 1200Hz 1300Hz 1400Hz 1500Hz 2500Hz 4000Hz 5000Hz 6000Hz 10000Hz 15000Hz 20000Hz 25000Hz 138-139 Null 140-209 Null 210-219 Dimmer Speed: Fast 220-229 Dimmer Speed: Smooth 230-255 Null 07/ Error Information Error codes are shown continuously in the display when the fixture fails and they will not disappear until the fixture is repaired.

  • Page 31: 08/ Troubleshooting

    08/ Troubleshooting Problem Potential cause(s) Remedies Confirm that the power is switched No power to the fixture. Fixture does not respond on and cables are plugged in. or appears to be off. No output from PSU. Replace the PSU. Fixture suddenly turned Check the power supply, switches Power was turned off.

  • Page 32: 09/ Fixture Cleaning

    09/ Fixture Cleaning Regular cleaning is very important for fixture life and performance. Buildup of dust, dirt, smoke particles, fog fluid residues, etc. degrades the fixture’s light output and cooling ability. Cleaning schedules for lighting fixtures vary greatly depending on the operating environment. It is therefore impossible to specify precise cleaning intervals for the fixture.

  • Page 33: 10/ Approvals And Certifications

    10/ Approvals and Certifications This product has been tested and found to comply with the following standards: - 2014/30/EU - Electromagnetic Compatibility (EMC) - 2014/35/EU - Low Voltage Directive (LVD) - cETLus Approved (Control #5000057) - UK SI 2016 No. 1091: Electromagnetic Compatibility Regulations 2016 - UK SI 2016 No.
