Instructions

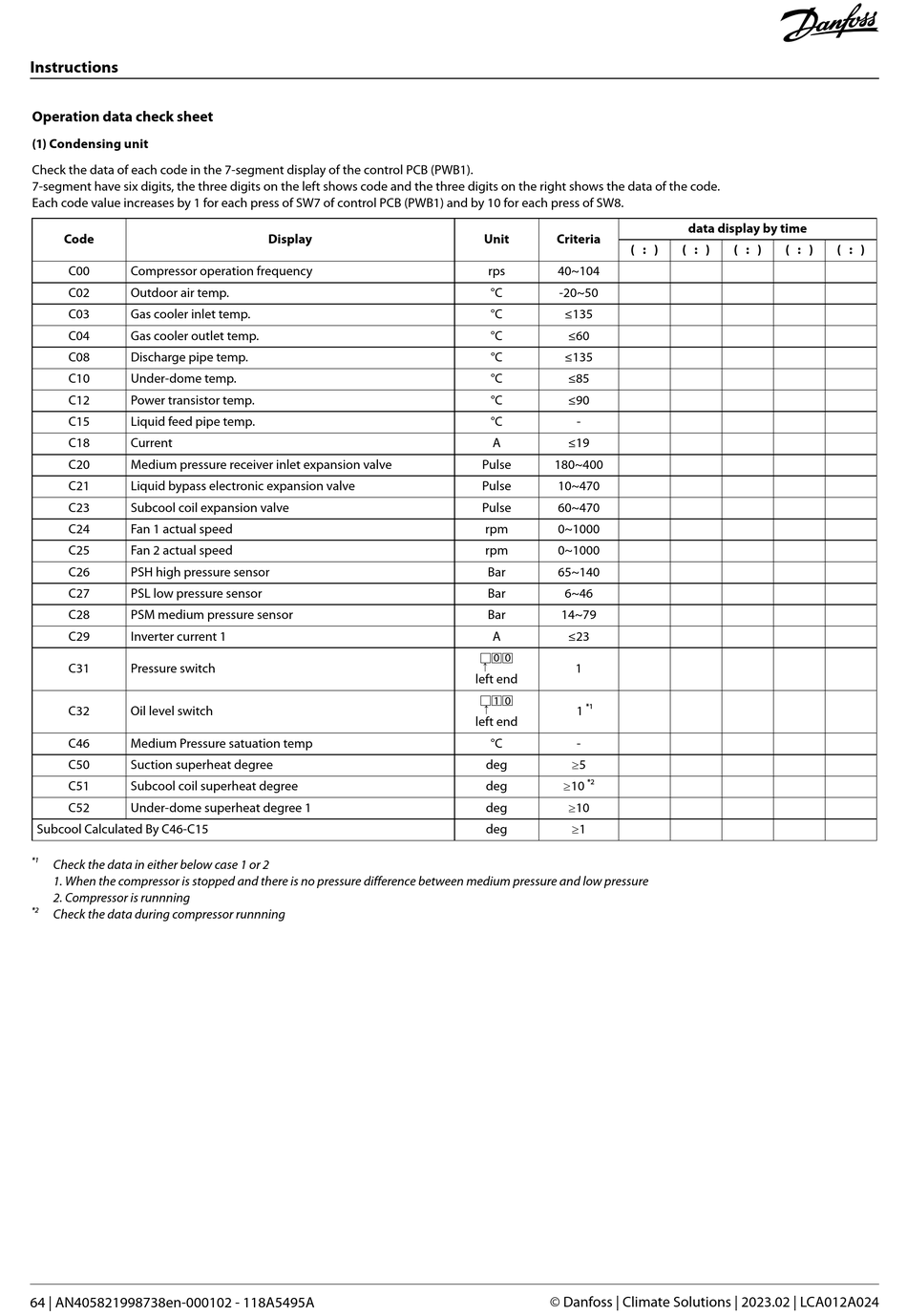

Operation data check sheet
(1) Condensing unit
Check the data of each code in the 7-segment display of the control PCB (PWB1).
7-segment have six digits, the three digits on the left shows code and the three digits on the right shows the data of the code.
Each code value increases by 1 for each press of SW7 of control PCB (PWB1) and by 10 for each press of SW8.
Code
C00 Compressor operation frequency
C02 Outdoor air temp.
C03 Gas cooler inlet temp.
C04 Gas cooler outlet temp.
C08 Discharge pipe temp.
C10 Under-dome temp.
C12 Power transistor temp.
C15 Liquid feed pipe temp.
C18 Current
C20 Medium pressure receiver inlet expansion valve
C21 Liquid bypass electronic expansion valve
C23 Subcool coil expansion valve
C24 Fan 1 actual speed
C25 Fan 2 actual speed
C26 PSH high pressure sensor
C27 PSL low pressure sensor
C28 PSM medium pressure sensor
C29 Inverter current 1
C31 Pressure switch
C32 Oil level switch
C46 Medium Pressure satuation temp
C50 Suction superheat degree
C51 Subcool coil superheat degree
C52 Under-dome superheat degree 1
Subcool Calculated By C46-C15
*1
Check the data in either below case 1 or 2
1. When the compressor is stopped and there is no pressure difference between medium pressure and low pressure
2. Compressor is runnning
*2
Check the data during compressor runnning
64 | AN405821998738en-000102 - 118A5495A
Display Unit Criteria
( : )
rps 40~104
°C -20~50
°C ≤135
°C ≤60
°C ≤135
°C ≤85
°C ≤90
°C -
A ≤19
Pulse 180~400
Pulse 10~470
Pulse 60~470
rpm 0~1000
rpm 0~1000
Bar 65~140
Bar 6~46
Bar 14~79
A ≤23
0 0
 
↑
1
left end
1 0
 
↑
*1
1
left end
°C -
deg ≥5
*2
deg ≥10
deg ≥10
deg ≥1
© Danfoss | Climate Solutions | 2023.02 | LCA012A024
data display by time
( : ) ( : ) ( : ) ( : )
