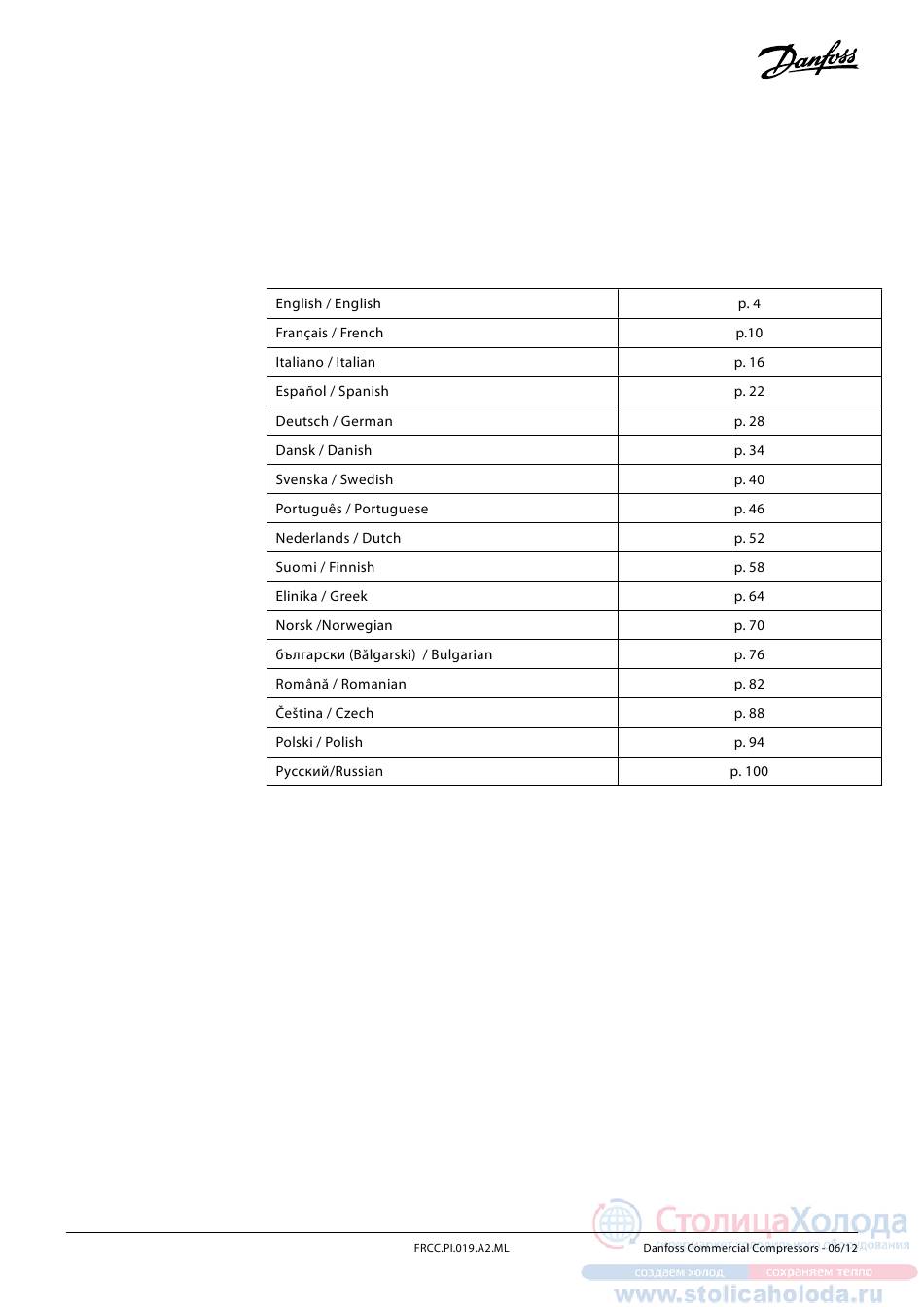

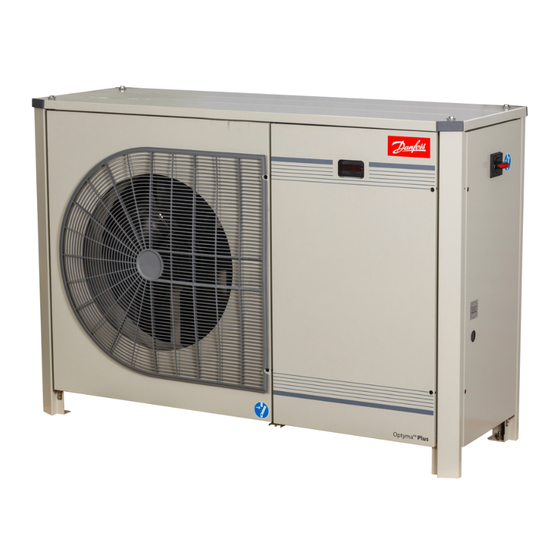

- Page 1 INSTRUCTIONS OPTYMA PLUS CONDENSING UNITS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM...
- Page 2 Instructions OP-LPHM018-026 & OP-MPHM007-010-012-015-018 OP-LPHM048-068 & OP-MPHM026-034 & OP-MPUM034-046 & OP-MPGM034...
- Page 3 Instructions OP-LPHM096-136 & OP-MPUM068-080-107 OP-LPHM215-271 & OP-MPUM125-162 1800 UNIT WIDTH 1702 ISO VIEW TOP VIEW CONTROLLER CABLE ENTRY DISPLAY PORTS SWITCH HEIGHT MCHX TYP. SIGHT SUCTION PORT GLASS 1702 LIQUID PORT MOUNTING C/C MOUNTING C/C Ø12 HOLE FOR RH VIEW BACK VIEW LH VIEW FRONT VIEW...
- Page 4 INSTRUCTIONS OPTYMA PLUS CONDENSING UNITS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 5 Instructions...
- Page 6 Instructions...
- Page 7 Instructions Code G : OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< A1 : B1 : B2 : B3 : B4 : C1 : C3 : F1 : K1 :...
- Page 8 Instructions Code G : OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Code G : OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 9 Instructions Code E : OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Code E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 10 INSTRUCTIONS GROUPES DE CONDENSATION OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 11 Instructions...
- Page 12 Instructions...
- Page 13 Instructions Code G : OP-LPHM018 et OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< A1 : B1 : B2 : B3 : B4 : C1 : C2 : C3 : F1 :...
- Page 14 Instructions Code G : OP-LPHM026-048-068 et OP-MPHM018-026-034 et OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Code G : OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 15 Instructions Code E : OP-LPHM048-068-096-136 et OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Code E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 16 ISTRUZIONI UNITÀ CONDENSATRICI OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 17 Istruzioni...
- Page 18 Istruzioni...
- Page 19 Istruzioni Codice G : OP-LPHM018 e OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply : Fan : Alarm : Comp. : CCH : Aux :...
- Page 20 Istruzioni Codice G : OP-LPHM026-048-068 e OP-MPHM018-026-034 e OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Codice G : OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 21 Istruzioni Codice E: OP-LPHM048-068-096-136 e OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Codice E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 22 INSTRUCCIONES UNIDADES CONDENSADORAS OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM Y OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 23 Instrucciones scroll scroll...
- Page 24 Instrucciones...
- Page 25 Instrucciones Código G: OP-LPHM018 y OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply: Fan: Alarm: Comp.: CCH: Aux:...
- Page 26 Instrucciones Código G: OP-LPHM026-048-068, OP-MPHM018-026-034 y OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Código G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 27 Instrucciones Código E: OP-LPHM048-068-096-136 y OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Code E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 28 INSTRUCTIONS OPTYMA PLUS™ NEUE GENERATION VERFLüSSIGUNGSSäTZE OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 29 Anleitung...
- Page 30 Anleitung...
- Page 31 Anleitung Code G: OP-LPHM018 G & OP-MPHM007-010-012-015 G R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply: Fan: Alarm: Comp: CCH: Aux:...
- Page 32 Anleitung Code G: OP-LPHM026-048-068 G & OP-MPHM018-026-034 G & OP-MPGM034 G R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Code G: OP-MPUM034-046-068-080 G R1 R2 R3 T>...
- Page 33 Anleitung Code E: OP-LPHM048-068-096-136 E & OP-MPUM034-046-068-080-107 E R1 R2 R3 T> I > I > I > Display Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Code E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 34 INSTRUKTION OPTYMA PLUS™ KONDENSERINGSAGGREGATER OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1) LP(2)
- Page 35 Vejledning...
- Page 36 Vejledning...
- Page 37 Vejledning Kode G: OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply : Fan : Alarm : Comp. : CCH : Aux :...
- Page 38 Vejledning Kode G: OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Kode G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 39 Vejledning Kode E: OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Kode E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 40 INSTRUKTIONER OPTYMA PLUS LUFTKYLDA AGGREGAT OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 41 Instruktioner...
- Page 42 Instruktioner...
- Page 43 Instruktioner Kod G: OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< X1 : Supply : Fan : Alarm : Comp. : CCH : Aux :...
- Page 44 Instruktioner Kod G: OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Tillförsel Fläkt 230Vac 230Vac Larm Komp. Fläkt 230Vac P> P< Kod G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 45 Instruktioner Kod E: OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Tillförsel Fläkt 230Vac 230Vac Larm Komp. Fläkt L1 L2 L2 230Vac P> P< Kod E: OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 46 INSTRUÇÕES UNIDADES DE CONDENSAÇÃO OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 47 Instruções...
- Page 48 Instruções...
- Page 49 Instruções Código G : OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< B1 : B2 : B3 : A1 : C1 : C2 : C3 : B4 : K1 :...
- Page 50 Instruções Código G : OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Código G : OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 51 Instruções Código E : OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Código E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 52 INSTRUCTIES OPTYMA PLUS NEW GENERATION Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1) LP(2) Serial No.
- Page 53 Instructies...
- Page 54 Instructies...
- Page 55 Instructies Code G: OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply : Fan : Alarm: Comp. : CCH: Aux:...
- Page 56 Instructies Code G: OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Code G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 57 Instructies Code E: OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Code E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 58 OHJEET OPTYMA PLUS -KONEIKOT OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1) LP(2)
- Page 59 Ohjeet...
- Page 60 Ohjeet...
- Page 61 Ohjeet Koodi G: OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply: Fan: Alarm: Comp. : CCH: Aux:...
- Page 62 Ohjeet Koodi G: OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Koodi G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 63 Ohjeet Koodi E: OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Koodi E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 64 ΟΔΗΓΙΕΣ ΜΟΝΑΔΕΣ ΣΥΜΠΥΚΝΩΣΗΣ OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 65 Οδηγίες...
- Page 66 Οδηγίες...
- Page 67 Οδηγίες Κωδικός G : OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< B1 : B2 : B3 : A1 : C1 : C2 : C3 : B4 : K1 :...
- Page 68 Οδηγίες Κωδικός G : OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Κωδικός G : OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 69 Οδηγίες Κωδικός E : OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Κωδικός E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 70 INSTRUKSJONER OPTYMA PLUS™ KONDENSATORER OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1) LP(2)
- Page 71 Instruksjoner...
- Page 72 Instruksjoner...
- Page 73 Instruksjoner Kode G: OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply: Fan: Alarm: Comp. : CCH: Aux:...
- Page 74 Instruksjoner Kode G: OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Kode G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 75 Instruksjoner Kode E: OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> I > I > I > Display Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Kode E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 76 инструкции за компресорно- конДензаторни аГреГати OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 77 инструкции...
- Page 78 инструкции...
- Page 79 инструкции код G: OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply: Fan: Alarm: Comp. : CCH: Aux:...
- Page 80 инструкции код G: OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< код G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 81 инструкции код E: OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< код E: OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I > I > I > 0-10V Optyma Plus Controller Supply...
- Page 82 INSTRUCŢIUNI GRUPURI DE CONDENSARE OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) LP (1)
- Page 83 Instrucţiuni...
- Page 84 Instrucţiuni...
- Page 85 Instrucţiuni Cod G: OP-LPHM018 şi OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Supply: Fan: Alarm: Comp. : CCH: Aux:...
- Page 86 Instrucţiuni Cod G: OP-LPHM026-048-068, OP-MPHM018-026-034 şi OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Cod G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 87 Instrucţiuni Cod E: OP-LPHM048-068-096-136 şi OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Cod E : OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I >...
- Page 88 NÁVOD PRO POUŽITÍ KONDENZAČNÍ JEDNOTKY OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V Frequency (Hz) 50Hz Number of Phases LRA (A) MCC (A) Application Protection IP54 Max Working Pressure (bar) HP(1) 28 HP(2) ř...
- Page 89 Pokyny Ú ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř ň ř ň ř ř ň ř ř ň ň ř ř ň ř ň ř ř ř ř ň ř ř...
- Page 90 Pokyny ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř ň ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř Ú ř ř ř ř ř...
- Page 91 Pokyny ř ř ť ř ř ř ř ň ř ř ř ř ř ň ř ř ř ř ř ř ř ř ř ř ř ř ř ř ř Kód G: OP-LPHM018 & OP-MPHM007-010-012-015 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 92 Pokyny Kód G: OP-LPHM026-048-068 & OP-MPHM018-026-034 & OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Kód G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 93 Pokyny Kód E: OP-LPHM048-068-096-136 & OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Kód E: OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I > I > I > 0-10V Optyma Plus Controller Supply...
- Page 94 INSTRUKCJE AGREGATU SKRAPLAJĄCEGO OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G ą ż ż ć łą Code Number 114X4101 Refrigerant (1) R404A R507A (2) R134a ń Voltage (V) 220V-240V Frequency (Hz) 50Hz ż ś ż Number of Phases ę ć LRA (A) MCC (A) ą...
- Page 95 Instrukcje ą ń ć ę ż ą ę ł ś ą ż ć ęż ł ż ł ł ł ł ą łą ć ę ż ą ż ć ń ł ż ś ąż ć ł ś ę ł ł ł ą...
- Page 96 Instrukcje ł ć ł łą ń ą ę ś ą ż ć ł łą ż ć ł ę ć ą łą ć ą ą ę ę ł ż ć łą ł ą ć ć ł ć ść ą ż ś ć...
- Page 97 Instrukcje ą ż ś ś ł ł ę ń ą ł ś ż ś ć ć ę ę ę ę ż ś ą ę ć ś ż ł ę ę ł ł ą łą ą ł ż ć ł ł ą...
- Page 98 Instrukcje Kod G: OP-LPHM026-048-068, OP-MPHM018-026-034 i OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< Kod G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 99 Instrukcje Kod E: OP-LPHM048-068-096-136 i OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< Kod E: OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I > I > I > 0-10V Optyma Plus Controller Supply...
- Page 100 инструкциЯ компрессорно-конДенсаторнЫе аГреГатЫ OPTYMA PLUS OP-LPHM, OP-MPHM, OP-MPUM, OP-MPGM Designation OP-MPHM007NFP00G Code Number 114X4101 ы Refrigerant (1) R404A R507A (2) R134a Voltage (V) 220V-240V ы Frequency (Hz) 50Hz Number of Phases ы LRA (A) ы MCC (A) ы ы Application Protection IP54 Max Working Pressure (bar)
- Page 101 инструкция ы ы ы ы ы ы ы ы ы ы ы ы ы ы ы ы ы ы ы э Ш ы ы Э ы Э ы э ы ы э ы ы ы ы э ы ы ы ы...
- Page 102 инструкция э ы ы ы ы э ы э ы ы э ы ы ы э ы ы ы э ы э э ы ы э ы Ы ы ы ы э э ы ы ы ы ы ы ы Э...
- Page 103 инструкция ы ы ы ы ы ы ы ы ы э ы ы ы ы ы ы ы ы ы ы ы э ы ы э ы ы ы ы ы ы ы э ы ы ы ы код G: OP-LPHM018 и OP-MPHM007-010-012-015 R1 R2 R3 T>...
- Page 104 инструкция код G: OP-LPHM026-048-068 и OP-MPHM018-026-034 и OP-MPGM034 R1 R2 R3 T> Display Optyma Plus Controller I > I > I > Supply 230Vac 230Vac Alarm Comp. 230Vac P> P< код G: OP-MPUM034-046-068-080 R1 R2 R3 T> Display Optyma Plus Controller I >...
- Page 105 инструкция код е: OP-LPHM048-068-096-136 и OP-MPUM034-046-068-080-107 R1 R2 R3 T> Display I > I > I > Optyma Plus Controller Supply 230Vac 230Vac Alarm Comp. L1 L2 L2 230Vac P> P< код е: OP-LPHM215-271 & OP-MPUM125-162 T> Display 0-10V I > I > I > 0-10V Optyma Plus Controller Supply...
