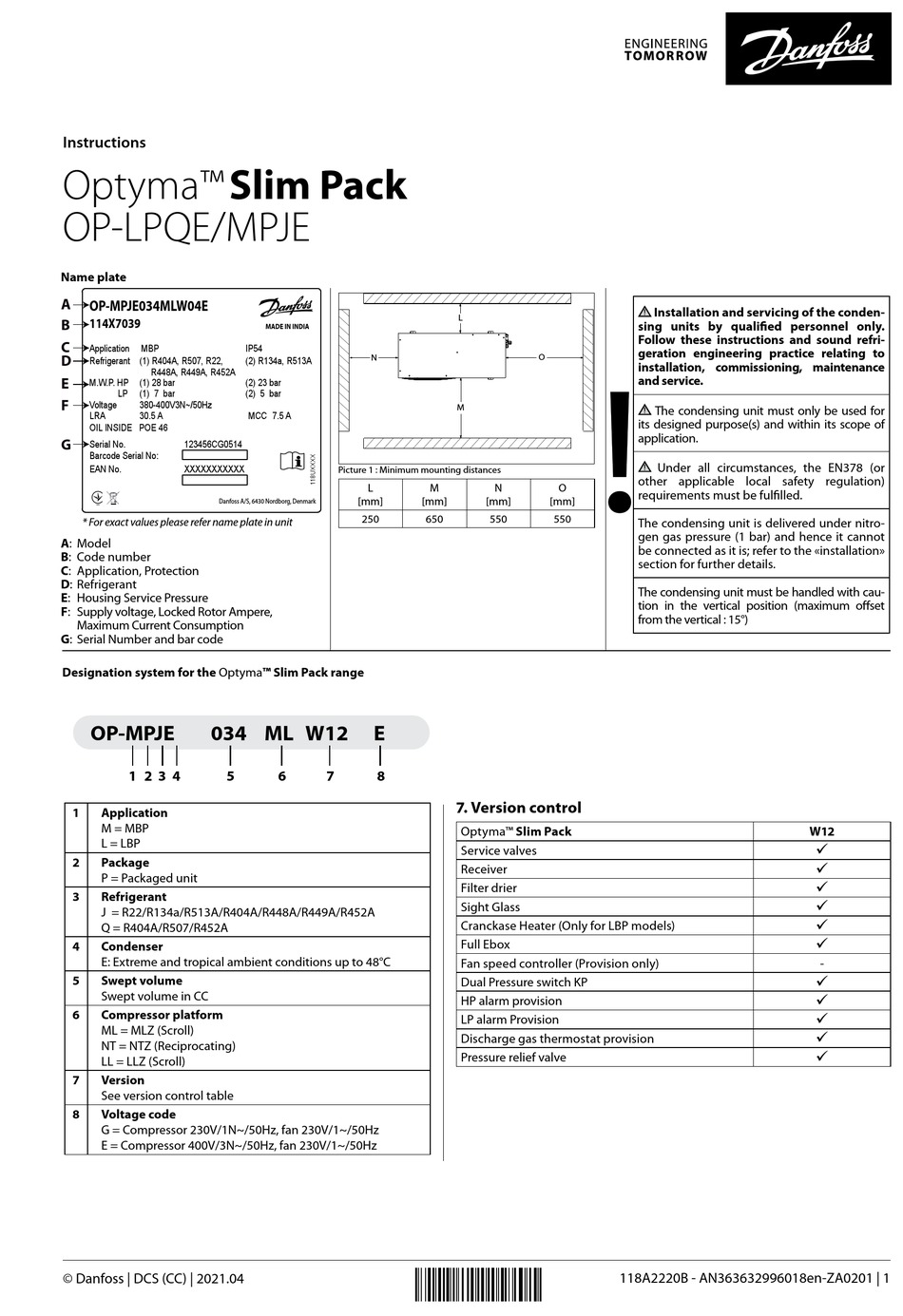

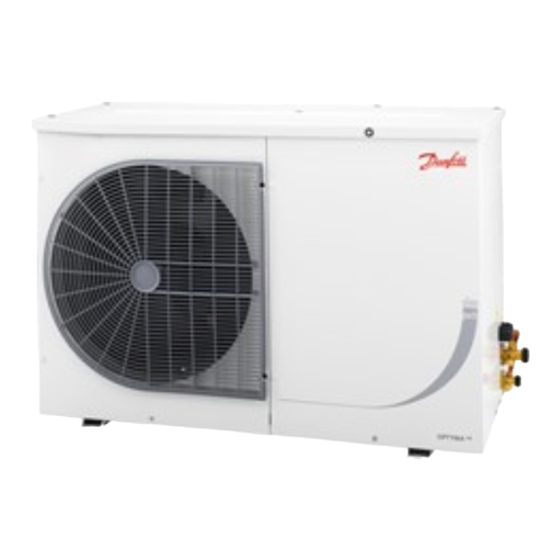

Danfoss Optyma Slim Pack OP-LPQE Series Instructions Manual

Instructions
Optyma™ Slim Pack
OP-LPQE/MPJE
Name plate
A
OP-MPJE034MLW04E
114X7039
B
C
Application MBP
D
Refrigerant (1) R404A, R507, R22,
R448A, R449A, R452A
E
M.W.P. HP (1) 28 bar
LP (1) 7 bar
F
Voltage 380-400V3N~/50Hz
LRA 30.5 A
OIL INSIDE POE 46
G
Serial No. 123456CG0514
Barcode Serial No:
EAN No. XXXXXXXXXXX
Danfoss A/S, 6430 Nordborg, Denmark
* For exact values please refer name plate in unit
A: Model
B: Code number
C: Application, Protection
D: Refrigerant
E: Housing Service Pressure
F: Supply voltage, Locked Rotor Ampere,
Maximum Current Consumption
G: Serial Number and bar code
Designation system for the Optyma™ Slim Pack range
OP-MPJE 034 ML W12
1 2 3 4 5
1 Application
M = MBP
L = LBP
2 Package
P = Packaged unit
3 Refrigerant
J = R22/R134a/R513A/R404A/R448A/R449A/R452A
Q = R404A/R507/R452A
4 Condenser
E: Extreme and tropical ambient conditions up to 48°C
5 Swept volume
Swept volume in CC
6 Compressor platform
ML = MLZ (Scroll)
NT = NTZ (Reciprocating)
LL = LLZ (Scroll)
7 Version
See version control table
8 Voltage code
G = Compressor 230V/1N~/50Hz, fan 230V/1~/50Hz
E = Compressor 400V/3N~/50Hz, fan 230V/1~/50Hz
© Danfoss | DCS (CC) | 2021.04
MADE IN INDIA
IP54
N
(2) R134a, R513A
(2) 23 bar
(2) 5 bar
MCC 7.5 A
Picture 1 : Minimum mounting distances
L
[mm]
250
E
6 7 8

L
O
M
M N O
[mm] [mm] [mm]
650 550 550
7. Version control
Optyma™ Slim Pack
Service valves
Receiver
Filter drier
Sight Glass
Cranckase Heater (Only for LBP models)
Full Ebox
Fan speed controller (Provision only)
Dual Pressure switch KP
HP alarm provision
LP alarm Provision
Discharge gas thermostat provision
Pressure relief valve
Installation and servicing of the conden-
sing units by qualified personnel only.
Follow these instructions and sound refri-
geration engineering practice relating to
installation, commissioning, maintenance
and service.
The condensing unit must only be used for
its designed purpose(s) and within its scope of
application.
Under all circumstances, the EN378 (or
other applicable local safety regulation)
requirements must be fulfilled.
The condensing unit is delivered under nitro-
gen gas pressure (1 bar) and hence it cannot
be connected as it is; refer to the «installation»
section for further details.
The condensing unit must be handled with cau-
tion in the vertical position (maximum offset
from the vertical : 15°)
118A2220B - AN363632996018en-ZA0201 | 1
W12






-





