Condensing unit installation place (Service space)
726
Single unit installation
425
425
F
F
Service space
≥ L2
Wall height ≤ H2
Service space
48 | AN405821998738en-000102 - 118A5495A
IP24
PED Category Ⅱ
PT
HP
PT
LP/MP
RLA
Danfoss A/S, 6430 Nordborg, Denmark
1350
1000
28 X 14
500
Danfoss
764
740
Wall height ≤ H3
≥ L4
Wall height ≤ H4

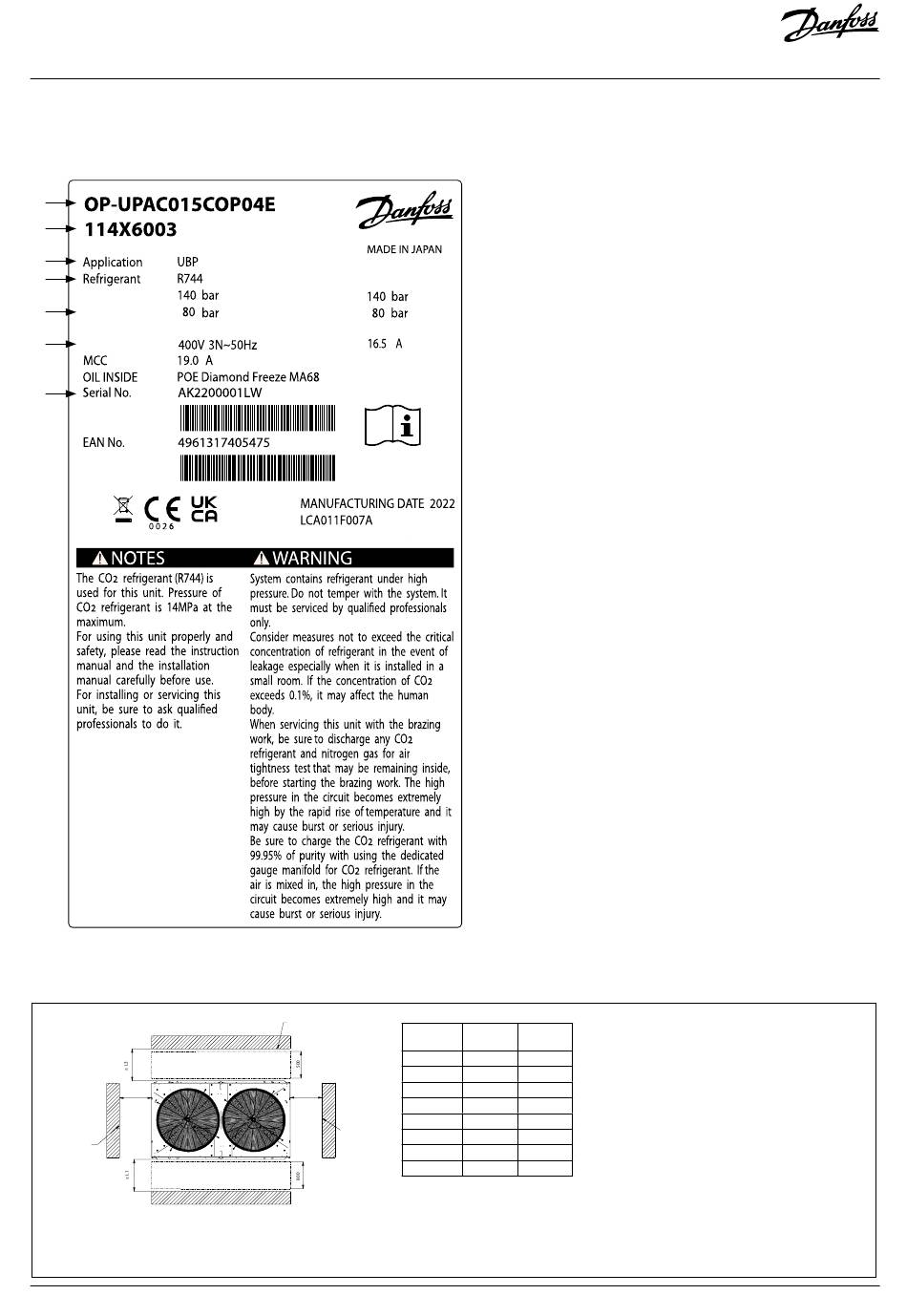

A: Model
B: Code number
C: Application, Protection
D: Refrigerant
E: Housing Service Pressure (Maximum working pressure)
F: Supply voltage, Rated Load Ampere, Maximum Continuous Current
G: Serial Number and bar code
Installation
I
II
Example
L1
800
800
L2
10
10
L3
800
800
L4
100(*)
500
H1
1500
1500
H2
Not limited Not limited
H3
1000
1000
H4
Not limited Not limited
© Danfoss | Climate Solutions | 2023.02 | LCA012A024
(*) A ser vice space of 800mm minimum is
necessary if installed in series. More than 800
mm is nice to have to inspect or replace parts of
the condensing unit.
Take care not to interfere with the service space
during piping work. Where the necessary space
is not available, install a stand to run the piping
under the unit.
(*1) Be sure to keep more than 100mm spaces
when the unit contacts with a wall. If the unit
installed in succession, 10mm spaces is enough.
(*2) A space of 330mm is necessary when the
power cable is taken in from L2 side, where
units are installed in series.
