Summary of Contents for Danfoss Optyma Trio Series

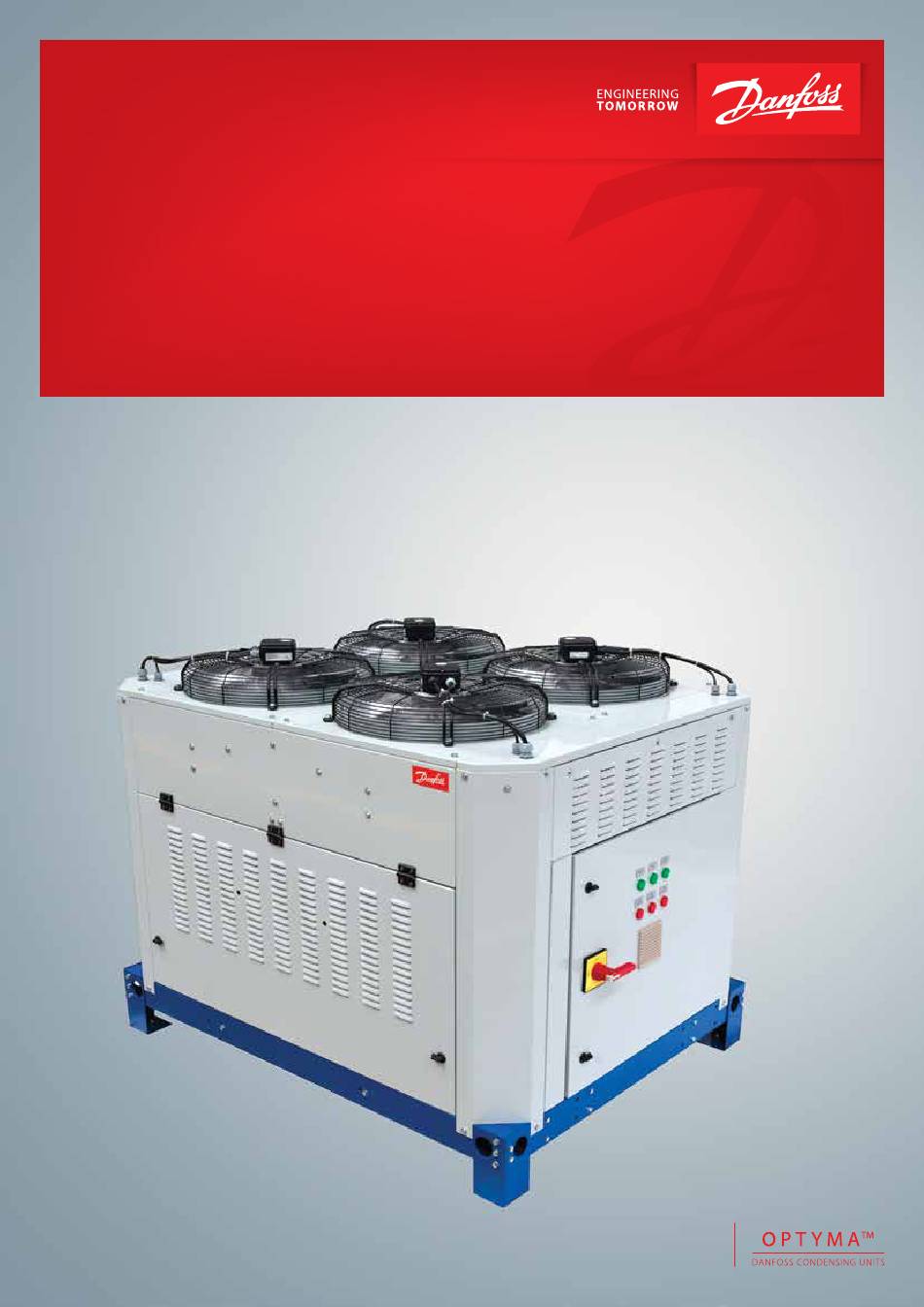

- Page 1 Application Guide Trio Optyma ™ http://RA.danfoss.com.br...
-
Page 3: Table Of Contents
4.6 Electrical Installation ..............................14 4.7 Refrigerant and oil charge ............................15 4.8 Verification before operating ..........................15 4.9 First start-up .................................15 4.10 Verification of the unit while operating ......................15 Maintenance ........................16 Spare parts .......................... 17 Warranty ..........................18 Danfoss Guideline ......................19 FRCC.PC.053.A1.02... -
Page 4: Introduction
“Optyma TRIO” condensing units. This product in parallel compressor systems exist, the is a Danfoss technology solution with the use of more important benefits are the use of less three in parallel connected scroll compressors equipment, flexibility on the capacity control,... -
Page 5: Application Envelope Of The Condensing Units For R404A / R507
Application Guide General Information 2.1 Application envelope of the Condensing Units for R404A / R507 Figure 1 Figure 2 T evap (°C) T evap (°C) 2.2 Applications This unit is intended for diverse applications, • Distribution centers for freezing and food such as: preservation;... -
Page 6: Illustrative Image

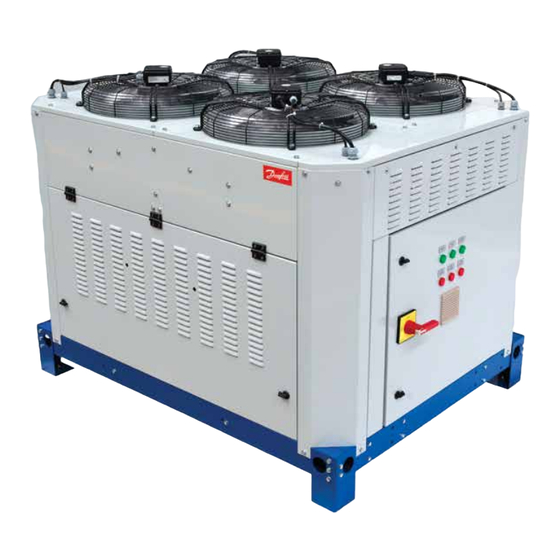

Application Guide Specifications 3.1 Illustrative Image Figure 3 Components 11 - Sight glass 1 - Fan 12 - Suction filters and liquid line 2 - Micro-channel type condenser 13 - High and low security pressure switch 3 - Electronic oil level control valve 14 - Fan’s control pressure switch 4 - Scroll Compressors 15 - Suction accumulator... -
Page 7: Nomenclature
Application Guide Specifications 3.2 Nomenclature 3.2.1 Code and model Nomenclature for the Optyma™ Trio line 5100 L - Low evaporating temperature H - High and medium evaporating temperature Application U - R404A / R507 Z - R404A / R507 Coolant gas 51(00) - 51000 Kcal/h for HBP/MBP Compressors’... - Page 8 Application Guide Specifications 3.2.2 Label Figure 4 A: Model B: Code Model: C: Serial number and Bar code D: Compressors Information Code: E: Fans Information F: HP pressure test Serial: G: LP pressure test H: Apparent power Apparent P. I: Active power Fan (4): Active P.
-
Page 9: Performance Data
Application Guide Specifications 3.3 Performance data HBP R404A/R507 60Hz Cooling capacity in (Kcal/h) - Evaporating temperature in (°C) Condensing Unit Model Electrical Code Code C.R. P.C. C.R. P.C. C.R. P.C. C.R. P.C. C.R. P.C. C.R. P.C. C.R. P.C. 13910 14.24 17270 14.51 20990... -
Page 10: General Data
Application Guide Specifications 3.2 General Data 60Hz Condensing Unit Compressor Condenser Connection Weight Sound level HU2900D50Q 115F0555 MLZ038T2 121U8599 3 17.0 1.6 500 4 13200 N8 1.51 x 2 1 5/8 1 1/8 HU2900D50V 115F0556 MLZ038T9 121U8591 HU3500D50Q 115F0557 MLZ045T2 121U8601 3 20.7 1.6 500 4 13200 N8 1.51 x 2 1 5/8... -
Page 11: Dimensional Data
Application Guide Specifications 3.6 Dimensional Data Dimensions (mm) Connections Condensing Unit Without packaging With packaging Liquid Line Liquid Line HU2900D50Q 1184 1530 1290 1284 1630 1390 HU2900D50V 1184 1530 1290 1284 1630 1390 HU3500D50Q 1184 1530 1290 1284 1630 1390 HU3500D50V 1184 1530... -
Page 12: Storage And Handling
Application Guide Installation and Operation To guarantee an adequate protection, The next sections will provide necessary it is necessary to observe all emphasized recommendations for the installation and recommendations in this application guide. operation of the Optyma Trio unit, as well as safety data and appropriate use of the product. -
Page 13: Mechanical Installation
Application Guide Installation and Operation 4.3 Mechanical Installation • The installation of the unit must comply with • It is recommended to isolate the suction tubing all the current safety local regulations, under all with insulation thickness that meets the specific circumstances. -
Page 14: Leak Detection
Application Guide Installation and Operation 4.3.1 Fixation Figure 7 Fixation of 4 “vibra-stop” type shock absorbers included on the Danfoss supply for the support on the floor or laying base 4.4 Leak detection • Never pressurize the circuit with oxygen or •... -
Page 15: Refrigerant And Oil Charge
Application Guide Installation and Operation 4.7 Refrigerant and oil • Use individual protection equipment (IPE) Make sure to perform a slow refrigerant charge such as safety glasses and gloves. charge until it reaches 4-5 bar in systems • Never start the compressor under vacuum. with R404A/507. -
Page 16: Maintenance
Application Guide Maintenance • Always switch off the unit with the main switch • The condenser must be verified at least once before removing the fan panel, or any other a year regarding the blockage of the fins by panel of the condensing unit. impurities and must be cleaned if considered •... -
Page 17: Spare Parts
Application Guide Spare parts Condensing Units Accumulator 191U0067 191U0067 191U0067 191U0067 191U0068 191U0068 191U0068 Acoustic Hood Compressor 121U8599 121U8591 121U8601 121U8593 121U8627 121U8621 121U8623 MCHE Condenser 021Z0139 021Z0139 021Z0139 021Z0139 021Z0140 021Z0140 021Z0140 Crankcase Resistance Motor Fan 191U136320 191U136320 191U136320 191U136320 191U135980 191U135980... -
Page 18: Warranty
Application Guide Warranty • Always have the model and serial number of the - Use of an off-specification refrigerant or condensing unit available for any warranty claim. lubricant. • The warranty of the product can be rendered - Any deviation from the recommended void in the following cases: instructions regarding the installation, - Absence of nameplate. -
Page 19: Danfoss Guideline
Application Guide Danfoss Guideline Danfoss recommends that gases, oils and companies in the recycling or disposal of those other components that can adversely affect materials for environment protection. the environment be delivered to dedicated FRCC.PC.053.A1.02... - Page 20 Compressors for light applications of commercial refrigeration Our products can be found in diverse applications, such as rooftops, chillers, residential air conditioning, heat pumps, cold rooms, supermarkets, milk cooling tanks and industrial cooling processes. www.danfoss.com.br © Danfoss | DCS (CC) | 2017.11 FRCC.PC.053.A1.02...
