Installation and User Guide DEVIreg™ Multi

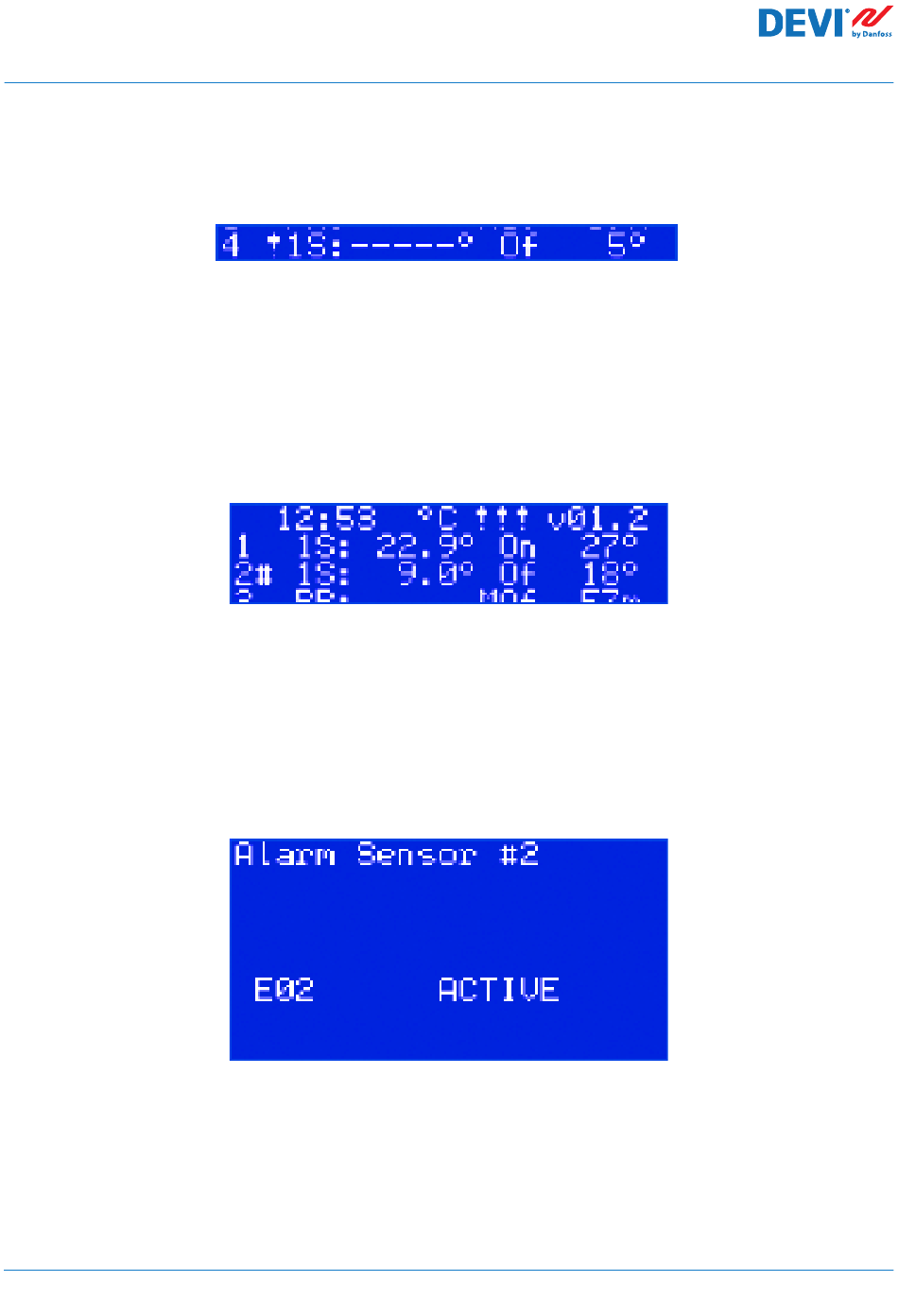

Information about any Alarm happening to any Channel appears in the Channel
line with exclamation symbol – '!' . For example, like on the picture below, when Alarm
information has appeared due to the temperature sensor failure:
NB: Any Alarm type – e.g. sensor failure or CableOK?= No, has the same exclamation symbol
on the screen.
Additionally, any Alarm happening in the controller appears on the Main Screen like
device Alarm with three exclamation symbols – '!!!' – on the 1 line of the Main Screen .
st
Example is shown on the picture below:
NB: if Channel or Device is turned OFF any corresponded Alarm does not appear on the screen.
Detailed information about all Alarms can be found on special Alarm screens by pressing
Escape button on the Main Screen .
Example of Alarm detailed information is shown on the picture below:
If more than one Alarm occurs, it is possible to flip the screens by Up and Down buttons .
