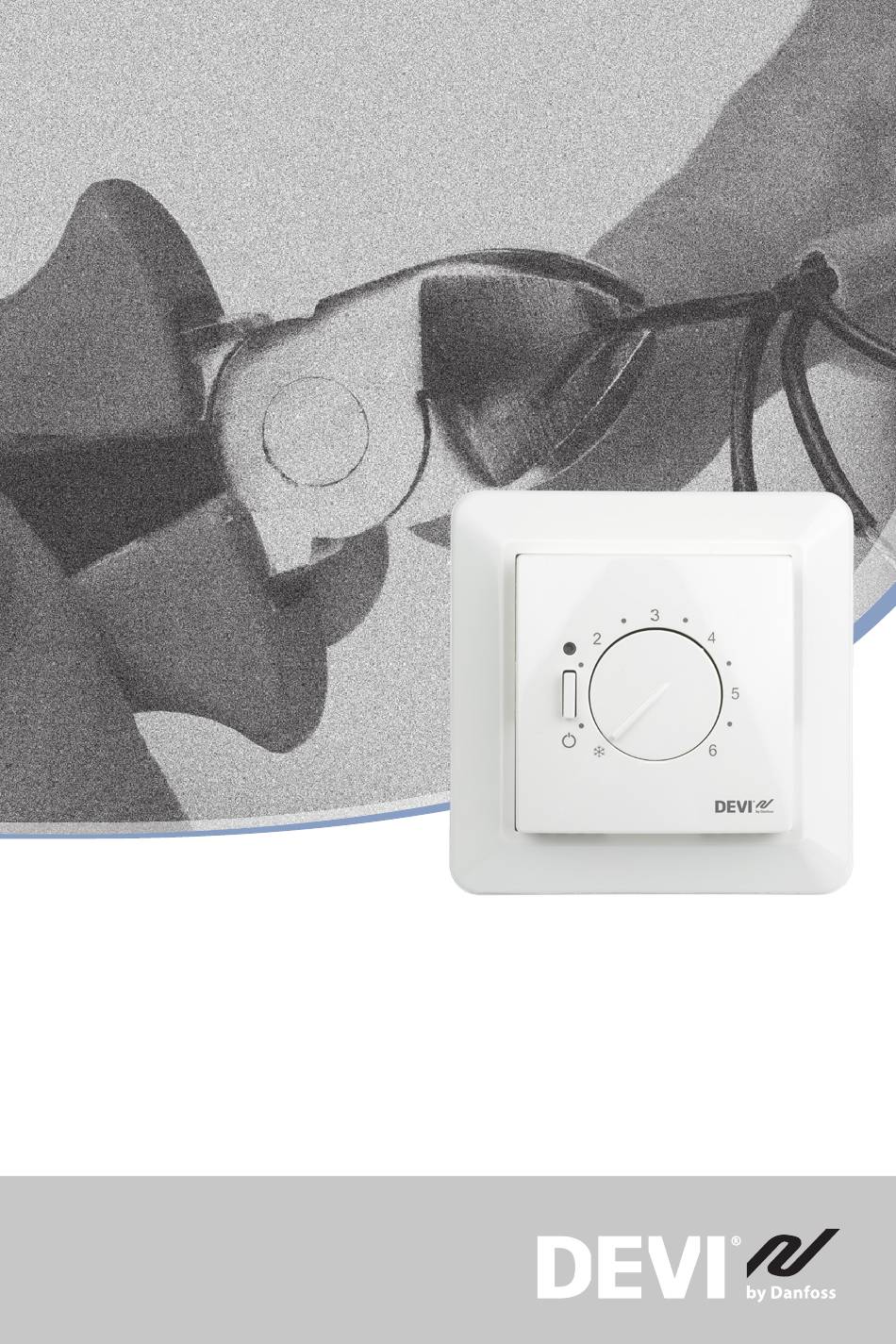

- Page 1 Installation Guide DEVIreg™ 530M Electronic Thermostat www.DEVI.com...
-
Page 2: Table Of Contents
DEVIreg™ 530M Table of Contents Introduction � � � � � � � � � � � � � � � � � � � � � 2 Technical Specifications ... 3 Safety instructions . -
Page 3: Technical Specifications
DEVIreg™ 530M 1�1 Technical Specifications Operation voltage 220-240 V~, 50/60 Hz Standby power consumption Max. 0.25 W Relay: Resistive load Max. 15 A / 3450 W @ 230 V Inductive load cos φ= 0.3 Max. 1 A Sensing units NTC 15 kOhm at 25°C (Default) Sensing values: 0°C 42 kOhm... -
Page 4: Safety Instructions
DEVIreg™ 530M The product complies with the EN/IEC Standard “Automatic electrical controls for household and similar use”: • EN/IEC 60730-1 (general) • EN/IEC 60730-2-9 (thermostat) 1�1 Safety instructions Make sure the mains supply to the thermostat is turned off before installation. Important: When the thermostat is used to control a floor heating element in connection with a wooden floor or similar material, always use a floor sensor and never set the... -
Page 5: Mounting Instructions
DEVIreg™ 530M Mounting instructions Place the thermostat at a suitable height on the wall (typically 80-170cm). The thermostat should not be placed in wet rooms. Place it in an adjacent room. Always place the ther- mostat according to local regulation on IP classes. Note: A floor sensor enables a more accurate temperature control and is recommended in all floor heating applications and mandatory under wooden... - Page 6 • Carefully detach the front cover. • Carefully detach the frame. 2. Connect the thermostat according to the connection diagram. LOAD LOAD Mains Max. Load 220-240V~ 15 (1) A -5°C Danfoss A/S IP31 Ulvehavevej 61 -10T30 7100 Vejle D530M Denmark Installation Guide...
- Page 7 DEVIreg™ 530M By connecting an external timer to the terminal marked by a moon symbol (and by using for example the same phase as for the mains power supply), the thermostat can be set to reduce the temperature by 5ºC during specified periods. The screen of the heating cable must be connected to the earth conductor of the power supply cable by using a separate connector.
-
Page 8: Settings
DEVIreg™ 530M Settings How to change the minimum and maximum floor temperatures 1. Remove the adjustment button. 4. Move the pins to the desired positions. 5. Put the adjustment button back in place. Note: Please be aware of the following: •... - Page 9 DEVIreg™ 530M Thermal Examples of Details Approximate resistance flooring setting for K/W] 25˚C floor temperature 8 mm HDF based 0.05 > 800 kg/m 28°C laminate 14 mm beech 0.10 650 - 800 kg/m 31°C parquet 22 mm solid oak 0.13 >...
-
Page 10: Warranty
All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The DEVIwarranty shall not extend to products which have not been paid in full. - Page 11 DEVIreg™ 530M Installation Guide...
- Page 12 DEVIreg™ 530M Installation Guide...
-
Page 13: Disposal Instruction
DEVIreg™ 530M Disposal Instruction Installation Guide... - Page 14 DEVIreg™ 530M Installation Guide...
- Page 15 DEVIreg™ 530M Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark 08096180 & AN415537660567en-010101 Produced by Danfoss © 05/2022...
