Summary of Contents for Danfoss DEVIreg Basic

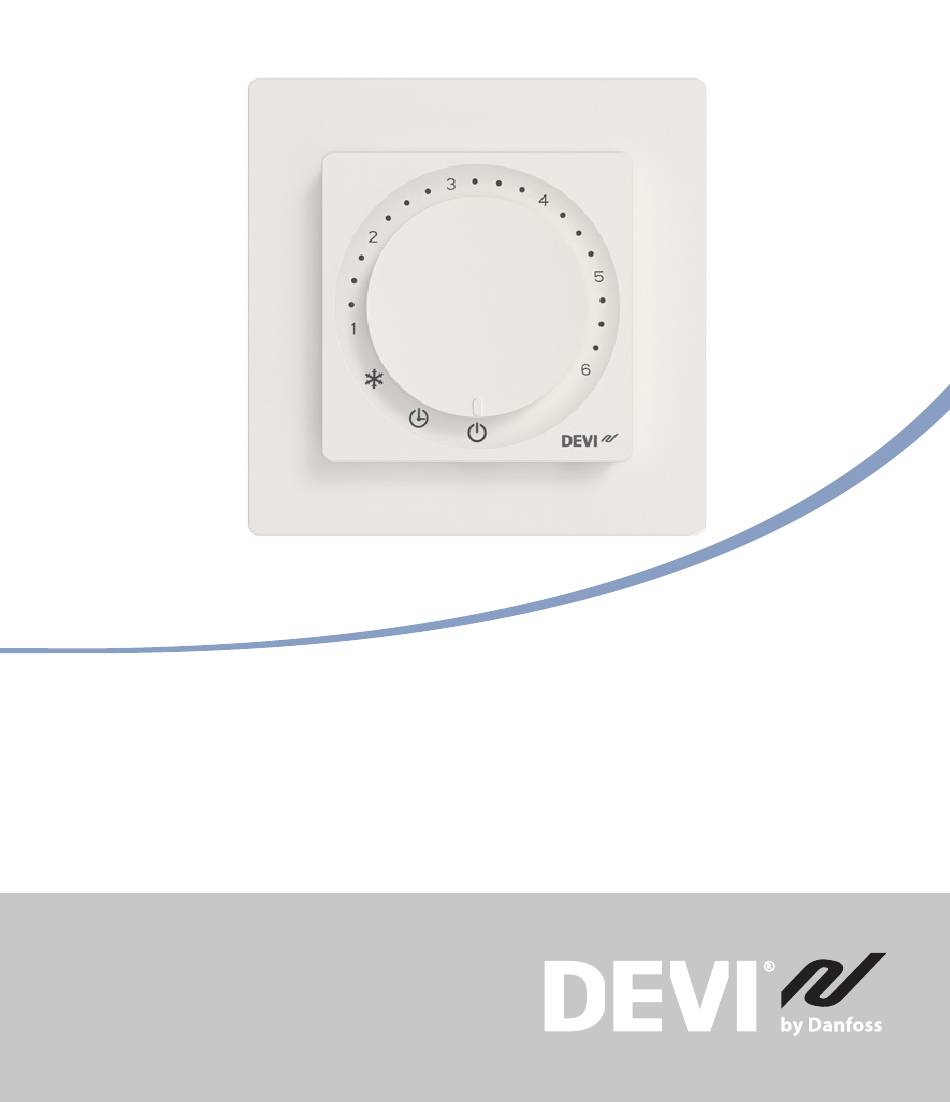

- Page 1 Ръководство за монтаж DEVIreg™ Basic Интелигентен електронен терморегулатор с таймер, Bluetooth връзка и приложение за смартфон/таблет. www.DEVI.com...
-
Page 2: Table Of Contents
DEVIreg™ Basic Table of contents Introduction 4 Standard Compliance 5 Safety instruction 6 Instructional video material . -
Page 3: Introduction

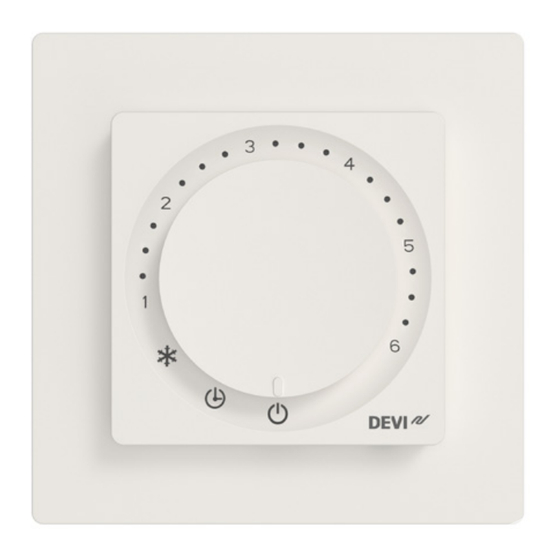

DEVIreg™ Basic Introduction The DEVIreg™ Basic is an electrical floor heating thermostat with adaptive timer support which provides an efficient way to control your electrical floor heating system by floor temperature . The thermostat is special designed for wall mounted installation in standard EU wall mount boxes, in and on wall, and can be used for control of total heating as well as comfort heating of the room . -
Page 4: Standard Compliance
EN 300 328 (Efficient use of radio spectrum for radio equipment operating in the 2,4 GHz band) SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Danfoss A/S declares that the radio equipment DEVIreg™ Basic is in compliance with Directive 2014/53/EU . The full Declaration of conformity can be found on https://assetsdanfoss... -
Page 5: Safety Instruction
DEVIreg™ Basic Safety instruction Make sure that the mains power supply to the thermostat is shut off before starting the installation . Important: When the thermostat is used to control a floor heating element, always use a floor sensor, and never set the maximum floor temperature to more than the manufacturer recommends for the specific flooring type . -
Page 6: Instructional Video Material
DEVIreg™ Basic in a safe way and understand the hazards involved, by a person responsible for their safety . • Children should be supervised to ensure that they do not play with the thermostat/switch . • The device is designed for permanent operation . Instructional video material To make it easy we show the features and functions of the product in videos that are present on our YouTube channel . -
Page 7: Installation Guidelines
DEVIreg™ Basic Installation Guidelines Follow these guidelines when placing the thermostat for optimal user experience of the thermal control . Install the sensor more than 50 cm from window and door openings . The thermostat must not be installed in direct wet areas (Zones 0, 1 and 2) . - Page 8 DEVIreg™ Basic Installation steps Description Illustration 1 . Unpack the thermostat . Make sure all parts are delivered (1 pc . Thermostat unit ,1 pc . Power supply, 1 pc . Frame, and 1 pc . Wire sensor) along with the instructions written in local official language .
- Page 9 DEVIreg™ Basic 3 . The bending radius for the Flexpipe must be more than 50 mm . 4 . Make sure the floor sensor is located with equal distances between two heating cables (> 2 cm) located at a representative position . 5 .
- Page 10 DEVIreg™ Basic 6 . Ensure that the wiring circuit is disconnected and voltage free, turn off the all-pole disconnect . 7 . Connect the wires according to the wiring diagram on back of the power supply of the thermostat . Ensure that the terminals are properly fastened and wires are securely con- nected .
- Page 11 DEVIreg™ Basic 9 . Fasten the thermostat’s power supply to the wall terminal box using screws in minimum 2 of the designated holes on the power supply unit . Notice: place the thermostat according to the - arrow 10 . Attach the frame and the Top frame to the thermostat .
- Page 12 DEVIreg™ Basic 13 . The thermostat is now ready The thermostat does not require for use . any settings to be performed in the app, however this will be required to modify advanced features, schedules and more . 14 . Dismount thermostat front for Perform steps 11 and 10 carefully in replacement .
- Page 13 DEVIreg™ Basic Connection scheme DEVIreg™ Basic Installation Guide...
- Page 14 DEVIreg™ Basic Technical specifications Operating voltage 220-240 V~, 50/60 Hz Power consumption OFF: <175mW Idle: <200mW Contact rating: - Resistive load 230 V ~ 16A/3680 W - Inductive load Cos φ = 0,3 max . 1 A Floor sensor NTC 15 kΩ @ 25°C, 3 m . (default)* Control PWM (Pulse Width Modulation) Temperature control range...
- Page 15 DEVIreg™ Basic Temperature for Ball 75 °C pressure test Storage temperature -25 °C to 60 °C Timer functions 3 periods per day . Resolution of timer is 30 minutes . Dimensions 85 mm x 85 mm x 20-24 mm (in wall depth:22mm) Weight 194 g * standard DEVI sensor 140F1091 3m.
-
Page 16: User Guide
DEVIreg™ Basic User Guide Product interface Temperature adjustment Indicator Timer schedule/App communication Frost protection * When knob is in temp adjustment mode the thermostat will not run the time schedule program. Installation Guide... - Page 17 DEVIreg™ Basic Knob position Description In this position the thermostat is not active . In this position the thermostat is running Timer schedule / in schedule mode . App communication In this position the thermostat is ready for App configuration/modification . In this position the thermostat is operat- Frost protection ing in frost protection mode .
- Page 18 DEVIreg™ Basic Selecting the timer schedule / app communication mode the device will be connectable in the DEVI control app, the communication is done via Bluetooth 4 .2, where temperatures, settings, schedule, limits and more can be set to the desired level . Selecting the OFF mode will disable the thermostat completely .
- Page 19 DEVIreg™ Basic Dial setting Approximate temperature W. Breakout* * Temperatures above are the temperatures that can be expected at the floor sensor location. Do not use breakout with thin heating mats. Indicators The indicators are shine through and are within the knob of the product, these will light up when needed .
- Page 20 DEVIreg™ Basic with the thermostat, heating state change, schedule event, app connec- tion or errors/warnings appearing . This indicator lights up and turns red when Heat indicator • the thermostat switches on and delivers current to the electric heating element . After some seconds the indicator fades out .
- Page 21 DEVIreg™ Basic This indicator lights up white when the built Schedule • in schedule changes from Non active to active and vice versa . After some seconds, the indicator fades out . • The indicator flashes in part of the paring process .
- Page 22 DEVIreg™ Basic Factory reset To perform a factory reset the thermostat needs to be powered and correctly mounted, on the bottom of the device (circled below) is a pin hole, by pressing a needle into this pinhole a button will be activated, after 20-30 seconds of activation of this button the thermostat will perform a factory reset .
- Page 23 DEVIreg™ Basic Breakout To enable the thermostat to go up to a floor temperature of 45°C a permanent modification must be made, this can invalidate your warranty on the product and connected products . The higher maximum temperature limit needs to be set in the app after the action has been performed .
-
Page 24: Devi Control App
DEVIreg™ Basic DEVI Control App: DEVI Control App User Guide: REFERENCE TO APP MANUAL To pair the thermostat with the app, initiate the app and follow the instructions provided in the app . App enabled functions • wizard assisted installation •... - Page 25 DEVIreg™ Basic Warnings and error messages Warning table Warning Description Reference Schedule Set when Schedule is active (Set in App) overwritten due but dial has been turned to set a manual to manual dial setpoint setting If time is totally invalid - less than 2021 or Invalid clock above 2050 or use production date or first time connected to App...
- Page 26 . the temperature is lowered Room sensor Roomtem- Contact Not Applicable disconnected perature installer or for DEVIreg Basic sensor value local Danfoss too low . service Installation Guide...
- Page 27 DEVIreg™ Basic Room sensor Room tem- Contact Not Applicable short- perature installer or for DEVIreg Basic circuited sensor value local Danfoss too high . service Unrecover- Power Contact able error, supply is installer or Power supply detected as local Danfoss...
-
Page 28: Eco Design Sheet
DEVIreg™ Basic Eco Design Sheet To comply with ECO design regulations for electric local space heaters 1188/2015 the following table is to be filled in with the specifics of the heating system. Herein the thermostat information for this specific product is prefilled, please fill any/ all blank slots. - Page 29 DEVIreg™ Basic electronic heat charge control Maximum with room and/ continuous [yes/no] or outdoor max,c heat output temperature feedback Auxiliary fan assisted heat electricity [yes/no] output consumption Type of heat output/ At nominal room temperature control <0,00062 heat output (select one) single stage heat At minimum output and no...
- Page 30 DEVIreg™ Basic with electronic room temperature [no] control electronic room temperature [no] control plus day timer electronic room temperature [yes] control plus week timer Other control options (multiple selections possible) room temperature control, with [no] presence detection room temperature control, with [no] open window detection...
- Page 31 DEVIreg™ Basic with adaptive [yes] start control with working [no] time limitation with black bulb [no] sensor Danfoss A/S, Nordborgvej 81, Contact details 6430 Nordborg, Denmark Installation Guide...
- Page 32 DEVIreg™ Basic Installation Guide...
-
Page 33: Warranty
. The decision to either repair or replace will be solely at the discretion of Danfoss . The decision to either repair or replace will be solely at the discretion of Danfoss . Danfoss shall not be liable for any consequential or incidental Installation Guide... - Page 34 . The DEVIwarranty shall not extend to products which have not been paid in full . Danfoss will, at all times, provide a rapid and effective response to all complaints and inquiries from our customers .
- Page 35 DEVIreg™ Basic Installation Guide...
-
Page 36: Disposal Instruction
DEVIreg™ Basic Disposal instruction This symbol on the product indicates that it may not be disposed of as household waste . It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment . •... - Page 37 DEVIreg™ Basic Installation Guide...
- Page 38 DEVIreg™ Basic Danfoss A/S Nordborgvej 81 6430 Nordborg Denmark 140R0010 | AN461038236053en-010102 Produced by Danfoss © 2023 .10...
