Installation and User Guide DEVIreg™ Multi

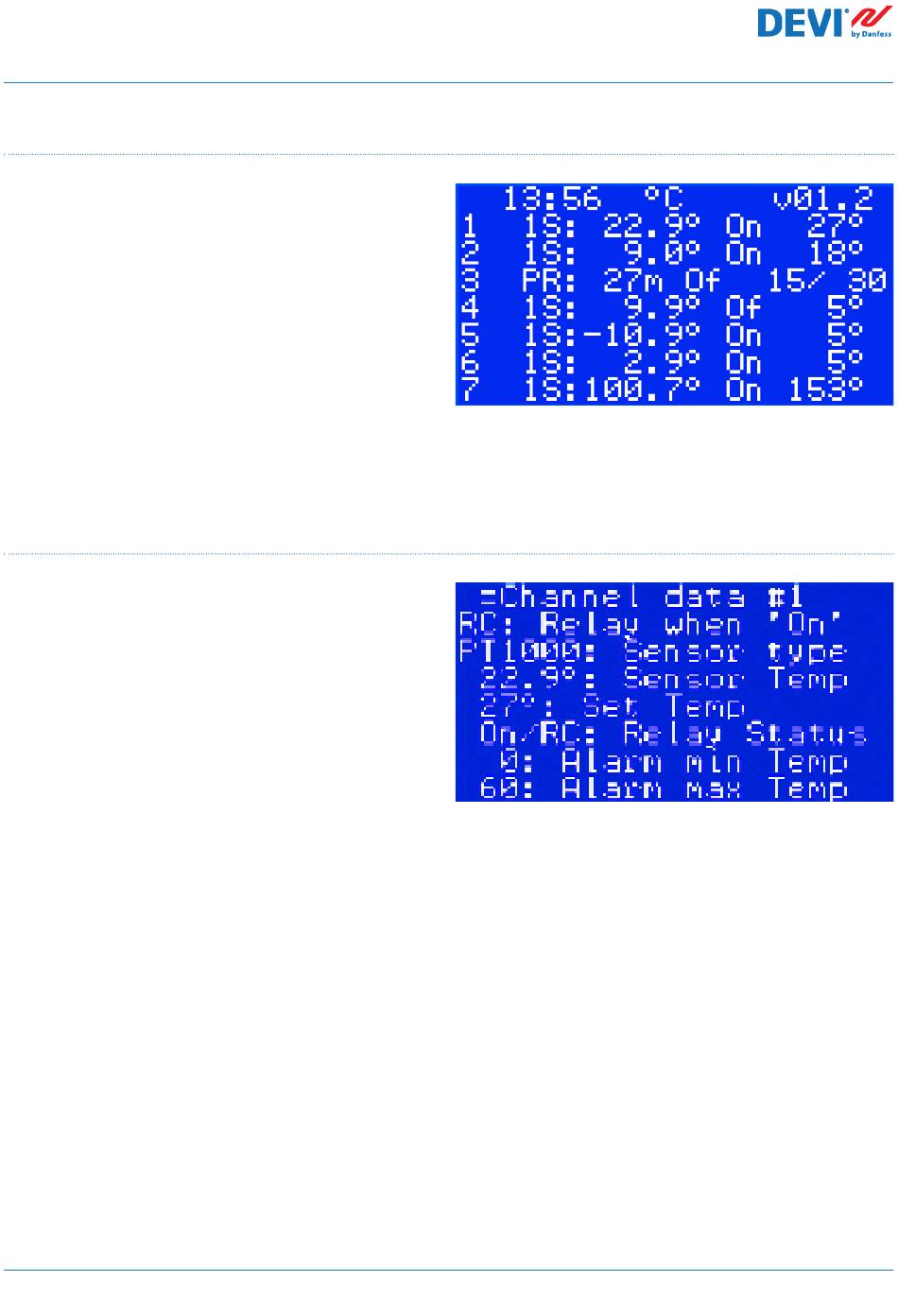

Main Screen view (default)
The Main Screen is the main window
appearing when the controller is powered .
This screen displays the main data of
controller and the status of all Channels at
the same time . The main controller's data
is visible on the 1 display line and the
st
Channel #1 – #7 data are visible on the
lines from 2 to 8 .
This view gives the user an example of all
Channels on one screen .
Main sub-screens view
These screens give to user quick and more
detailed information about settings and
status of each Channel .
Just press button Down on the Main
Screen of controller and Channel data #1
will appear, press Down again – and you'll
see Channel data #2, and so on .
To exit from Main sub-screens view and
return to the Main Screen – press Escape
2 times .
