ClimateMaster Tranquility 30 Series Installation, Operation & Maintenance Instructions Manual
  1. Manuals
  2. Brands
  3. ClimateMaster Manuals
  4. Heat Pump
  5. Tranquility 30 Series
  6. Installation, operation & maintenance instructions manual

ClimateMaster Tranquility 30 Series Installation, Operation & Maintenance Instructions Manual

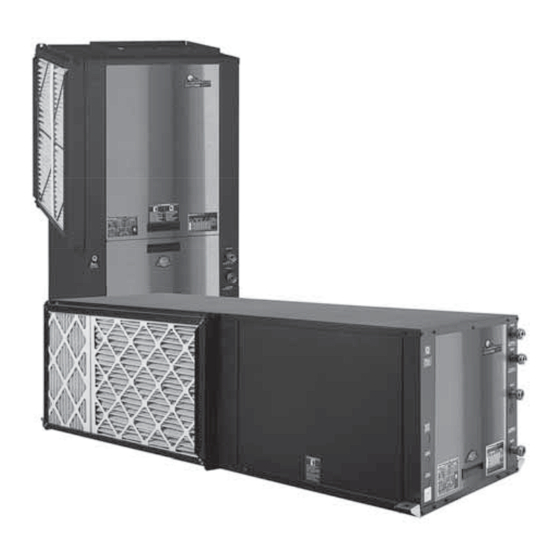

Residential horizontal & vertical packaged geothermal heat pumps
