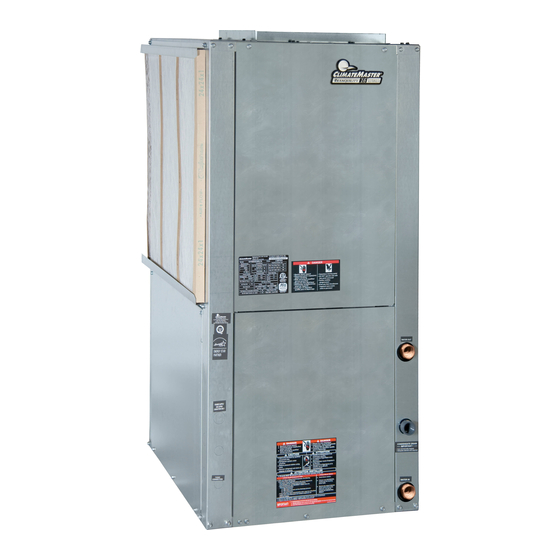

ClimateMaster Tranquility 16 Series Installation Operation & Maintenance

Commercial horizontal & vertical packaged water-source heat pumps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Tranquility
(TC) Series
Commercial Horizontal
& Vertical Packaged
Water-Source Heat Pumps
50H
-HFC-410A
Z
I
NSTALLATION
M
&
AINTENANCE
97B0075N02
Revised: 25 July, 2017
®
16
, O
PERATION

Table of Contents

Model Nomenclature
General Information
Unit Physical Data
Warranty
3
4
6
7
10
11
12
13
16
17
18
20
22
23
24
25
26
27
28
34
35
37
39
40
41
42
44
45
46
47
48
52

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tranquility 16 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ClimateMaster Tranquility 16 Series

Summary of Contents for ClimateMaster Tranquility 16 Series

  • Page 1: Table Of Contents

    Tranquility ® (TC) Series Table of Contents Model Nomenclature General Information Unit Physical Data Horizontal Installation Field Conversion of Air Discharge Horizontal Installation Duct System Installation Vertical Installation Piping Installation Water-Loop Heat Pump Applications Ground-Loop Heat Pump Applications Ground-Water Heat Pump Applications Water Quality Standards Electrical - Line Voltage Electrical - Power Wiring...
  • Page 2 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 3 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 4 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 5 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 6 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 7: Horizontal Installation

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 8 UV based anti-bacterial systems may damage return (e.g. louvered door). Therefore, fi lter rails are the coated air coils. industry standard and are included on ClimateMaster commercial heat pumps for the purposes of holding the fi lter only. For ducted return applications, the fi lter rail must be removed and replaced with a duct fl...
  • Page 9 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 10: Field Conversion Of Air Discharge

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 11: Horizontal Installation

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 12: Duct System Installation

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 13: Vertical Installation

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 14 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 15 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 16: Piping Installation

    Tighten steel fi ttings the structure, causing unnecessary noise complaints. as necessary. Figure 11: Supply/Return Hose Kit Optional pressure-rated hose assemblies designed specifi cally for use with ClimateMaster units are Swivel Brass available. Similar hoses can be obtained from alternate Brass...

  • Page 17: Water-Loop Heat Pump Applications

    2.9 and 4.5 l/m per kW of cooling capacity. is a major portion of the mechanical room plumbing. ClimateMaster recommends 3.9 l/m per kW for most Consideration should be given to insulating the applications of water loop heat pumps. To ensure piping surfaces to avoid condensation.

  • Page 18: Ground-Loop Heat Pump Applications

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 19 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 20: Ground-Water Heat Pump Applications

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 21 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 22: Water Quality Standards

    20 mesh] size. The ClimateMaster Water Quality Table provides water quality requirements for ClimateMaster coaxial heat exchangers. The water should be evaluated by an independent testing facility comparing to this Table and when properties are outside of these requirements, an external secondary heat exchanger must be used to isolate the heat pump heat exchanger from the unsuitable water.

  • Page 23: Electrical - Line Voltage

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 24: Electrical - Power Wiring

    Consult wiring diagram for fi eld connections that must in Figure 17. Most ClimateMaster units are shipped be made by the installing (or electrical) contractor. All on the medium speed tap. Consult submittal data fi...

  • Page 25: Electrical - Power & Low Voltage Wiring

    Medium is factory setting in Figure 20 to change the setting to -12.2°C refrigerant temperature, a more suitable temperature when using an antifreeze solution. All ClimateMaster units operating Fan Motor with entering water temperatures below 15°C must include the optional water/refrigerant circuit insulation package to prevent internal condensation.

  • Page 26: Electrical - Low Voltage Wiring

    21 illustrate typical slow closing water control valve “A” is designed to control accessory devices, such as wiring for Taco 500 series (ClimateMaster P/N AVM) water valves. Note: This terminal should be used only and Taco SBV series valves. Slow closing valves take with 24 Volt signals and not line voltage.

  • Page 27: Electrical - Thermostat Wiring

    Figure 25a to the low voltage terminal strip Figure 23: Taco SBV Valve Wiring on the CXM or DXM control board. Practically any heat pump thermostat will work with ClimateMaster units, provided it has the correct number of heating and cooling stages.

  • Page 28: Typical Wiring Diagrams

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 29 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 30 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 31 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 32 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 33 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 34: Cxm Controls

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 35: Dxm Controls

    FP2 of -1°C or -12°C] (refrigerant temperature). Note: This jumper should only be clipped Table 6b: DXM LED And Alarm Relay Operations under extenuating circumstances, as recommended by ClimateMaster technical Status LED Test LED Fault LED Description of Alarm Relay services.
  • Page 36 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 37: Cxm And Dxm Controls

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 38 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 39: Operating Limits

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 40: Piping System Cleaning And Flushing

    ClimaDry to operate ® properly. Verify that all strainers are in place (ClimateMaster recommends a strainer with a #20 stainless steel wire mesh). Start the pumps, and systematically check each vent to ensure that all air is bled from the system.

  • Page 41: Unit Starting And Operating Conditions

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 42: Unit Start-Up Procedure

    5. Two factors determine the operating limits of HE (kW) = TD x l/s x 4.18, where TD is the ClimateMaster heat pumps, (a) return air temperature, and temperature difference between the entering and (b) water temperature. When any one of these factors is at leaving water, and l/s is the fl...
  • Page 43 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 44: Preventive Maintenance

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 45: Functional Troubleshooting

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 46: Performance Troubleshooting

    C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 47: Functional Troubleshooting - S-I Units

    T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 48 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 49 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 50 C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.
  • Page 51 T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y Tr a n q u i l i t y 1 6 ( T C ) S e r i e s R e v.

  • Page 52: Revision History

    97B0075N02 ClimateMaster works continually to improve its products. As a result, the design and specifi cations of each product at the time for order may be changed without notice and may not be as described herein. Please contact ClimateMaster’s Customer Service Department at +1-405-745-6000 for specifi...
