(2) Stop (relay contact (1))

If the system where this controller is installed has a stop circuit for the whole system, or if the system
has multiple controllers with individual power supply, relay contacts should be made between the
24VDC controller power supply and the EMG terminal of the power supply plug.

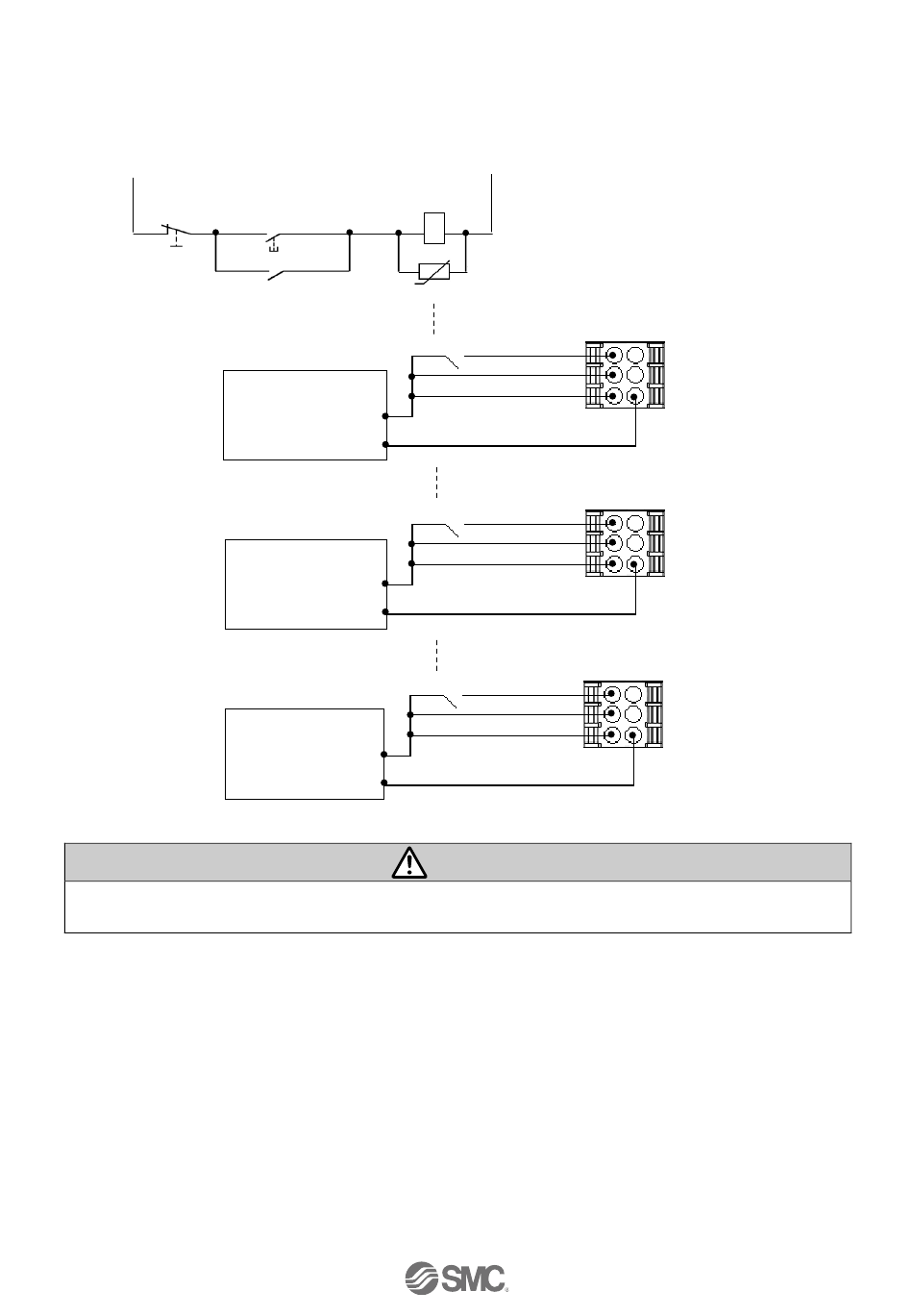

(Circuit example)
24VDC
The stop is
released switch
Stop
Switch
Controller
Input power
Controller
Input power
Controller
Input power
When shutdown is input, the controller stops with maximum deceleration, then the motor is turned
OFF.
Ry: Relay
U
24VDC
supply
0V
24VDC
supply
0V
24VDC
supply
0V
0V
Ry
Surge suppressor
Power supply plug 1
Ry
(3) EMG
(2) M 24V
(1) C 24V
Power supply plug 2
Ry
(3) EMG
(2) M 24V
(1) C 24V
Power supply plug 3
Ry
(3) EMG
(2) M 24V
(1) C 24V
Caution
- 24 -
LK RLS (6)
0V (4)
LK RLS (6)
0V (4)
LK RLS (6)
0V (4)
No.JXC※-OMU0008-E
