(2) Connection with a PC

Controller
Communication cable
SI
When using the LEC-W2, it is necessary
to connect a conversion unit (P5062-5) to
the communication cable.

5.4 IN, OUT: EtherCAT communication connector

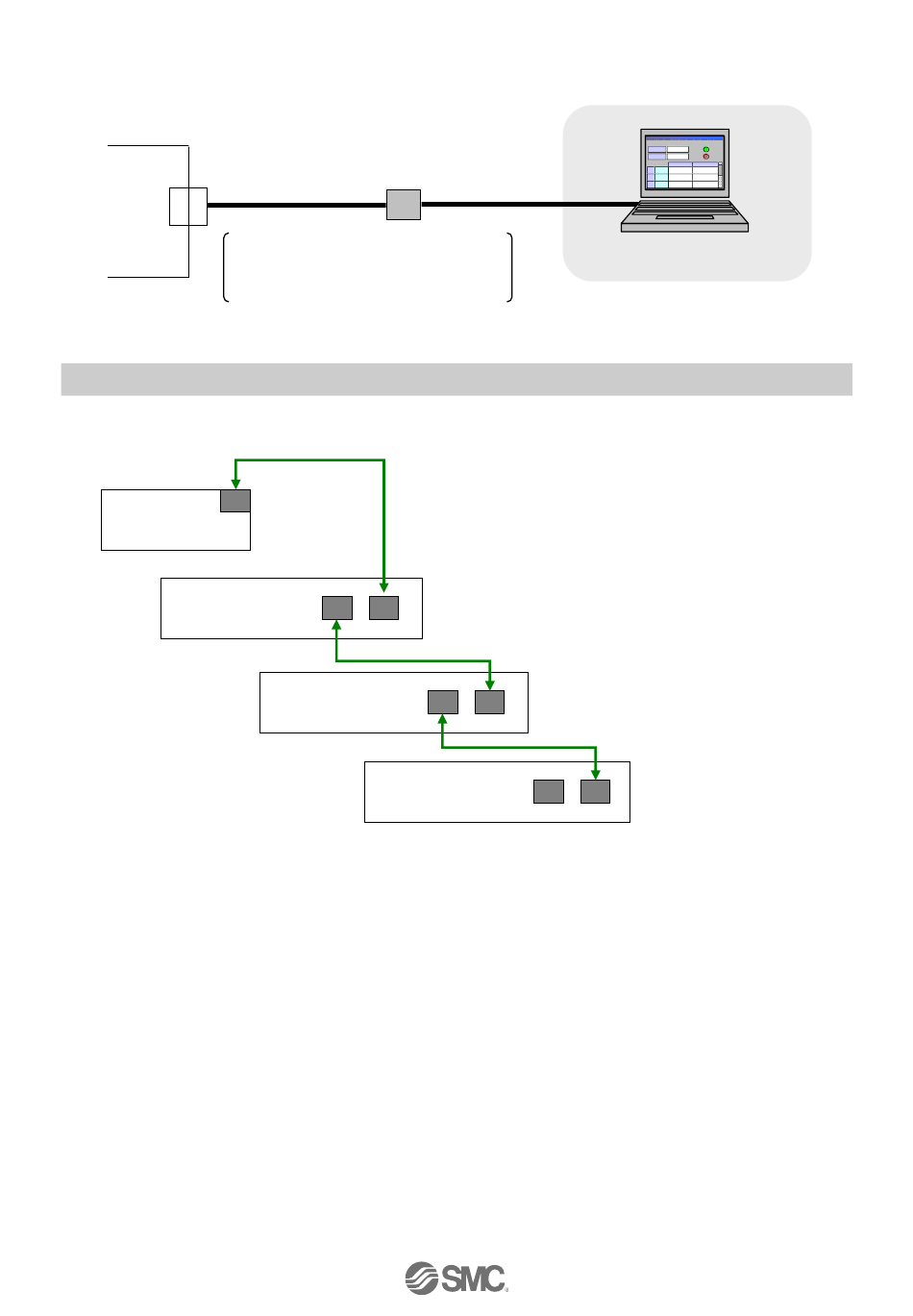

E.g.) Example for a connection of the daisy chain
EtherCAT
Master (PLC)
The standard Ethernet cable with CAT5 or higher and 100BASE-TX and PLC need to be prepared by the
user.
Connect the "IN" connector to the upper side device (PC, PLC, etc.), and connect the "OUT" connector
to the lower side device.
Follow the topology of EtherCAT communication for details.
USB cable
(A-miniB type)
Standard Ethernet cable
(CAT5 or
100BASE-TX)EtherCAT 専
用通信ケーブル
OUT
JXCE1 Controller
IN
OUT
IN
