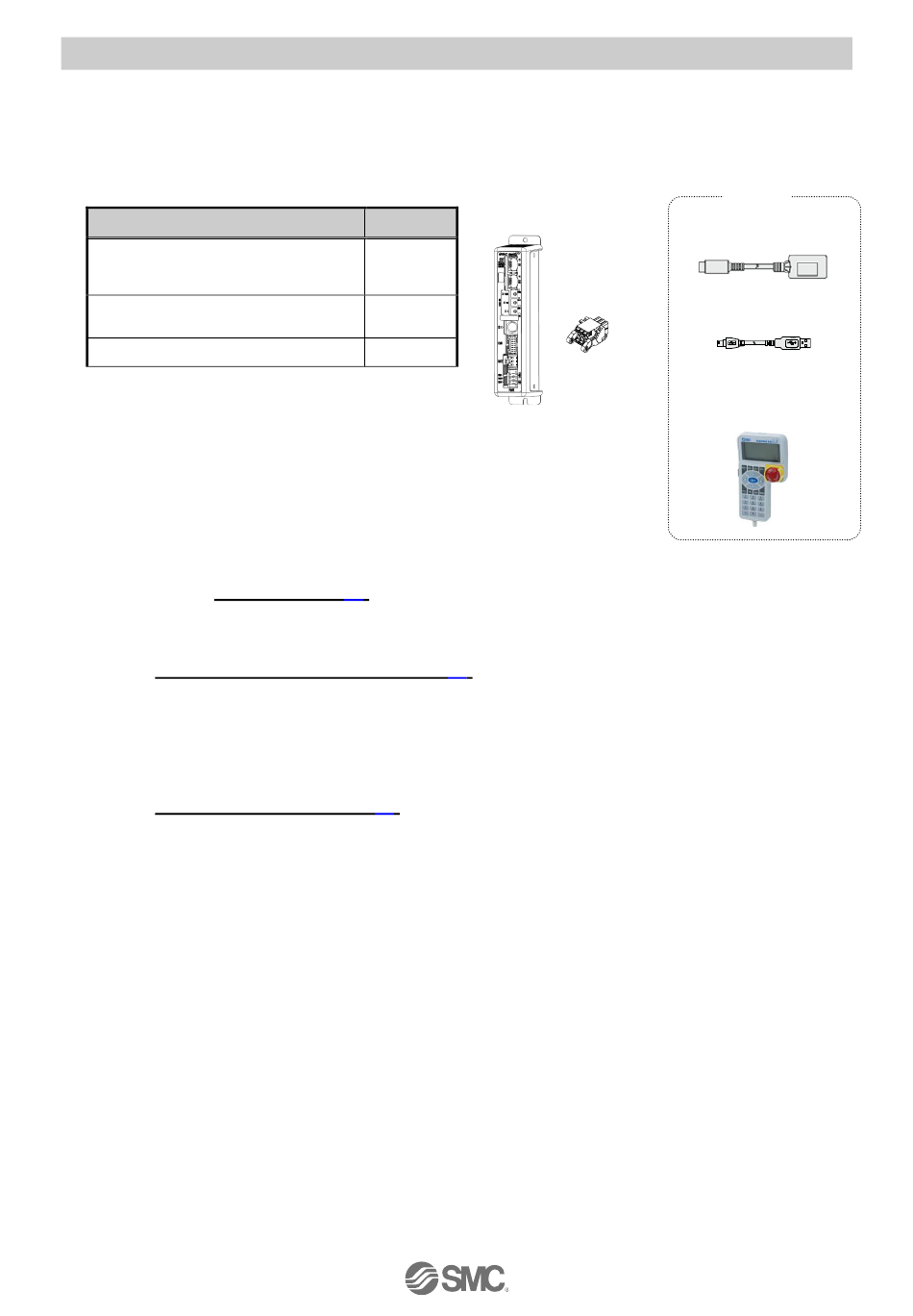

2.4 Start up procedure

Install, wire, set and operate the controller referring to the procedure below when the product is used
for the first time.

(1) Checking the contents of the package

After unpacking everything, check the description on the label to identify the controller and the number
of accessories.
Product name
Controller
(JXCE1□-□)
Power supply plug
(JXC-CPW)
Actuator
 1. These items are included when ordered
using the part number for an actuator set.
[Options]
Controller communication cable(Part No: JXC-W2A-C)
USB cable (Part No: LEC-W2-U)
Teaching box (Part No: LEC-T1-3G)
If any parts are missing or damaged, please contact your distributor.

(2) Mounting the controller

Refer to section 3.4 Mounting (P.16) for instructions on how to mount the controller.

(3) Controller Setting

It is necessary to set the address by the rotary switch of the controller.
Refer to 4.1 Setting of switch (IP address) (P.18)

(4) PLC set up

Set the PLC parameter as a master station.

(5) Wiring and Connection

Connect the cables to the controller.
Refer to 5. External Connections (P.19) for the wiring of the connectors.
Quantity
1 pc.
1 pc.
1
1 pc.
Controller
Power supply plug
(JXC-CPW)
- 9 -
Option
Controller
communication cable
USB cable
Teaching box
(Conversion cable is needed)
No.JXC※-OMU0008-E
