Preparing for Automation

Linking Units with the GPIB Port

Linking Units with the GPIB Port
Your unit is not equipped with a GPIB port, but you can connect a USB to
GPIB adapter (sold by EXFO) to one of the USB ports of your unit if you
wish to send and receive data via GPIB.

Linking Units with the Ethernet Port

Your unit is equipped with Ethernet ports (10/100/1000) to send and receive
data. Refer to the Windows documentation for information about Ethernet
port settings and possibilities.

Linking Units Using a Serial Port

Your unit is not equipped with a serial (RS-232) port, but you can connect a
USB to RS-232 adapter (sold by EXFO) to your one of the USB ports of your
unit if you wish to send and receive data via RS-232. Refer to the Microsoft
Windows documentation for information about serial port settings and
possibilities.
164

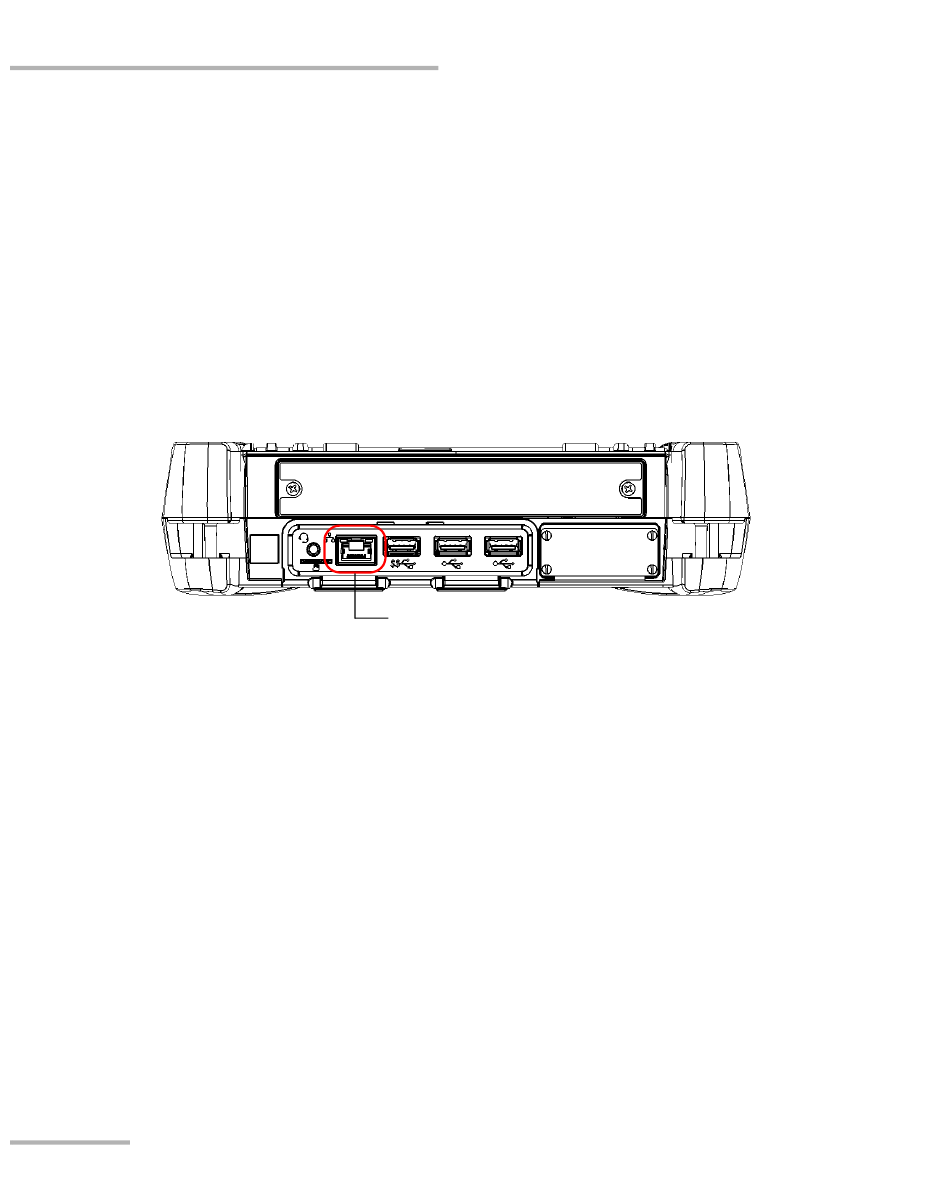

Ethernet (RJ-45) port
LTB-1
