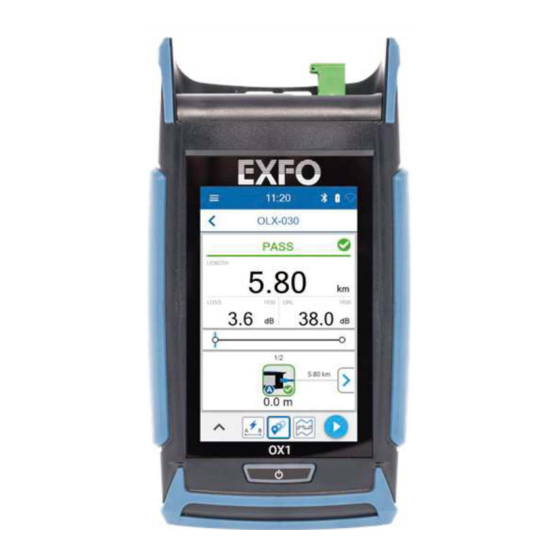

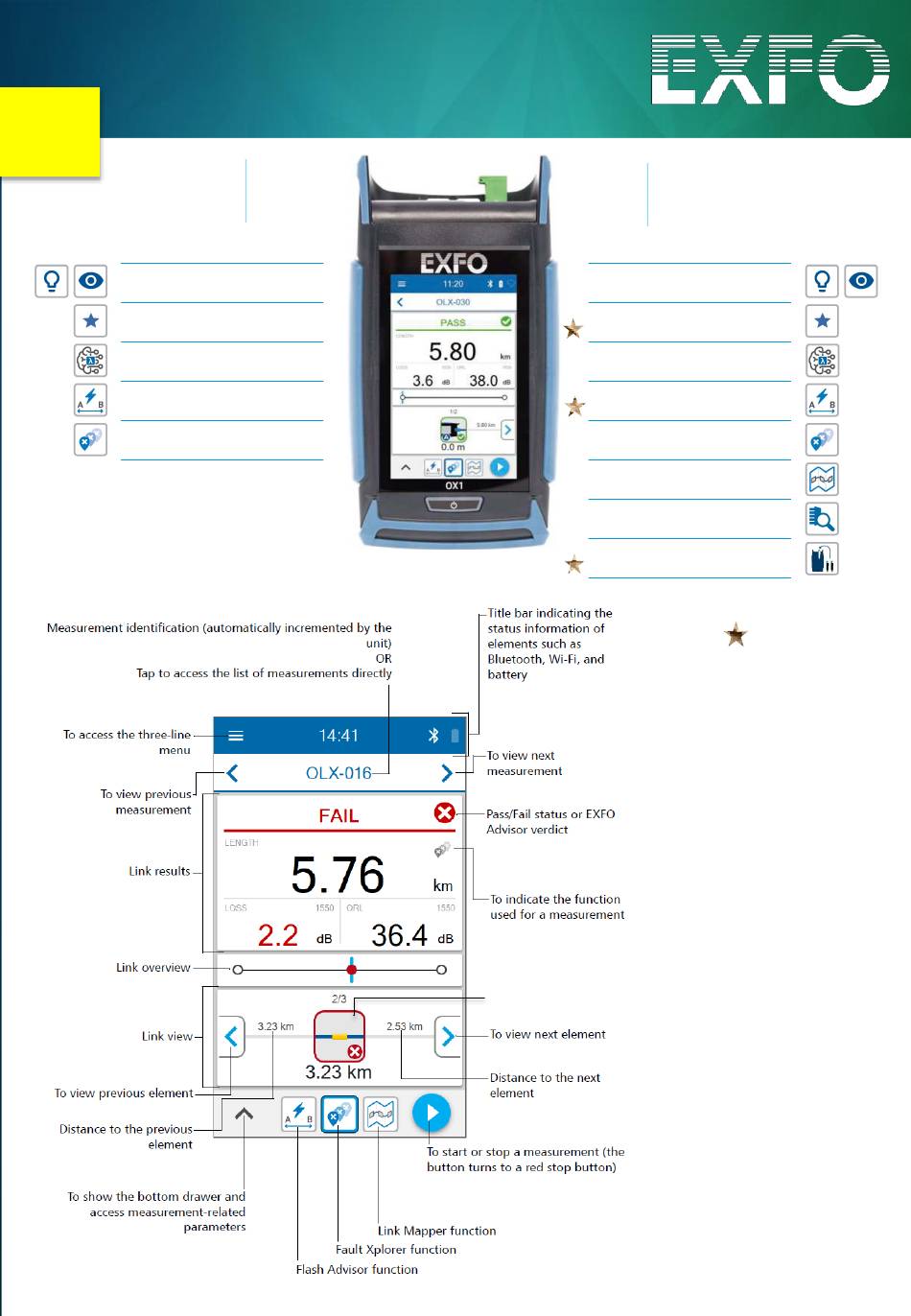

EXFO Optical Explorer
Overview
1310/1550 nm
1650 nm
Features and functions
Light source / Power checker
EXFO Advisor 5-star rating
Contextual wavelength auto-selection
Flash Advisor
Fault Explorer
(Tap for additional details)
Models:
BASIC
PRO
Features and functions
Light source/ Power checker
EXFO Advisor 5-star rating scale
Contextual wavelength auto-selection
Flash Advisor
Fault Explorer
Link Mapper
Connectivity to splitter detection
Click-Out optical connector
Detected element
(Tap for additional details)
Models:
1310/1550 nm
1650 nm
1310/1550/1650nm (Live)
Patent-pending
1
Advertisement
Related Manuals for EXFO OX1 Basic
Summary of Contents for EXFO OX1 Basic
- Page 1 1310/1550/1650nm (Live) Features and functions Features and functions Light source / Power checker Light source/ Power checker EXFO Advisor 5-star rating EXFO Advisor 5-star rating scale Contextual wavelength auto-selection Contextual wavelength auto-selection Flash Advisor Flash Advisor Fault Explorer Fault Explorer...
- Page 2 EXFO Optical Explorer started Powering up the OX1 Press the on/off button until the unit beeps once. LED lights up and remain lit until the splash screen is displayed Overview of OX1 Testing Functions Pro models only Fault Xplorer Link Mapper...
- Page 3 1.3: Set up the test cords (Recommended Length: 20m (APC connector) – 60m (UPC connector) 1.4: Select Pass/Fail criteria among: EXFO Advisor™, the 5 star rating of fibre link health or Custom thresholds to edit customized thresholds EXFO Advisor only for Flash Advisor Test...
- Page 4 EXFO Optical Explorer Results Test and Results 1.1: Select the desired test function: Flash Advisor, Fault Xplorer or Link Mapper (on Pro model only) 1.2 Tap start button 1.3 Tests results are stored automatically. File auto-naming and auto- increment is enabled by default (OLX-XXX format)
- Page 5 EXFO Optical Explorer TestFlow Mobile Pair OX1 Unit to your Smartphone 1.1 If you have a TestFlow account, enter your credentials (1) to enter TestFlow Mobile app. Otherwise, Tap “NOT NOW” (2) and Open the main menu (3) 1.2 Select Optical Explorer (4) 1.3 Pair the desired OX1 unit to your smartphone...
- Page 6 EXFO Optical Explorer TestFlow Mobile Create PDF Single Test Report 1.1 Once the OX1 paired to your Smartphone, Tap on the desired measurement to open it (1) 1.2 Tap the three dot menu (2) and Select PDF report (3) 1.3 Edit Report information and Tap CREATE (4)
- Page 7 EXFO Optical Explorer Features Splitter detection (Link Mapper) Pro models only Enabling splitter detection 1. Open main 2. Activate 3. Open splitter 4. Select splitter 5. Press start (note the button has parameters panel splitter detection ratio selection ratio changed to warn user)
- Page 8 EXFO Optical Explorer TestFlow Mobile Work in Job Mode with TestFlow OX1 unit can work in pair with TestFlow Mobile app and download a TestFlow job consisting in a list of predefined fibers to be tested. Once the job completed, the OX1 results are uploaded to TestFlow via the app,...
- Page 9 EXFO Optical Explorer TestFlow Mobile Job Cloud Storage and Report 1.1 Once the job completed into the OX1, display the job in TestFlow Mobile and Tap and press SYNC to sync back OX1’s results into TestFlow Mobile. All results are automatically stored in TestFlow cloud.
- Page 10 EXFO Optical Explorer How-to Videos How-to Videos Scan QR code to access the video Start testing with Optical Explorer (5’31”) https://www.opternus.de/video/ exfo-ox1-start-testing Pairing Optical Explorer with smart device and connecting Optical Explorer to WiFi (3’09”) https://www.opternus.de/video/ exfo-ox1-pairing Updating Software on Optical Explorer (1’28”)
