Inspecting Fibers with a Probe

The fiber inspection probe (FIP) is used to find dirty or damaged
connectors by displaying an enlarged view of the connector surface. You
can connect an FIP to your unit to view fiber ends.
Only the probes of the FIP-400B series are supported on your unit.
Fiber inspections are made using the ConnectorMax2 application. For
more information, refer to the ConnectorMax2 online help.
To inspect fibers with a probe:
1. Connect the probe to one of the USB ports of your unit (right or top
panel).

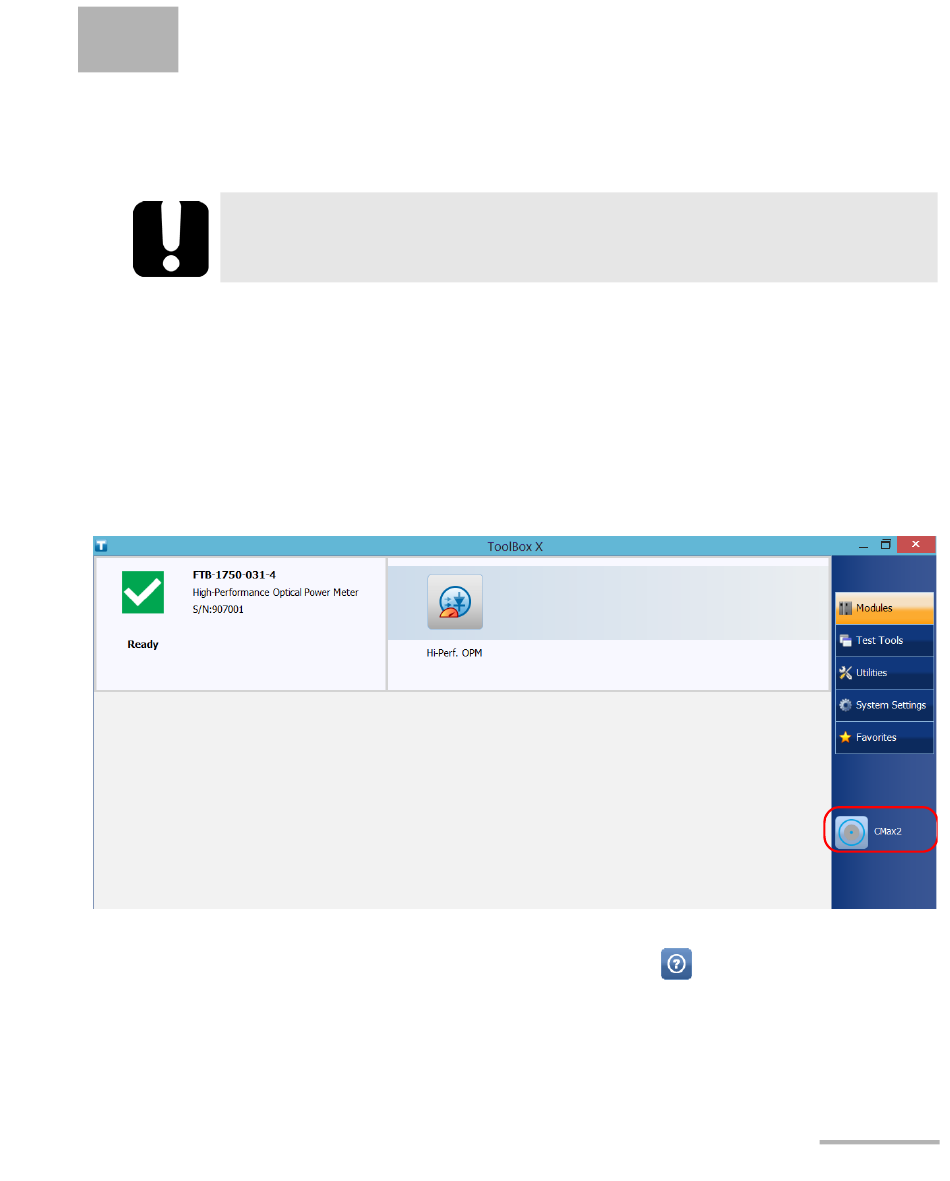

2. From Toolbox X, tap the CMax2 button to open the application.
Note: You can access the online help by tapping the
ConnectorMax2 application.
