Summary of Contents for EXFO FPM-600
- Page 1 User Guide FPM-600/FLS-600 Power Meter/Light Source...
-
Page 2: Table Of Contents
Accessing and Navigating Setup Menus ................Installing the EXFO Universal Interface (EUI) ................ Cleaning and Connecting Optical Fibers ................4 Measuring Power or Loss (FPM-600 ) ............Nulling Electrical Offsets ...................... Setting Power Correction Factor ..................Defining a List of Favorite Wavelengths ................ - Page 3 Cleaning Detector Ports ....................... Recharging and Replacing the Battery ................. Recalibrating the Unit ......................8 Troubleshooting ..................52 Solving Common Problems ....................Reverting Unit to Factory Settings ..................Error Codes and Descriptions ....................A Technical Specifications ................55 FPM-600 ..........................FLS-600 ..........................56 FPM-600/FLS-600...
-
Page 4: Introducing The Fpm-600/Fls-600

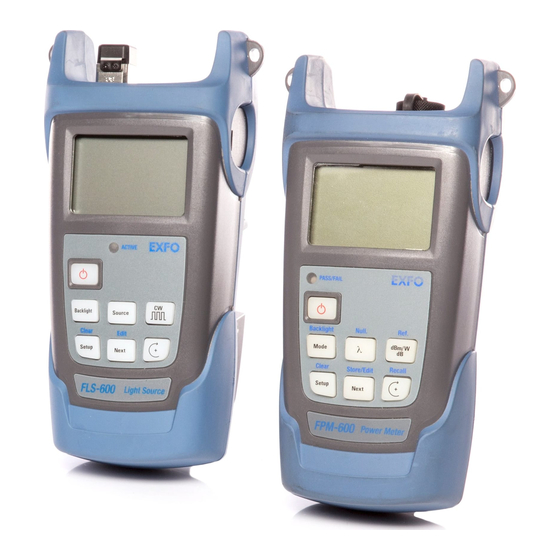

Introducing the FPM-600/FLS-600 This user guide covers the following products (unless otherwise specified, descriptions apply to all): FPM-600 Power Meter FLS-600 Light Source Main Features Ge or GeX detector with 44 and 45 calibrated wavelengths respectively Absolute power and link loss measurements... - Page 5 Introducing the FPM-600/FLS-600 Main Features Modulated signal emission or detection (270 Hz, 1 kHz and 2 kHz) compatible with other EXFO units Data storage on unit and USB transfer to a computer User-configurable pass/fail thresholds with LED indicator Automatic shutdown after 10 minutes of idle time...
-
Page 6: Power Sources
Introducing the FPM-600/FLS-600 Power Sources Safety label and serial number (under the stand) USB connector Quick reference labels Battery compartment Power Sources The units operate with the following power sources: AC adapter (connected to standard power outlet—indoor use only) Compatible car outlet adapter available upon request. -
Page 7: Typical Applications
Introducing the FPM-600/FLS-600 Typical Applications Typical Applications Transmitter power measurements (dBm and W) Fiber-link loss testing (dB) Component insertion-loss testing (dB) Fiber identification with 270-Hz, 1-kHz and 2-kHz signals Fiber installation and maintenance applications FTTx: testing of passive optical networks (PONs) -
Page 8: Conventions
Introducing the FPM-600/FLS-600 Conventions Conventions Before using the product described in this guide, you should understand the following conventions: ARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Do not proceed unless you understand and meet the required conditions. -
Page 9: Safety Information
MPORTANT When you see the following symbol on your unit , make sure that you refer to the instructions provided in your user documentation. Ensure that you understand and meet the required conditions before using your product. FPM-600/FLS-600... -
Page 10: Laser Safety Information(Fls-600 Without Vfl)
The product is safe under reasonably foreseeable conditions of operation but it may be hazardous if you use optics within a diverging or collimated beam. Do not view directly with optical instruments. The following label(s) indicate that the product contains a Class 1M source: FPM-600/FLS-600... -
Page 11: Laser Safety Information (Units With Vfl)
The AC adapter/charger provided with this unit is specifically designed to work with your product. ARNING Use only accessories that meet EXFO expectations. AUTION EXFO guarantees the specifications and viability of the products ONLY if they are used with chargers and batteries provided by EXFO. -
Page 12: Electrical Safety Information
Measured in 0 °C to 31 °C (32 °F to 87.8 °F) range, decreasing linearly to 50 % at 40 °C (104 °F) For indoor use only. Equipment is normally protected against exposure to direct sunlight, precipitations and full wind pressure. Not exceeding ± 10 % of the nominal voltage FPM-600/FLS-600... -
Page 13: Getting Started
Note: Offset nulling values are always returned to factory settings. To turn on the unit: Press . The unit displays EXFO Inc. for a few seconds. You may use it immediately under normal conditions. To turn off the unit: From normal operating mode, hold down a few seconds. - Page 14 Getting Started Turning the Unit On and Off LED Indicators FPM-600: FLS-600: Whether the test passed or failed The laser source is active. according to the thresholds Display Power meter wavelength or Source wavelength reference power (FPM) Fiber number Value included in favorites list...
-
Page 15: Activating Automatic Shutdown (Auto-Off)
(not available on FLS-600) Activating Automatic Shutdown (Auto-Off) When auto-off is activated, the unit will turn off after 10 minutes of idle time. Auto-off is activated by default when you turn on the unit. To deactivate/reactivate auto-off: When unit is on, press FPM-600/FLS-600... -
Page 16: Activating The Backlight
Press once to access a submenu from the main level. Press Press to exit menus (one level at a time). Note: Details about each menu option are given in this user guide. FPM-600/FLS-600... - Page 17 Getting Started Accessing and Navigating Setup Menus FPM-600/FLS-600...
-
Page 18: Installing The Exfo Universal Interface (Eui)
Getting Started Installing the EXFO Universal Interface (EUI) Installing the EXFO Universal Interface (EUI) The EUI fixed baseplate is available for connectors with angled (APC) or non-angled (UPC) polishing. A green border around the baseplate indicates that it is for APC-type connectors. -
Page 19: Cleaning And Connecting Optical Fibers
To ensure maximum power and to avoid erroneous readings: Always inspect fiber ends and make sure that they are clean a s explained below before inserting them into the port. EXFO is not responsible for damage or errors caused by bad fiber cleaning or handling. - Page 20 EXFO uses good quality connectors in compliance with EIA-455-21A standards. To keep connectors clean and in good condition, EXFO strongly recommends inspecting them with a fiber inspection probe before connecting them. Failure to do so will result in permanent damage to the connectors and degradation in measurements.
-
Page 21: Measuring Power Or Loss (Fpm-600)
Measuring Power or Loss (FPM-600) Nulling Electrical Offsets Temperature and humidity variations affect the performance of electronic circuits and optical detectors. Nulling the electrical offsets eliminates these effects. Your unit has been designed not to require offset nulling under normal operation, but you should perform it whenever environmental conditions change significantly or when measuring very low power values. -
Page 22: Setting Power Correction Factor
Measuring Power or Loss (FPM-600) Setting Power Correction Factor Setting Power Correction Factor You may apply a correction factor (CF) to measured power to compensate for inaccuracies or drifts. You should change the CF after performing an offset nulling. Power = Power ... - Page 23 Measuring Power or Loss (FPM-600) Setting Power Correction Factor 5. Edit the correction factor as follows: 5a. Hold down a few seconds. The first digit of the CF blinks. 5b. Clear all digits by holding down for a few seconds.
-
Page 24: Defining A List Of Favorite Wavelengths
Measuring Power or Loss (FPM-600) Defining a List of Favorite Wavelengths Defining a List of Favorite Wavelengths You must put the wavelengths you want to use on a list of favorite wavelengths (the FAV list). Only wavelengths on this list are available for measurements. - Page 25 Measuring Power or Loss (FPM-600) Defining a List of Favorite Wavelengths 4. Press to include/exclude the displayed wavelength. 5. Edit the wavelength value as follows: 5a. Hold down a few seconds. The first digit of the wavelength blinks. 5b. Clear all digits by holding down for a few seconds.
-
Page 26: Referencing Your Power Meter To A Source
Measuring Power or Loss (FPM-600) Referencing Your Power Meter to a Source Referencing Your Power Meter to a Source In reference mode, your unit displays the loss created by the fiber under test only, since a reference value is subtracted from the measured power. - Page 27 Measuring Power or Loss (FPM-600) Referencing Your Power Meter to a Source To reference the power meter to a source manually: Using the proper adapter, connect a light source (such as FLS-600) to the detector port of your power meter.
- Page 28 Measuring Power or Loss (FPM-600) Referencing Your Power Meter to a Source Repeat the procedure for each wavelength you want to reference (if you use auto-switching mode, the power meter automatically references wavelengths one at a time). Note: When using dB units, press to display the current wavelength for a few seconds.
-
Page 29: Measuring Power Or Loss
Measuring Power or Loss (FPM-600 and FOT-600) Measuring Power or Loss Measuring Power or Loss Measuring absolute power or link loss is done the same way, except for the referencing step. To perform power or loss measurements: If necessary, perform an offset nulling (see... - Page 30 Measuring Power or Loss (FPM-600) Measuring Power or Loss 6. Match the source and power meter wavelengths: If the source emits an auto-wavelength signal or is in auto-switching mode (see Automatically Detecting Wavelength on page 28 and see To receive the...
-
Page 31: Automatically Detecting Wavelength
Measuring Power or Loss (FPM-600) Automatically Detecting Wavelength Automatically Detecting Wavelength Compatible sources (such as FLS-600) can transmit their wavelength value through the fiber, avoiding the need to manually match the source and power meter wavelengths. Note: When you receive an auto-wavelength signal or when the source is in auto- switching mode, you cannot manually change the power meter wavelength. - Page 32 Measuring Power or Loss (FPM-600) Activating Hold Min/Max Power Mode Activating Hold Min/Max Power Mode With the Hold Min/Max mode you can record extreme values of a varying power signal. You could use it to test the stability of a light source over time.
-
Page 33: Setting Pass/Fail Thresholds
Measuring Power or Loss (FPM-600) Setting Pass/Fail Thresholds Setting Pass/Fail Thresholds You can define thresholds to specify acceptable power (dBm) or loss (dB) values for each wavelength. Thresholds are often supplied by system manufacturers and depend on the system deployed. - Page 34 Measuring Power or Loss (FPM-600) Setting Pass/Fail Thresholds 6. Edit the pass/fail threshold as follows: 6a. Hold down for a few seconds. The first digit of the threshold blinks. 6b. Clear all digits by holding down for a few seconds.
-
Page 35: Using A Light Source (Fls-600) Or Vfl
The FLS-600 may contain up to three sources (one-port models) or up to four sources (two-port models). Note: The VFL option may also be present on the FPM-600 . Defining a List of Favorite Wavelengths You may put the wavelengths you want to use on a list of favorite wavelengths (the FAV list). -
Page 36: Activating/Deactivating A Light Source Or Vfl
2 kHz (VFL: CW and 1 Hz only). Automatically Note: Auto is a modulated signal detected by compatible units (see Detecting Wavelength on page 28). It provides longer battery life than CW, but covers a reduced power range. FPM-600/FLS-600... -
Page 37: Using Auto-Switching Mode
Using a Light Source (FLS-600) or VFL Using Auto-Switching Mode Note: Auto-switching mode is a special signal detected by compatible units (see Using Auto-Switching Mode on page 34). To change the signal modulation: 1. Activate the source. 2. Press to switch between available modulations. -
Page 38: Sending Source Power Value With Signal
Sending Source Power Value with Signal Your source can transmit a user-defined power value to compatible power meters (such as FPM-600) through the fiber. If the reference source is far from the power meter, you can connect your source to the power meter to send the reference value. - Page 39 Using a Light Source (FLS-600) or VFL Sending Source Power Value with Signal To define the source power value to use as reference: 1. From normal operating mode, press repeatedly until you reach SRC. Press to access the first submenu, then press repeatedly until you reach the PREF menu.
-
Page 40: Saving And Recalling Power/Loss Values
Saving and Recalling Power/Loss Values You can save 1000 power/loss values in your unit, along with references. You will save and recall this data according to cable names and fiber numbers. To free up memory, you can transfer saved data to a computer or simply delete all. -
Page 41: Saving, Recalling And Deleting Data
ID that will be used next. 1b. Change the fiber ID by using to move forward or backward in the list. 2. Hold down for a few seconds to save the measured value under the selected fiber ID. FPM-600/FLS-600... -
Page 42: Activating Hold Min/Max Power Mode
Saving and Recalling Power/Loss Values Saving, Recalling and Deleting Data MPORTANT When the power meter is connected to the fiber or DUT, you must wait until at least one loss measurement is displayed on the power meter before pressing the button. - Page 43 3. Hold down a few seconds. The unit displays “dEL”, then displays another cable name. 4. Press to return to normal mode. FPM-600/FLS-600...
-
Page 44: Transferring Data To A Computer
Saving and Recalling Power/Loss Values Transferring Data to a Computer To delete all saved data from the unit: From normal operating mode, hold down a few seconds.The Recall indicator is displayed with the last cable name, then the last saved value and its fiber ID. When fiber ID is displayed, hold down both for a few seconds. -
Page 45: Maintenance
Maintenance This product contains no user-serviceable parts. However, it contains sensitive electronic and optical components, and should be handled carefully and stored in its carrying case when not in use. To help ensure long, trouble-free operation: Always inspect fiber-optic connectors before using them and clean them if necessary. - Page 46 Maintenance Cleaning EUI Connectors ARNING Looking into the optical connector while the light source is active WILL result in permanent eye damage. EXFO strongly recommends to TURN OFF the unit before proceeding with the cleaning procedure. To clean EUI connectors: 1.
- Page 47 6d. Verify connector surface with a portable fiber-optic microscope or fiber inspection probe (for example, EXFO’s FIP). Put the EUI back onto the instrument (push and turn clockwise). 8. Throw out cleaning tips and wiping cloths after one use.
-
Page 48: Cleaning Fixed Connectors
Do not try to disassemble the unit. Doing so would break the connector. ARNING Looking into the optical connector while the light source is active WILL result in permanent eye damage. EXFO strongly recommends to TURN OFF the unit before proceeding with the cleaning procedure. - Page 49 9. Continue to turn as you withdraw the cleaning tip. 10. Repeat steps 7 to 9, but this time with a dry cleaning tip (2.5 mm tip provided by EXFO). Note: Make sure you don’t touch the soft end of the cleaning tip and verify the cleanliness of the cotton tip.
-
Page 50: Cleaning Vfl-Type Connectors
1. Insert the mechanical into the optical adapter, and push the outer shell into the cleaner. Note: The cleaner makes a clicking sound to indicate that the cleaning is done. 2. Verify connector surface with a portable fiber-optic microscope (for example, EXFO’s FOMS) or fiber inspection probe (for example, EXFO’s FIP). FPM-600/FLS-600... -
Page 51: Cleaning Detector Ports
Maintenance Cleaning Detector Ports Cleaning Detector Ports Regular cleaning of detectors will help maintain measurement accuracy. MPORTANT Always cover detectors with protective caps when unit is not in use. To clean detector ports: 1. Remove the protective cap and adapter (FOA) from the detector. If the detector is dusty, blow dry with compressed air. -
Page 52: Recharging And Replacing The Battery
Connect the unit to a power outlet (or car outlet) using the AC adapter/charger. The charge cycle will start and end automatically. Note: While charging, the battery indicator animates continuously. It does not reflect the actual charge status until charging is complete. FPM-600/FLS-600... - Page 53 Remove any debris using a dry cloth. Replace the battery compartment cover. ARNING Only use an EXFO battery. Batteries from other suppliers could result in serious damage to your unit, or personal injuries. ARNING Do not throw batteries into fire or water and do not short-circuit the batteries’...
-
Page 54: Recalibrating The Unit
You should determine the adequate calibration interval for your unit according to your accuracy requirements. Under normal use, EXFO recommends calibrating your unit every three years. To view the last calibration date (FPM-600 ): 1. -
Page 55: Troubleshooting
Troubleshooting Solving Common Problems Problem Possible Cause Solution The unit does not turn on. You did not press Press for 2 long enough. seconds. AC adapter/charger Connect AC not connected. adapter/charger and charge battery. Main battery discharged. Weather too cold. The unit takes very long to Too many values saved Delete all data from... -
Page 56: Reverting Unit To Factory Settings
You can revert most parameters on your unit to their factory state. When you perform this operation, you will lose all customized parameters. To revert unit to factory settings: Turn off your unit. 2. While holding down , press . When your unit beeps, release FPM-600/FLS-600... -
Page 57: Error Codes And Descriptions
Add data. You pressed Recall but no data was saved. Last saved data deleted. All data deleted. 29/30/ Calibration errors. Contact EXFO. 34/36/ 56/57 18/52 Incompatible wavelengths or Match source and power power too low in PREF on meter wavelengths or increase FOT-600. -
Page 58: A Technical Specifications
The information presented in this section is provided as a reference only. FPM-600 S P E C I F I C A T I O N S S T A N D A R D A C C E S S O R I E S... -
Page 59: Fls-600
4 in x 2 Weight 0.48 kg (1.1 lb) Temperature operating storage —10 °C to 50 °C (14 °F to 122 °F) —40 °C to 70 °C (—40 °F to 158 °F) Relative humidity 0 % to 95 % non-condensing FPM-600/FLS-600...
