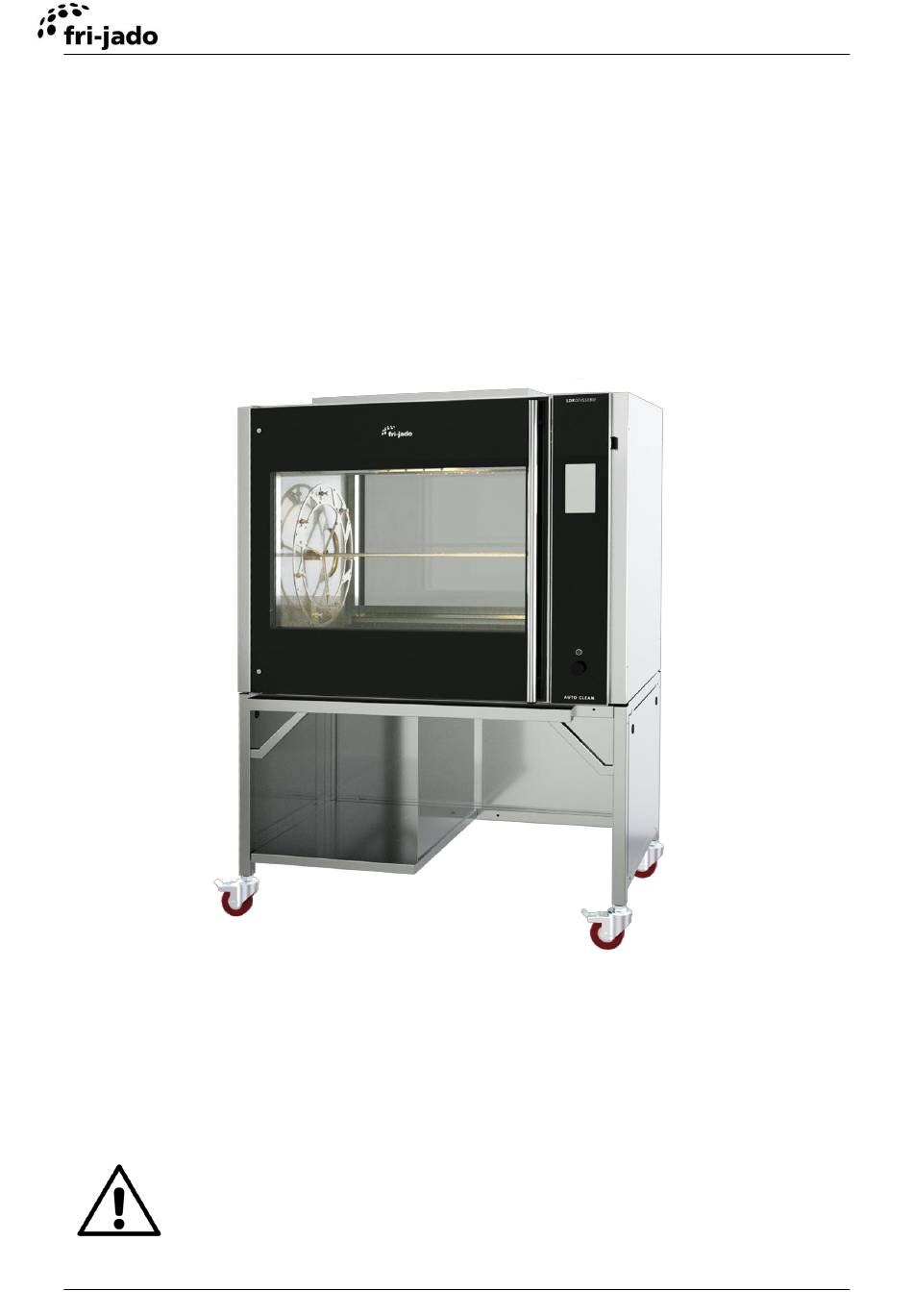

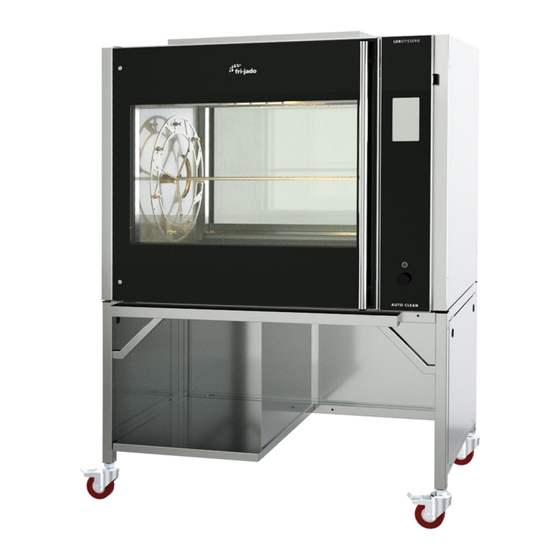

- Page 1 LDR 8 s AC USER MANUAL – EU version LDR 8 s Auto Clean LDR 8+8 s Auto Clean WARNING Read the instructions before using the machine. EN (Original Instruction) 9124686 / 2306...
- Page 2 LDR 8 s AC KEEP THIS USER MANUAL IN A SAFE PLACE FOR FUTURE USE © 2023 Fri-Jado B.V., Oud Gastel, The Netherlands. We advise you to contact your supplier for the guarantee period and conditions. Further we refer to our General Terms and Conditions for Sales and Delivery that are available upon request.
-
Page 3: Table Of Contents
LDR 8 s AC CONTENTS INTRODUCTION ......................5 General ..........................5 Identification of the unit ..................... 5 Pictograms and symbols ....................5 Safety instructions ......................6 1.4.1 General ........................6 1.4.2 Moving ......................... 7 Hygiene ..........................7 Service and technical support ................... 7 Storage .......................... - Page 4 LDR 8 s AC Reset alarm signal ......................18 Power down ........................18 SETTINGS ........................19 General ........................... 19 Overview main parameters (Manager) ................19 Service Menu ........................19 PROGRAM ........................20 General ........................... 20 Adding programs ......................20 Edit programs ......................... 20 Deleting programs ......................
-
Page 5: Introduction
INTRODUCTION General This manual is intended for the user of the LDR 8 s AC (Large Deli Rotisserie with cleaning feature). The features and controls are being described, along with directions for the safest and most efficient use, in order to guarantee a long life of the unit. -
Page 6: Safety Instructions
LDR 8 s AC Safety instructions WARNING The outside of the unit can be very hot. WARNING The maximum load on top of the unit may never exceed 50 kg. WARNING Risk of slippery floor: Spills may cause slippery surfaces, clean-up promptly. -
Page 7: Moving
LDR 8 s AC 1.4.2 Moving When moving the unit: • Before moving the unit, first switch off the mains voltage by pulling the plug from the wall socket and empty the fat collecting container. After that, cool-down the unit for at least ten minutes. -
Page 8: Description Of The Unit
Description of the unit Technical description The LDR 8 s AC uses natural convection and fans to provides an equally divided heat. The hardened glass panes are equipped with a heat reflecting layer to keep the heat inside the grill. The rotor is being wheeled by a maintenance-free motor and gearbox. -
Page 9: Installation And First Use
LDR 8 s AC INSTALLATION AND FIRST USE All packing materials used for this unit are suited for recycling. After unpacking, check the state of the unit. In case of damage, store the packing material, and contact the transporter within fifteen working days after receiving the goods. -
Page 10: Installation And Positioning
LDR 8 s AC Installation and positioning WARNING Electric chock hazard. Grounding instructions: only connect the appliance to an alternating current provided by a grounded wall socket, with a mains voltage in accordance with the information indicated on the data plate of the appliance. -
Page 11: First Use
LDR 8 s AC • The unit has a mains plug, and must be connected to a wall socket with the proper mains voltage. The wall socket must be mounted by a certified electrician. First use When using the unit for the first time, clean the interior thoroughly with soap suds and heat up the unit, see section 3.3.1. -
Page 12: Operation And Use
LDR 8 s AC OPERATION AND USE Control Panel Main Functions: ON / OFF Recipes Wipe/clean touch screen (during countdown) Clean Rotisserie Home screen Language Help function Tap or swipe to select function or activate additional screen Step Back (when shown at upper left corner) -
Page 13: Switching-On The Unit
LDR 8 s AC Switching-on the unit Loading the unit When the door is open press the rotor button to activate the rotor. This allow easy loading or unloading the products. Whilst loading the unit, make sure that the rotor gets evenly loaded, so that the mass of the products is evenly spread over de rotor, causing an equal balance. -
Page 14: Grilling Time
LDR 8 s AC • Whilst loading the unit with meat baskets, you must see to it, that the rotor gets evenly loaded, so that the mass of the products is evenly spread over de rotor, causing an equal balance. -
Page 15: Taking Out The V-Shape Spit (Accessory)
This releases the spit. Take the spit at its other end and take it out of the unit. Remove the products from the spit. Refer to the You-Tube movie: “Fri-Jado instruction for unloading chicken from a rotisserie”. 4.5.2 Taking out the meat basket (accessory) When taking out the meat basket from the LDR it is best to act as follows: Slightly lift both ends of the meat basket. -
Page 16: Operate
LDR 8 s AC OPERATE Starting a program 1. Press 2. Select the required program. The total duration of the program is shown in minutes next to the program name. 3. Press Delayed starting time (optional) When the Delayed starting time function is activated (at manager menu), a delayed starting time can be set. -
Page 17: Pre-Heating
LDR 8 s AC Pre-heating When the pre-heat function is activated (at manager menu), the unit will start this function after selecting a program. The screen will display the actual temperature (at the top). Tap on the temperature box to see the set pre-heat temperature (approx. -
Page 18: Adding Extra Time To The Active Program
LDR 8 s AC Adding extra time to the active program During the process extra time can be added (when activated in the manager menu), by following the next steps: 1. Press 2. Set extra time. 3. Select to save setting. -
Page 19: Settings
LDR 8 s AC SETTINGS General The settings of the unit can be changed by using the control panel. There are three kinds of settings: • Information • Manager • Service Select to enter the setting menu. The Manager and Service section are password protected. -
Page 20: Program
LDR 8 s AC PROGRAM General Enter the recipe menu Adding programs 1. Select 2. Enter the program name. 3. Enter the preheat step (or left blank). 4. Add cooking steps (swipe additional step at the bottom of the screen upwards). -
Page 21: Deleting Programs
LDR 8 s AC Deleting programs Deleting of a program cannot be undone. 1. Select recipe to delete. 2. Select 3. Select 4. Select Yes. 21 / 28... -
Page 22: Cleaning And Maintenance
LDR 8 s AC CLEANING AND MAINTENANCE WARNING Appliance must be disconnected from the power supply during manual cleaning or maintenance and when replacing parts. Do not use aggressive or abrasive materials. These will damage the surface which will make it more difficult to remove dirt. - Page 23 Contact your supplier for the appropriate Fri-Jado Rotisserie Cleaning Cartridges. Additional are Fri-Jado In Between Clean and Fri-Jado RotiShine Descale cleaning products available. Please contact Fri-Jado for more information. ProteClean disclaimer: In some cases a quick release of the second stage of the product can cause black stains in the stainless steel.
-
Page 24: Weekly Cleaning
LDR 8 s AC Weekly Cleaning WARNING The control panel may only be cleaned using a damp cloth. The exterior: • Clean the exterior with cleaning agent or hot water combined with an appropriate cleaning agent. • Dry the exterior thoroughly by using a dry cloth. -
Page 25: Malfunctions And Service
LDR 8 s AC MALFUNCTIONS AND SERVICE Before you contact your supplier/dealer in case of a malfunction, there are some items you can check yourself: • Is the power supply working properly? Check fuses and differential switch. • Has the timer clock been properly set? -
Page 26: Technical Specifications
LDR 8 s AC TECHNICAL SPECIFICATIONS WARNING Consult the identification plate to get the proper specifications of the unit. electrical data may vary from country to country. Models Model LDR 8 s AC LDR 8+8 s AC Dimensions Width 1320 mm... - Page 27 LDR 8 s AC Notes. 27 / 28...
- Page 28 LDR 8 s AC Fri-Jado B.V. Fri-Jado Inc. Blauwhekken 2 1401 Davey Road, Suite 100 4751 XD Oud Gastel Woodridge IL 60517 The Netherlands Tel: +31 (0) 76 50 85 400 Tel: +1-630-633-7950 www.frijado.com 28 / 28...
