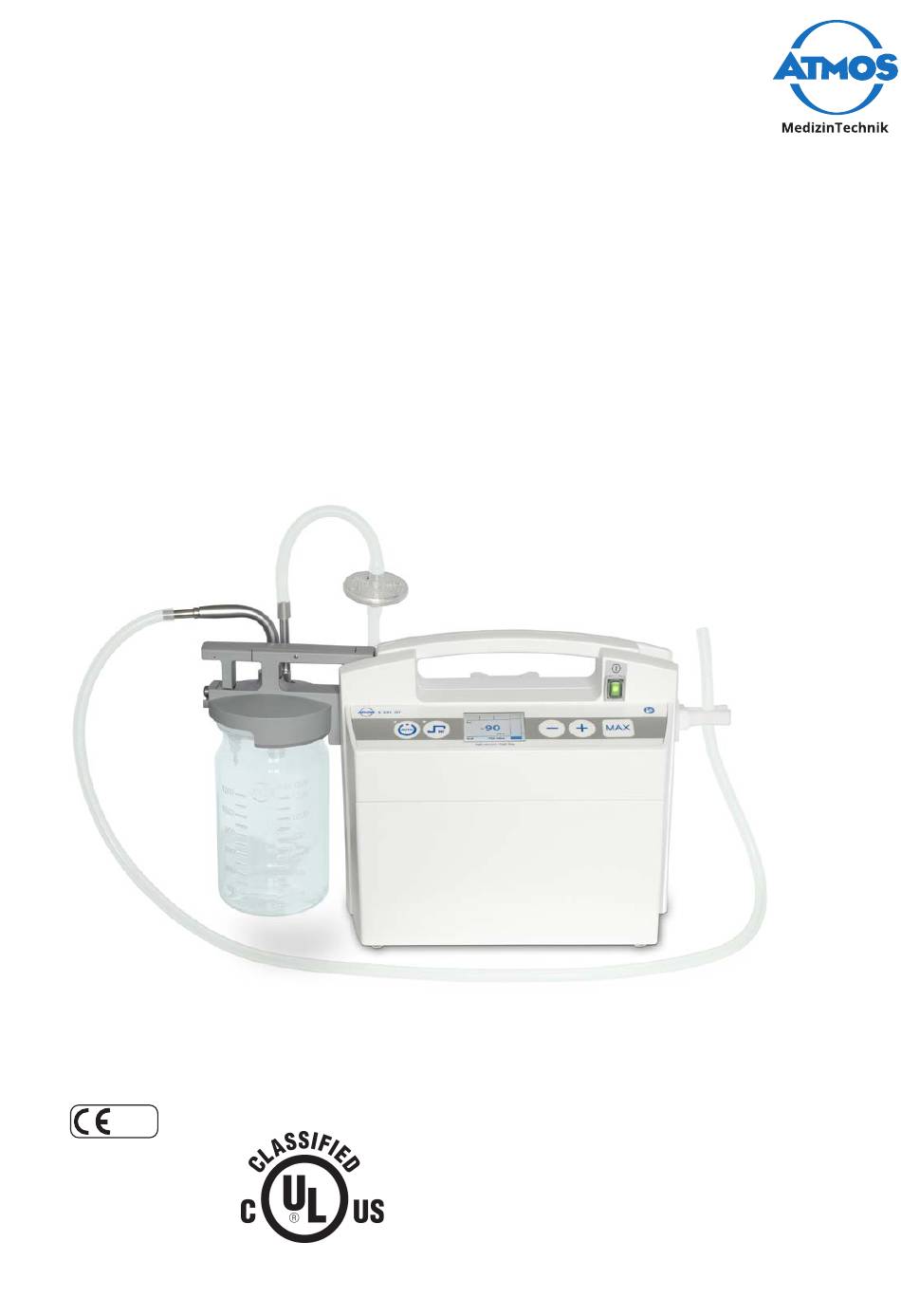

- Page 1 Operating Instructions ATMOS S 351 OT English 0124 GA1GB.210301.0 2020-05 Index 02 E349855...
-
Page 2: Table Of Contents
Table of contents Introduction.......................4 Notes on operating instructions ................4 Explanation of pictures and symbols ..............5 Intended use .......................7 Function ........................8 Intended users ......................9 Scope of delivery ......................9 Transport and storage .................... 10 Notes for your safety..................11 General safety instructions ..................11 Danger for users, patients and third parties ............ - Page 3 5.1.3 Avoiding damage to the device ................ 30 Preparing and completing reprocessing .............. 31 Preparing surfaces ....................31 5.3.1 Overview ......................31 5.3.2 Selecting process chemicals ................32 5.3.3 Wipe cleaning ..................... 32 5.3.4 Wipe disinfection ....................33 Reprocessing the accessories ................33 5.4.1 Overview ......................
-
Page 4: Introduction
ATMOS S 351 OT, 115 V 444.0405.2 ATMOS S 351 OT, 127 V 444.0405.3 ATMOS S 351 OT – basic set, 230 V 444.0460.0 ATMOS S 351 OT – basic set, 100 V 444.0460.1 ATMOS S 351 OT – basic set, 115 V 444.0460.2... -
Page 5: Explanation Of Pictures And Symbols
ATMOS S 351 OT mobile, 115 V 444.0470.2 ATMOS S 351 OT mobile, 127 V 444.0470.3 ATMOS S 351 OT mobile (2 x 3 l canister), 230 V 444.0476.0 ATMOS S 351 OT mobile (2 x 3 l canister), 100 V 444.0476.1 ATMOS S 351 OT mobile (2 x 3 l canister), 115 V 444.0476.2... - Page 6 This product complies with the relevant requirements of EU Directives. 0124 This product complies with the relevant requirements of EU Directives. UL Mark MEDICAL — GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH E349855 ANSI/AAMI ES60601-1 (2005) + AMD 1 (2012) CAN/CSA-C22.2 No.
-
Page 7: Intended Use
Fragile, handle with care Store in a dry place Protect from sunlight 1.3 Intended use Product name: ATMOS S 351 OT Main function: Drainage and temporary collection of body fluids. An electric suction pump controlled by a microprocessor generates negative pressure. An additional secretion canister must be attached to allow for temporary collection of drained body fluids. -
Page 8: Function
„5 Reprocessing“ on page 30. 1.4 Function The ATMOS S 351 OT is a mains-operated medical suction device. The device is operated with an electronically controlled, maintenance-free diaphragm pump. During operation, the pump generates a vacuum in the secretion canister and hoses, by means of which secretion, blood and body fluids are withdrawn by suction. The fluid... -
Page 9: Intended Users
Includes number ATMOS S 351 OT, 115 V 444.0405.2 ATMOS S 351 OT, 127 V 444.0405.3 ATMOS S 351 OT, basic set, 230 V 444.0460.0 1, 2, 3, 4, 5, 6, 7 ATMOS S 351 OT, basic set, 100 V 444.0461.0... -
Page 10: Transport And Storage
Only transport the product in a shipping carton that is padded and offers sufficient protection. If damage occurs during transport: 1. Document and report damages in transit. 2. Send the device to ATMOS, see chapter „6.2 Sending in the device“ on page 37. Ambient conditions for transport and storage: • Temperature: −10...+60 °C • Relative humidity: 30...95% without condensation... -
Page 11: Notes For Your Safety
2 Notes for your safety The safety of the ATMOS S 351 OT complies with the accepted standards of technology and the guidelines of the German Medical Devices Act. 2.1 General safety instructions Familiarise yourself with the device in good time so that you are capable of operating it at any time. - Page 12 • Perform a function check after each use. • ATMOS recommends always having another suction device ready at hand. That way you can also perform suctioning if a device should fail. • Please observe the notes on the electromagnetic compatibility (EMC) of the device.
-
Page 13: Avoiding Damage To The Device
Never operate the product in potentially explosive areas or in areas that are oxygen- ated. • Only use original accessories and original spare parts from ATMOS. This applies to the power cable in particular. WARNING Tripping hazard due to cables. - Page 14 The device may become damaged. • Ensure that no liquid enters the device. Once liquid has entered the device, it may no longer be used. In this case, clean the device and send it to ATMOS for repair. • Always place the device on firm, level ground. The device must always be in a vertical position when you use it.
-
Page 15: Setting Up And Starting Up
3 Setting up and starting up 3.1 Device overview Front view ON / OFF switch Display Support for canister system Connection for hose from pump to overflow canister Connection for suction hose Secretion canister lid Bacterial filter Rear view Pump connection Connection for foot controller Service interface Potential equalisation Mains supply... -
Page 16: Secretion Canister
3.1.1 Secretion canister Reusable canister system Locking handle Knurled screw for locking the lid insert and for adjusting the clamping force Release button Fill-level sensor with anti-foaming device Lid rim Aperture for double hose connector Contacts for fill-level monitoring Disposable canister systems Serres® canister system (1 l) Angle (connection for disposable suction hose) Serres®... -
Page 17: Preparing The Device
2. Check the device, secretion canisters, power cable, accessories and hoses for possi- ble damage. 3. If the device is damaged: document and report the damages in transit. Send the device to ATMOS (chapter „6.2 Sending in the device“ on page 37). Setting up and starting up... -
Page 18: Connecting To The Mains Power Supply
4. If the device is not damaged: place the device on a safe, level surface. 3.3 Connecting to the mains power supply 1. Check whether the voltage and frequency data listed on the device correspond to the values of the mains power supply. 2. - Page 19 1. Connect a short hose to the pipe connection on the device and to the bacterial filter. 2. Connect a second short hose to the printed side of the bacterial filter and to the safety canister lid. 3. Connect a longer hose to the inlet on the safety canister and to the vertical fitting of the double hose connector. When using the optional bacterial filter in the overflow canister, the bacterial filter between the pipe connection of the device and the safety canister lid can be omitted.
-
Page 20: Operation
• Relative humidity: 30 ... 95% without condensation • Air pressure: 700 ... 1060 hPa 4.2 Control panel S 351 OT AUTO high vacuum / high ow AUTO mode button (auto standby) INT mode button (intermittent) LEDs for indicating the active function... -
Page 21: Switching Off The Device
4.4 Switching off the device 1. Turn off the device by pressing the ON / OFF switch. The display takes about 3–4 seconds to turn off. 4.5 Explanation of the display The display shows the current settings of your ATMOS device. Foot controller Connect with trolley Standby automatic Variant 1:... -
Page 22: User Menu
1. Set the length of the individual phases and the level of the vacuum to be generated in the user menu (chapter „4.7 User menu“ on page 22). 2. Press the INT button (2) to turn on the mode. » The display changes to the Intermittent screen. -
Page 23: Vacuum Unit
Display Operation Options 4.7.2 Vacuum unit 1. Press the + (6) or – (5) button to • kPa go to the desired vacuum unit. • mmHg 2. Select the vacuum unit by press- • mbar ing the MAX button (7). »... -
Page 24: Brightness
Display Operation Options 4.7.3.2 Increase/Decrease time 1. Press the + (6) or − (5) button to • 15 sec (min) – set the desired value. 300 sec (max) 2. Confirm the value by pressing the MAX button (7). » The increase/decrease time is set. You are automatically redirected to the Intermittent menu. • To return directly to the Intermit- tent menu, press the INT button (2). -
Page 25: Date
Display Operation Options 4.7.5 Date 1. Press the + (6) or – (5) button to • Day set the day, month and year. • Month 2. Confirm the day, month and year • Year each by pressing the MAX button (7). » The date is set. You are automati- cally redirected to the main menu. -
Page 26: Suction
4.8 Suction 4.8.1 Adjusting the vacuum WARNING Vacuum is too high. Patient can be seriously injured. • Observe the valid guidelines. • Please select the vacuum according to the patient and the application. 1. Press the ON / OFF switch. »... -
Page 27: Electronic Fill-Level Monitoring System
4.9 Electronic fill-level monitoring system The ATMOS S 351 OT has an electronic fill-level monitoring system that switches off the pump when the maximum fill level is reached. At the same time, the device beeps and then Secretion canister full appears in the display. The maximum fill level is reached when the liquid comes into contact with the sensor in the secretion canister lid. If a large amount of foam is generated, you should fit the enclosed anti-foaming device over the sensor so that the pump does not switch off prematurely. As soon as the sensor is no longer in contact with the liquid (e.g. on replacing the double hose connector), the pump switches on again. -
Page 28: Trolley
1. Plug the foot controller into its connection before switching on the device. 2. Connect the suction catheter, suction attachment or suction instruments to the suction hose. 3. Switch on the ATMOS S 351 OT. Make sure that the pilot lamp in the ON / OFF switch lights up. 4. Select the final vacuum required using one of the buttons (5), (6) and (7). Keeping the –... -
Page 29: Checking The Bacterial Filter
4.14 Checking the bacterial filter ATTENTION The bacterial filter is a disposable product and cannot be autoclaved or disinfected. 1. Switch on the device. 2. Press the MAX button. 3. As soon as the current vacuum on the display shows a vacuum greater than −300 mbar (−30 kPa / −225 mmHg) with the suction hose open, you have to change the bacterial filter. 4. To do this, remove the hose connections on the bacterial filter and insert a new one. Pay attention to the flow direction (see lettering on the bacterial filter). 5. Dispose of the used bacterial filter immediately so that it is not used again acci- dentally. 6. Recommendation: always have some replacement filters ready at hand. Operation... -
Page 30: Reprocessing
5 Reprocessing 5.1 Safety instructions for reprocessing 5.1.1 General safety instructions We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the required results of cleaning and disinfection are achieved. -
Page 31: Preparing And Completing Reprocessing
Unsuitable cleaning agents and disinfectants. The product can become damaged. • Do not use any process chemicals containing the following ingredients on plastic parts: • Chloramides or phenol derivatives • Do not use abrasives. Incorrect mechanical cleaning and disinfection. Corrosion due to moisture. •... -
Page 32: Selecting Process Chemicals
5.3.2 Selecting process chemicals Follow the manufacturer’s instructions for the process chemical. Cleaning agent (manufacturer) Active ingredients in 100 g Type Disinfection Green & Clean SK <1 g dialkyldimethylammonium chloride, <1 g alkyldimethylethylbenzylam- Liquid (Metasys) monium chloride, <1 g alkyldimethylbenzylammonium chloride Dismozon®... -
Page 33: Wipe Disinfection
5.3.4 Wipe disinfection 1. Disinfect the surface evenly with a suitable cloth and suitable disinfectant. Pay particular attention to hard-to-reach areas. 2. Wait for the contact time to elapse. 5.4 Reprocessing the accessories 5.4.1 Overview Accessory Secretion canister system Secretion canister Secretion canister lid Double hose connector Bacterial filter... -
Page 34: Secretion Canister System
5.4.3 Secretion canister system Characteristics The accessories have the following hard-to-reach areas: • Double hose connector (lumina) • Secretion canister lid complete (hollow spaces) Take particular care when reprocessing hard-to-reach areas. Pre-treating at the site 1. Empty the canister. of use 2. -
Page 35: Hoses
Checking and 1. Check whether reprocessing was successful with a maintaining suitable light magnifier. • Free of particles and organic material 2. Dispose of damaged accessories or have them repaired. Assembly Not necessary. Function check Not necessary. Packaging 1. Label the accessories. 2. - Page 36 Mechanical cleaning 1. Clean and disinfect the hoses using a suitable pro- and disinfection gramme: • Pre-rinse with cold water Pre-rinse: 1 min • Cleaning with cleaning agent Clean: 5 min 55 °C / 131 °F • Neutralise with cold water Neutralise: 2 min • Intermediate rinse with softened, cold water Disinfect: 5 min •...
-
Page 37: Maintenance And Service
ATMOS recommends: Work should be carried out by an authorised ATMOS service partner. This ensures that repairs and tests are carried out professionally, original spare parts are used and warranty claims remain unaffected. -
Page 38: Troubleshooting
ATMOS S 351 OT has been screwed correctly to the trolley. Warning message Bacterial filter is blocked. Replace the bacterial filter. during suction Hose connection to... - Page 39 (ATMOS S 351 OT blocked. has overheated). Ambient temperature Use the ATMOS S 351 OT only in the too high. specified temperature range. Try using auto standby (less heat build- up). Fan is defective.
-
Page 40: Accessories
Trolley with standard rail ATMOS S 351 320.0070.0 Trolley ATMOS S 351 444.0020.0 Receptal® canister set 2 x 1.5 l for ATMOS S 351 444.0022.0 Receptal® canister set 2 x 2 l for ATMOS S 351 444.0023.0 Receptal® canister set 2 x 3 l for ATMOS S 351 444.0024.0... -
Page 41: Consumables
9 Consumables Consumables Hydrophobic bacterial and viral filter, Ø 11 mm 443.0738.0 Bacterial filter for ATMOS DDS secretion canister, 10 pcs. 340.0054.0 Silicone hose for safety canister – secretion canister 443.0046.0 Silicone hose for connecting nipple – bacterial filter 320.0044.0 Silicone hose for safety canister – secretion canister (trolley) 444.0118.0 Silicone hose for bacterial filter – safety canister 999.0128.0 Suction hose, PVC, Ø 8 mm, L = 2.10 m, 50 pcs. -
Page 42: Disposal
The following notes only apply to reusable products. 1. Clean and disinfect the reusable products of the secretion canister system. 2. Recycle the disinfected reusable products. ATMOS S 351 OT Do not dispose of the product together with household waste. 1. Clean and disinfect the product. -
Page 43: Technical Data
11 Technical data Voltage 230 V~ ± 10 %; 50/60 Hz Special voltage: • 100 V~ ± 10%; 50/60 Hz • 115 V~ ± 10%; 50/60 Hz • 127 V~ ± 10%; 50/60 Hz Current consumption • max. 0.5 A (230 V~) •... - Page 44 Protective earth conductor max. 0.1 resistance max. 0.5 mA Earth leakage current max. 0.1 mA Housing leakage current max. 0.1 mA Patient leakage current Heat output approx. 135 J/s Noise level < 54 dB (A) @ 1 m (according to ISO 7779) Ambient conditions for transport/storage •...
-
Page 45: Notes On Emc
12 Notes on EMC Medical electrical devices are subject to special precautions with regard to EMC and must be installed according to the following EMC notes. Guidance and manufacturer's declaration – ambient conditions The product is suitable for use in the following environments: •... -
Page 46: Notes
13 Notes 46 Notes... -
Page 47: Notes
