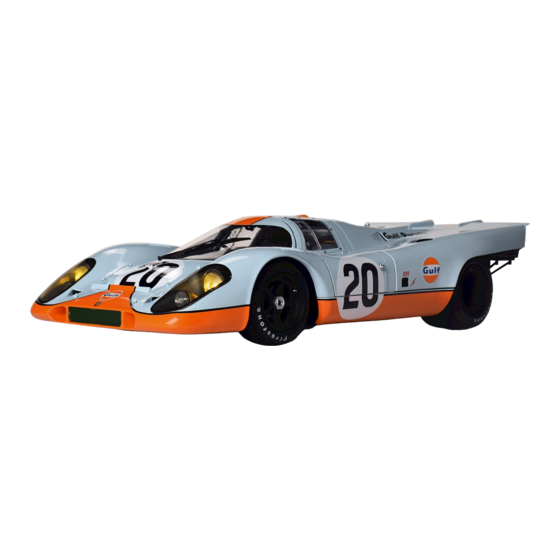

Agora Models STEVE MCQUEEN'S ICONIC PORSCHE 917KH Build Instructions
  1. Manuals
  2. Brands
  3. Agora Models Manuals
  4. Motorized Toy Car
  5. STEVE MCQUEEN'S ICONIC PORSCHE 917KH
  6. Build instructions

Agora Models STEVE MCQUEEN'S ICONIC PORSCHE 917KH Build Instructions

Hide thumbs Also See for STEVE MCQUEEN'S ICONIC PORSCHE 917KH:

Advertisement

Quick Links

Download this manual
Pack 09
B U I L D
I N S T R U C T I O N S
STAGE 65: AT TACHING THE FRONT FLOOR
STAGE 69: MOUNTING THE FUEL PUMP
PANEL AND THE DASHBOARD
ON THE LEFT CHASSIS PLATE
STAGE 66: ASSEMBLING AND
STAGE 70: INSTALLING THE FUEL MANIFOLD
CONNECTING THE RADIATOR
AND ATTACHING FUEL LINES
STAGE 67: AT TACHING THE
STAGE 71: ASSEMBLING AND
COCKPIT FLOOR PANEL
INSTALLING THE OIL TANK
STAGE 68: FIT TING THE COCKPIT HOUSING
STAGE 72: CONNECTING FUEL AND OIL LINES
AND THE HANDBRAKE
AND FITTING THE LEFT REAR WHEEL ARCH
Porsche, the Porsche shield and the distinctive design of Porsche cars are trademarks and trade dress of Porsche AG. Permission granted.
Personality rights of Steve McQueen are used with permission of Chadwick McQueen and The Terry McQueen Testamentary Trust.
Represented exclusively by Greenlight.

Advertisement

loading
Need help?

Need help?

Do you have a question about the STEVE MCQUEEN'S ICONIC PORSCHE 917KH and is the answer not in the manual?

Questions and answers

Related Manuals for Agora Models STEVE MCQUEEN'S ICONIC PORSCHE 917KH

Summary of Contents for Agora Models STEVE MCQUEEN'S ICONIC PORSCHE 917KH

  • Page 1 Pack 09 B U I L D I N S T R U C T I O N S STAGE 65: AT TACHING THE FRONT FLOOR STAGE 69: MOUNTING THE FUEL PUMP PANEL AND THE DASHBOARD ON THE LEFT CHASSIS PLATE STAGE 66: ASSEMBLING AND STAGE 70: INSTALLING THE FUEL MANIFOLD CONNECTING THE RADIATOR...
  • Page 2 Advice from the experts Spare screws are included with each part. Occasionally, you may be instructed to keep spare or unused screws for a later stage. Keep these spares in a safe place and label them correctly. Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary slightly. Using the wrong screws may damage the parts.
  • Page 3 STAGE 65: ATTACHING THE FRONT FLOOR PANEL AND THE DASHBOARD Front floor panel Screw 2.0 x 4 mm (x5) ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 4 STAGE 65: ATTACHING THE FRONT FLOOR PANEL AND THE DASHBOARD S T E P 1 Before installing the dashboard (63A) onto the dashboard frame (27A), route the four cables (blue, green, white and red-white) between the tubular frame (31A) and the wiring board (31C) as indicated by the red arrow.
  • Page 5 STAGE 65: ATTACHING THE FRONT FLOOR PANEL AND THE DASHBOARD Temporarily remove the fire extinguisher pull (28E) from the dashboard frame (27E) and set it aside safely. S T E P 3 Carefully turn the assembly over and locate the two screw holes just ahead of the seats.
  • Page 6 STAGE 65: ATTACHING THE FRONT FLOOR PANEL AND THE DASHBOARD S T E P 4 Next to the front right wheel, drive an MP screw (supplied with Stage 64) through the hole in the same manner. Pass the screwdriver through the area highlighted orange to access the hole.
  • Page 7 STAGE 65: ATTACHING THE FRONT FLOOR PANEL AND THE DASHBOARD S T E P 6 Align the front floor panel (65A) with the underside of the chassis (25A) as shown and position it in place. Secure it using four PM screws. The dashboard and front floor panel have been mounted onto the chassis.
  • Page 8 STAGE 65: ATTACHING THE FRONT FLOOR PANEL AND THE DASHBOARD S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 9 STAGE 66: ASSEMBLING AND CONNECTING THE RADIATOR Radiator Connector (x4) Radiator front panel Cooling water pipe roll Left radiator side Coupling (x4) Screw 1.7 x 4 mm (x3) Right radiator side Screw 2.0 x 5 mm (x3) Metal hose (x2) ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 10 STAGE 66: ASSEMBLING AND CONNECTING THE RADIATOR ASSEMBLY DIAGRAM S T E P 1 Fit the radiator front panel (66B) into the radiator (66A) and secure in place using two MP screws. Press the right and left radiator sides (66C and 66E) onto the shaped pins of the radiator as shown.
  • Page 11 STAGE 66: ASSEMBLING AND CONNECTING THE RADIATOR S T E P 2 Connect the two metal hoses (66F) to the radiator by pressing the pins of their connectors into the holes of the left radiator side (66C). Position the lugs of the radiator (66A) into the corresponding holes of the front floor panel (65A) and...
  • Page 12 STAGE 66: ASSEMBLING AND CONNECTING THE RADIATOR Take the cooling water pipe roll (66H) and cut two lengths of hose measuring 285 mm. S T E P 4 Fit a length of the cooling water pipe (66H), highlighted green, over the pin of the water pump housing (8A) from which the hose was removed in Step 3.
  • Page 13 STAGE 66: ASSEMBLING AND CONNECTING THE RADIATOR S T E P 5 Guide the cooling water pipe (66H) underneath the wiring board (31C) and towards the front of the model. Connect the cooling water pipe (66h) to the coupling (66D) of the lower hose. Before connecting the pipe to the coupling, you may wish to trim it to length by removing...
  • Page 14 STAGE 66: ASSEMBLING AND CONNECTING THE RADIATOR Run the cooling water pipe (66H) through towards the front of the model as shown. S T E P 7 Slide the cooling water pipe (66H) behind the wiring board (31C), then run it through to the front of the model.
  • Page 15 STAGE 66: ASSEMBLING AND CONNECTING THE RADIATOR S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 16 STAGE 67: ATTACHING THE COCKPIT FLOOR PANEL Cockpit floor panel Screw 2.0 x 4 mm (x7) ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 17 STAGE 67: ATTACHING THE COCKPIT FLOOR PANEL S T E P 1 Carefully turn the assembly upside down and unscrew the two CM screws from the chassis (25A), as indicated by the red arrows. S T E P 2 Align the cockpit floor panel (67A) as shown and fit it onto the chassis (25A).
  • Page 18 STAGE 67: ATTACHING THE COCKPIT FLOOR PANEL S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 19 STAGE 68: FITTING THE COCKPIT HOUSING AND THE HANDBRAKE Left cockpit housing Screw 1.7 x 3.5 mm (x9) Right cockpit housing Handbrake Handbrake cable ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 20 STAGE 68: FITTING THE COCKPIT HOUSING AND THE HANDBRAKE S T E P 1 Align the right cockpit housing (68B) with the assembly as shown. Fit the housing onto the chassis (25A) and tubular frame (34B). While fitting, ensure the rear edge slides under the cockpit bulkhead (54A) as shown by the blue arrow.
  • Page 21 STAGE 68: FITTING THE COCKPIT HOUSING AND THE HANDBRAKE S T E P 3 Fit the handbrake cable (68D) onto the pin of the handbrake (68C), then press the handbrake into the shaped hole of the right cockpit housing (68B). Connect the loose end of the handbrake cable onto the pin of the cockpit bulkhead (54A) as...
  • Page 22 STAGE 68: FITTING THE COCKPIT HOUSING AND THE HANDBRAKE Fit the left cockpit housing (68A) onto the tubular frame (31B), ensuring the rear edge slides under the cockpit bulkhead (54A) in the same manner as before. S T E P 5 Secure the left cockpit housing in place using four IM screws, driving two into the chassis...
  • Page 23 STAGE 68: FITTING THE COCKPIT HOUSING AND THE HANDBRAKE S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 24 STAGE 69: MOUNTING THE FUEL PUMP ON THE LEFT CHASSIS PLATE Left chassis plate Pump fitting Fuel pump Connector Protective shield Braided fuel line ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 25 STAGE 69: MOUNTING THE FUEL PUMP ON THE LEFT CHASSIS PLATE S T E P 1 Press the fuel pump (69B) into the shaped hole of the protective shield (69C). Fit the protective shield (69C) into the shaped hole of the left chassis plate (69A).
  • Page 26 STAGE 69: MOUNTING THE FUEL PUMP ON THE LEFT CHASSIS PLATE Connect the pump fitting (69D) onto the pin of the fuel pump (69B). S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 27 STAGE 70: INSTALLING THE FUEL MANIFOLD AND ATTACHING FUEL LINES Oil tank support frame Connector (x2) Fuel manifold Fuel hose Braided fuel line(x2) Electrical switch ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 28 STAGE 70: INSTALLING THE FUEL MANIFOLD AND ATTACHING FUEL LINES S T E P 1 Take the fuel hose (70F) and fit it over the small pin of the cap (70C), then press the cap into the fuel manifold (70B) using the corresponding pins and holes.
  • Page 29 STAGE 70: INSTALLING THE FUEL MANIFOLD AND ATTACHING FUEL LINES S T E P 3 Fit the two fuel hoses (70G) into the connectors (70E). S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 30 STAGE 71: ASSEMBLING AND INSTALLING THE OIL TANK Oil filler cap Oil hose roll Handle Oil hose Oil tank body Support rod Oil tank body Screw 1.7 x 4 mm (x5) Bracket Screw 2.0 x 5 mm (x3) Strap Screw 1.7 x 3.5 mm (x3) Thermostat Screw 2.0 x 4 mm (x3) ASSEMBLY DIAGRAM...
  • Page 31 STAGE 71: ASSEMBLING AND INSTALLING THE OIL TANK ASSEMBLY DIAGRAM S T E P 1 Take the bracket (71E) and fit it over the two shorter columns inside the oil tank body (71C), orienting it as shown. Secure it in place with two AP screws. Fit the other half of the oil tank body (71D) in place over the bracket (71E), then drive two...
  • Page 32 STAGE 71: ASSEMBLING AND INSTALLING THE OIL TANK S T E P 2 Take the oil tank support frame (70A) from the previous stage and align it with the underside of the oil tank body (71C) as shown. Fit in place and secure using two MP screws.
  • Page 33 STAGE 71: ASSEMBLING AND INSTALLING THE OIL TANK Take the oil hose roll (71H) and cut two lengths of hose from it: one 140 mm (71H-1) and the other 40 mm (71H-2). S T E P 4 Fit the oil hose (71H-1) onto the pin of the oil filler cap (71A) and press the pin of the handle (71B) into the hole at the top of...
  • Page 34 STAGE 71: ASSEMBLING AND INSTALLING THE OIL TANK S T E P 5 Fit the precut section of oil hose (71I) onto the remaining pins of the thermostat (71G) and the oil tank body (71C). S T E P 6 Push the smaller pin of the support rod (71J) into the hole of the oil tank support frame...
  • Page 35 STAGE 71: ASSEMBLING AND INSTALLING THE OIL TANK S T E P 8 With the hoses out of the way, position the left chassis plate (69A) onto the chassis (25A). At the same time, fit the large pin of the support rod (71J) into the upper frame (47A).
  • Page 36 STAGE 71: ASSEMBLING AND INSTALLING THE OIL TANK S T E P 1 1 Bend the braided fuel line (69F) and fit its loose end into the connector (38D) of the fuel filter (38B). S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
  • Page 37 STAGE 72: CONNECTING FUEL AND OIL LINES AND FITTING THE LEFT REAR WHEEL ARCH Left rear wheel arch Screw 1.7 x 3.5 mm (x6) Rear brake cooling valve Screw 2.0 x 4 mm (x4) ASSEMBLY DIAGRAM AGORAMODELS PORSCHE 917KH...
  • Page 38 STAGE 72: CONNECTING FUEL AND OIL LINES AND FITTING THE LEFT REAR WHEEL ARCH ASSEMBLY DIAGRAM S T E P 1 Fit the oil filler cap (71A) onto the oil tank body (71C). Guide the oil hose (71H-1) connected to the cap through the frame as shown, then fit its loose end onto the pin of the engine oil recovery tank (46C).
  • Page 39 STAGE 72: CONNECTING FUEL AND OIL LINES AND FITTING THE LEFT REAR WHEEL ARCH Bend the fuel lines (70G) and fit the connectors (70E), highlighted red, onto the pins of the fuel manifold (70B). S T E P 3 Fit the rear brake cooling valve (72B) into the left rear wheel arch (72A).
  • Page 40 STAGE 72: CONNECTING FUEL AND OIL LINES AND FITTING THE LEFT REAR WHEEL ARCH S T E P 4 Fix the front of the wheel arch to the left chassis plate (69A) using three BM screws. S T A G E C O M P L E T E AGORAMODELS PORSCHE 917KH...
