Proline Prosonic Flow B 200
Single-path version: DN 50 (2"), DN 80 (3")
A
1
20 × DN
C
1
20 × DN

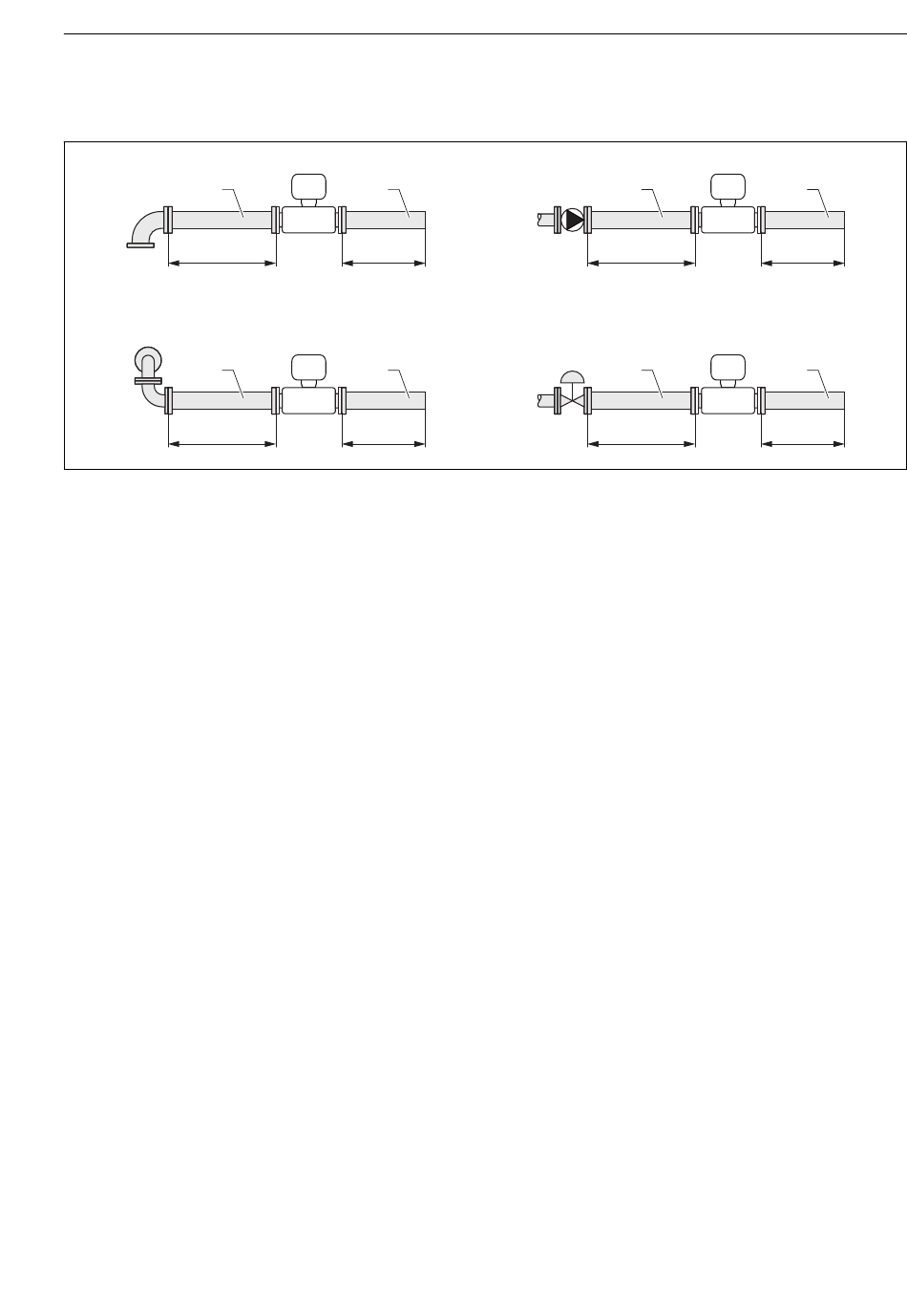

 3 Single-path version: minimum inlet and outlet runs with various flow obstructions
A 90 ° elbow or T-section
B Pump
C 2× 90 ° elbow 3-dimensional
D Control valve
1 Inlet run
2 Outlet run
Endress+Hauser
2
3 × DN
2
3 × DN
B
1
20 × DN
D
1
20 × DN
Mounting
2
3 × DN
2
3 × DN
A0015453
