Endress+Hauser Proline Prosonic Flow B 200 Brief Operating Instructions page 14

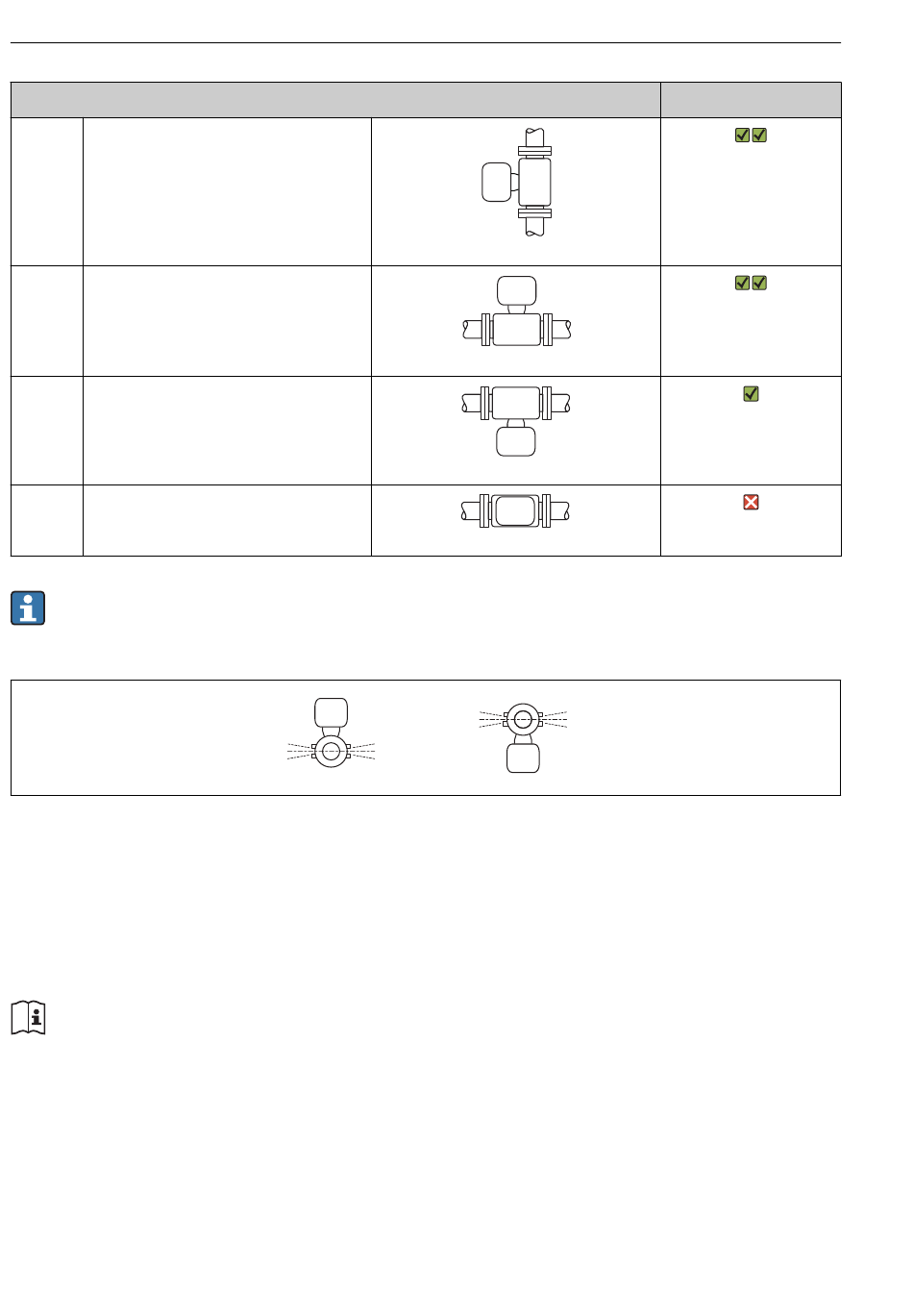

Mounting
A Vertical orientation
B Horizontal orientation, transmitter
head up *
C Horizontal orientation, transmitter
head down *
D Horizontal orientation, transmitter
head at side
* A maximum deviation of only ±3 ° is permitted for the horizontal alignment of the
transducers.
Inlet and outlet runs
The sensor should be mounted upstream of assemblies such as valves, T-sections, elbows etc.
where possible. As a minimum, the inlet and outlet runs shown below must be observed to
achieve the specific accuracy of the device. The longest inlet run shown must be observed if
two or more flow disturbances are present.
For the dimensions and installation lengths of the device, see the "Technical Information"
document, "Mechanical construction" section
14
Orientation
–3°
0°
+3°
A0015545
A0015589
A0015590
A0015592
–3°
0°
+3°
Proline Prosonic Flow B 200
Compact version
A0016534
Endress+Hauser
