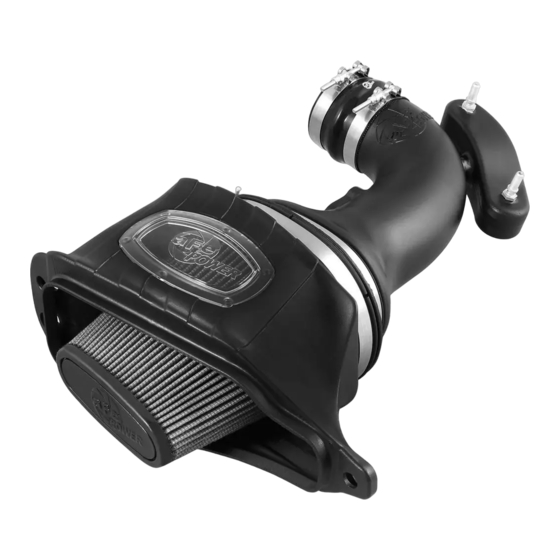

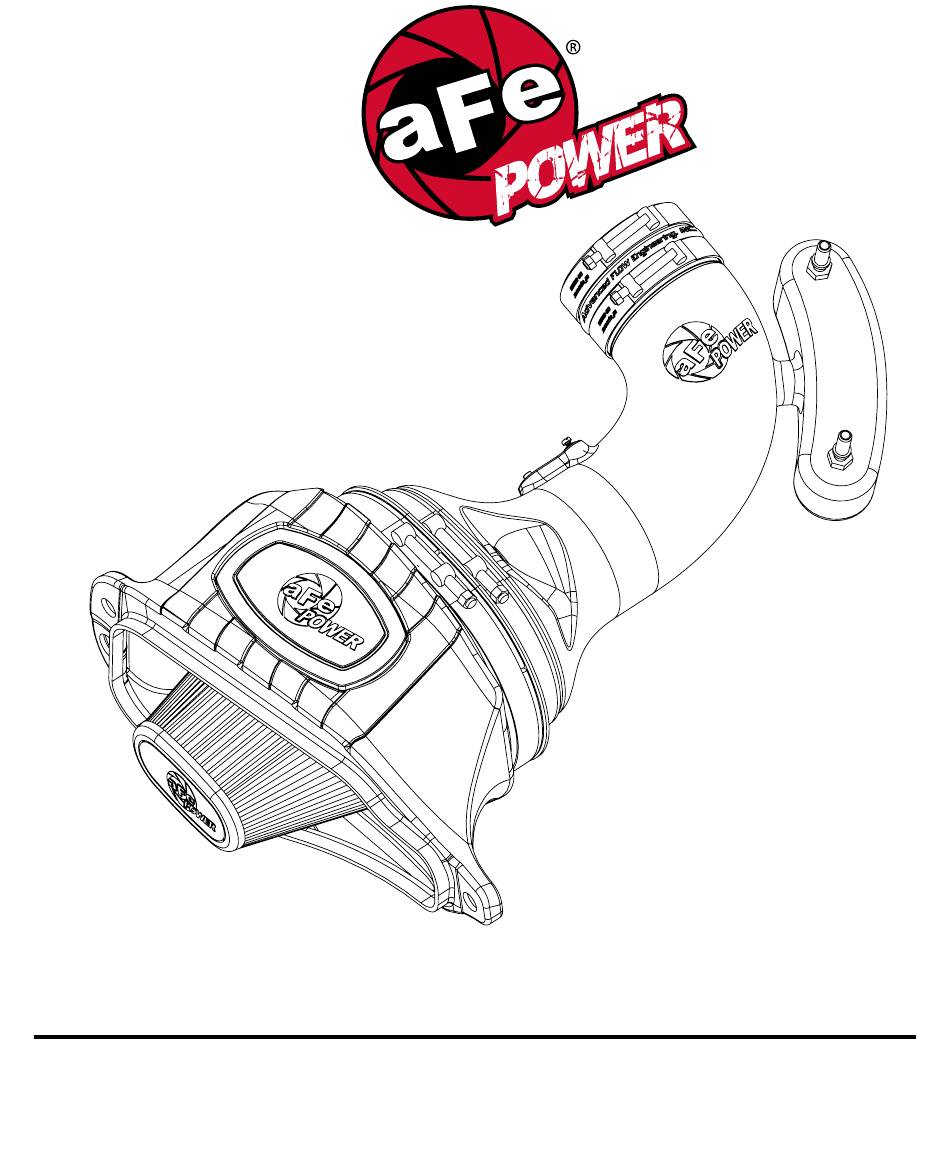

- Page 1 FLOW engineering Instruction Manual P/N: 51-74201 & 54-74201 Make: Chevrolet Model: Corvette (C7) Year: 2014 Engine: V8-6.2L...
- Page 2 • Please read the entire instruction manual before proceeding. • Ensure all components listed are present. • If you are missing any of the components, call customer support at 951-493-7100. • Ensure you have all necessary tools before proceeding. • Do not attempt to work on your vehicle when the engine is hot. •...
- Page 3 A1/A2 THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF ADVANCED FLOW ENGINEERING, INC. ANY REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF ADVANCED FLOW ENGINEERING, INC. IS PROHIBITED. DRAWN "Draw APPROVED aFepower.com Page 3...
- Page 4 REMOVAL Figure A Refer to Figure A for Step 1 Step 1: Remove the radiator air outlet channel by removing the four screws securing it with a 7mm socket or nut driver. Page 4...
- Page 5 REMOVAL Figure B Refer to Figure B for Steps 2-3 Step 2: Disconnect the Mass Air Flow (MAF) Sensor harness. Step 3: Loosen the clamps at the throttle body and at the housing. Disconnect both vent hoses then remove the factory intake tube out of the vehicle. aFepower.com Page 5...
- Page 6 REMOVAL Figure C Refer to Figure C for Step 4 Step 4: Remove the two 10mm screws holding the factory intake box and pull it out of the mounting grommet then out of the vehicle. Page 6...
- Page 7 INSTALL Figure D Refer to Figure D for Steps 5-6 Step 5: Transfer the three mounting grommet from the factory air box to the aFe Housing. Step 6: Slide the filter into the housing and install the T-bolt clamps. Do not tighten yet. Page 7...
- Page 8 INSTALL Figure E Refer to Figure E for Step 7 Step 7: Install the aFe filter/housing assembly into the vehicle. Push it on the factory stud and secure it using the two factory 10 mm screws removed at step 4. aFepower.com Page 8...
- Page 9 INSTALL Figure F Refer to Figure F for Steps 8-10 Step 8: Remove the MAF sensor from the factory air box. Install it on the aFe tube using factory O-ring and supplied m4 screws. Step 9: Screw the two vent fittings into the aFe tube. Put some of the furnished threadlocker to assure a perfect seal.
- Page 10 INSTALL Figure G Refer to Figure G for Steps 11-13 Step 11: Install the aFe tube into the vehicle. Slide the tube first into the filter then the coupling over the throttle body. Align the tube correctly then tighten all clamps. Step 12: Reconnect the MAF sensor.
- Page 11 INSTALL Figure H Refer to Figure H for Steps 14-15 Step 14: Re-install the factory radiator air outlet. Step 15: Make sure all clamps and connections are secured. Your installation is now completed. Page 11...
- Page 12 Page left blank intentionally Page 12...
- Page 13 Page left blank intentionally Page 13...
- Page 14 P/N: 24-90080 P/N: 90-59999 P/N: 90-50001 Blue Squeeze Restore Kit Gold Aerosol Restore Kit Gold Squeeze Restore Kit aFe Power Hat P/N: 90-50501 P/N: 90-50000 P/N: 90-50500 P/N: 40-10114 S/M P/N: 40-10115 L/XL To purchase any of the items above, view airflow charts, dyno graphs, photos, and video; please go to aFepower.com.
-
Page 15: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 16 advanced FLOW engineering, inc. 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7100 x23 E-Mail:Tech@aFepower.com P/N: 06-80618...
