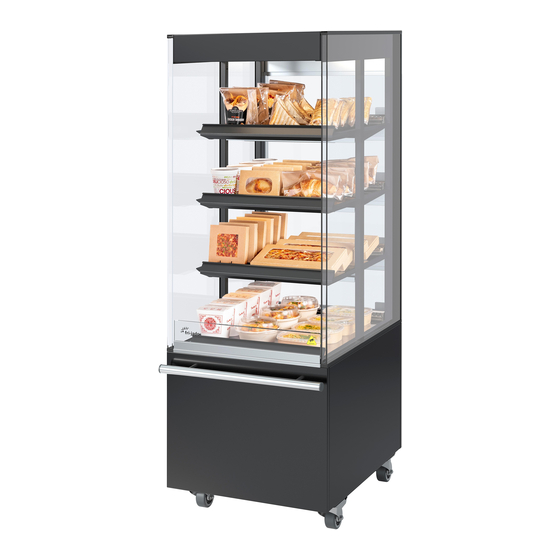

Fri-Jado MDD-60-4 Service Instruction
  1. Manuals
  2. Brands
  3. Fri-Jado Manuals
  4. Commercial Food Equipment
  5. MDD-60-4
  6. Service instruction

Fri-Jado MDD-60-4 Service Instruction

Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
9124723 Service Instruction
Installation front doors MDD 4-5 Level
The technician, working on the unit will be fully responsible for abiding the locally prevailing
safety rules and regulations.
Technical activities must be performed by qualified and authorized persons only.
Before working on any electrical part, or dismantling the unit by means of
using a screwdriver or any other tool,
ALWAYS REMOVE THE POWER PLUG from the main outlet.
9124723 Instruction front doors MDD 4-5 level
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDD-60-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Fri-Jado MDD-60-4

Summary of Contents for Fri-Jado MDD-60-4

  • Page 1 9124723 Service Instruction Installation front doors MDD 4-5 Level The technician, working on the unit will be fully responsible for abiding the locally prevailing safety rules and regulations. Technical activities must be performed by qualified and authorized persons only. Before working on any electrical part, or dismantling the unit by means of using a screwdriver or any other tool, ALWAYS REMOVE THE POWER PLUG from the main outlet.
  • Page 2 Version Door set Version Door set MDD-60-4 9398010 MDD-60-5 9398013 MDD-90-4 9398011 MDD-90-5 9398014 MDD-120-4 9398012 MDD-120-5 9398015 9124723 Instruction front doors MDD 4-5 level Page 2...
  • Page 3 Bottom Step 1. Remove Child guard: Refer service manual chapter replacement and adjustment. Remove front panel. Loosen mounting screws of child guard. (3x depending on unit length) Screwed from underneath. Remove Child guard. Position under beam on place of child guard. Fasten mounting screws.
  • Page 4 Step 2. Remove side glass: (MDD-60 hinge side only): (MDD-90 and MDD-120 both sides): Slide the double glass pane towards the front along the guiding rails. The side pane can be removed from the unit once it has slid entirety past the guiding rails.
  • Page 5 Step 5. Bottom Side Check placing bearing(s): in the door(s), one in the top, one at the bottom. Make sure the flange of the bearing sits opposite of the glass. Flange TOP Side Step 6. Place hinge pin into bearing. Step 7. Place distance ring on hinge pin.
  • Page 6 ! Step 20. Repeat step 14 till 19 for each front door, depending on MDD variation. Fri-Jado B.V. Blauwhekken 2 4751 XD Oud Gastel The Netherlands Tel: +31 (0) 76 50 85 400 9124723 Instruction front doors MDD 4-5 level...

This manual is also suitable for:

Mdd-90-4Mdd-120-4
