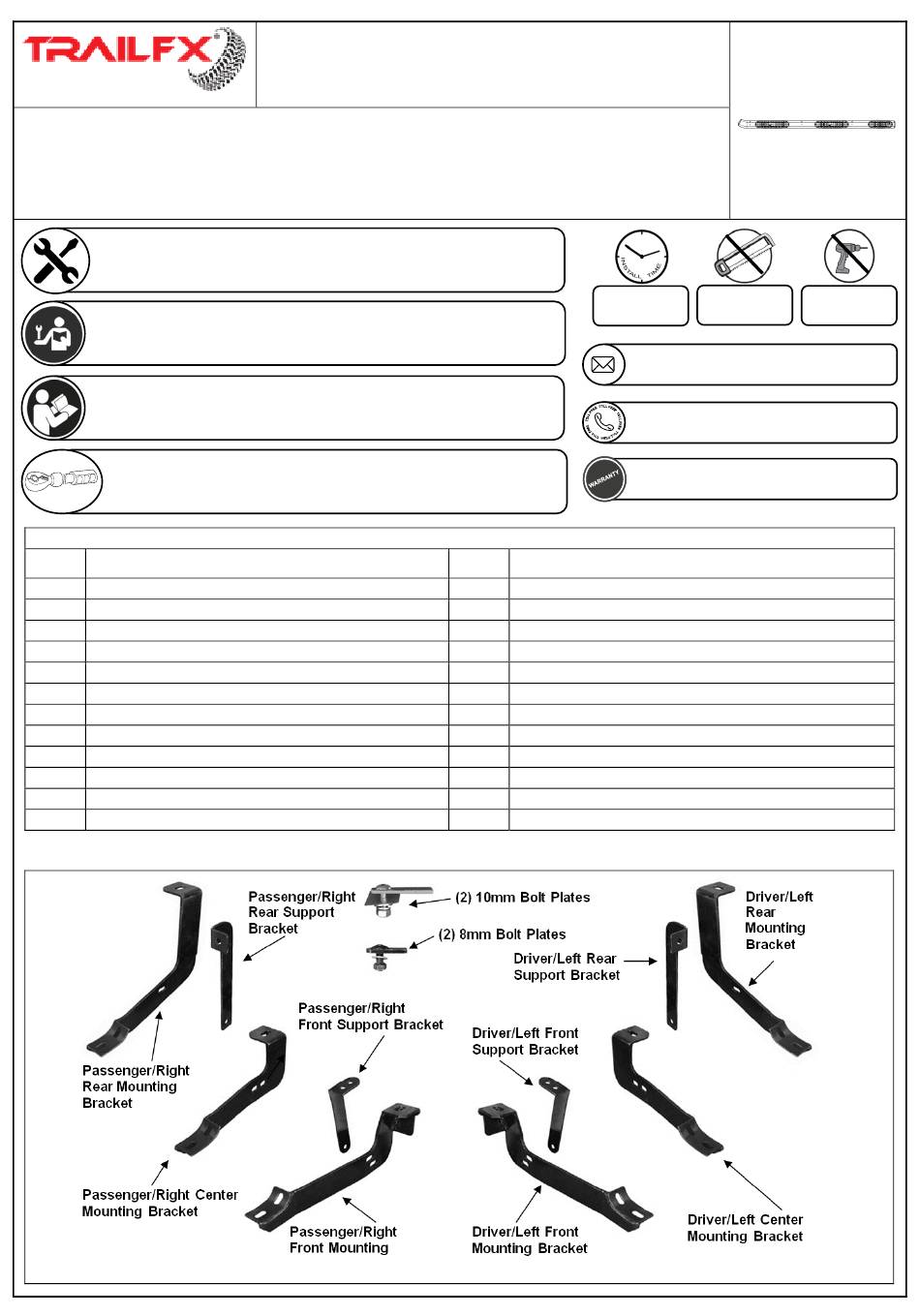

Fit: 1999-2013
Chevrolet Silverado/ GMC Sierra 1500 Extended Cab 6.5Ft Standard Bed
2001-2014
Chevrolet Silverado/GMC Sierra 2500HD/3500 Extended Cab 6.5Ft Standard Bed
1999-2004
Chevrolet Silverado/GMC Sierra 2500 Extended Cab 6.5ft Standard Bed
Excludes SS Models Excludes Vehicle with dual rear wheels Can fit in diesel
trucks
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Side Bar
1
Passenger/Right Side Bar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Side Center Mounting Bracket
1
Passenger/Right Side Center Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/Right Rear Mounting Bracket
1
Driver/Left Front Support Bracket
1
Passenger/Right Front Support Bracket
1
Driver/Left Rear Support Bracket
1
Passenger/Right Rear Support Bracket
Page 1 of 6
5" Oval W2W Nerf Bar
Part Description
Part No. A7024S/B
PARTS LIST:
Qty
2
10mm Button Head Bolt Plates
4
10-1.50mm x 30mm Hex Bolts
10
10mm x 20mm OD x 2mm Flat Washers
6
10mm Lock Washers
6
10mm Hex Nuts
2
10mm Plastic Retainers
2
8mm Button Head Bolt Plates
12
8-1.25mm x 25mm Hex Bolts
14
8mm ID x 24mm OD x 2mm Flat Washers
14
8mm Lock Washers
2
8mm Hex Nuts
Cutting Not
120-240 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
www.TrailFX.com
Drilling Not
Required
Rev 012819
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TrailFX A7024S
Summary of Contents for TrailFX A7024S
- Page 1 5" Oval W2W Nerf Bar Part No. A7024S/B Fit: 1999-2013 Chevrolet Silverado/ GMC Sierra 1500 Extended Cab 6.5Ft Standard Bed 2001-2014 Chevrolet Silverado/GMC Sierra 2500HD/3500 Extended Cab 6.5Ft Standard Bed 1999-2004 Chevrolet Silverado/GMC Sierra 2500 Extended Cab 6.5ft Standard Bed...
- Page 2 IMPORTANT ALERT: GM uses a very strong thread-locking compound on all body bolts. Use of an air assisted impact ratchet can cause damage to the threads on factory body mount bolts and the internal nut assembly because of this thread locking compound.
- Page 3 Locate the factory hole in the bottom of the floor panel next to the front body mount, (Figure 2). Select (1) 8mm Bolt Plate. Insert the Bolt Plate into the hole, (Figures 3A & 3B). Attach the driver side front Support Bracket to the Bolt Plate with (1) 8mm Lock Washer, (1) 8mm Flat Washer and (1) 8mm Hex Nut, (Figure 4).
- Page 4 Select the Center Mounting Bracket and bolt it in place with the factory body bolt as described in Step 2, (Figure 5). Do not tighten at this time. NOTE: The Center Bracket has (2) extra slots that will not be used for this installation.
- Page 5 Attach the driver side rear Support Bracket to the Bolt Plate with (1) 10mm Lock Washer, (1) 10mm Flat Washer and (1) 10mm Hex Nut, (Figures 9). Bolt the lower end of the Support Bracket to the front of the Rear Bracket with (1) 10mm x 30mm Hex Bolt, (2) 10mm Flat Washers, (1) 10mm Lock Washer and (1) 10mm Hex Nut, (Figure 10).
- Page 6 Product not installing properly. Ensure make model year, cab length and bed size of your vehicle is listed in the application. All installation steps are followed correctly. Check out these other TrailFX Products!! www.TrailFX.com Keystone Automotive Operations Inc. (KAO) warrants this product to be free of defects in material and workmanship at the time of purchase by the original retail consumer.
