Fits:
2009-Current
2010- Current
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT.
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION.
DO NOT OVER TORQUE. STANDARD OPERATING LOAD FOR TIGHTEN
BODY MOUNT NUTS & BOLTS VARIES FROM 45 TO 65 FOOT POUND.
Qty
1
Driver/Left Sidebar
1
Passenger/Right Sidebar
Driver/left Front, Passenger Center and Rear Mounting
3
Brackets
Passenger/right Front, Driver Center and Rear
3
Mounting Brackets
3
Support Brackets (DS Front & PS Center/Rear)
3
Support Brackets (PS Front & DS Center/Rear)
6
8mm Nut/Bolt Plates
6
8mm Plastic Retainers
18
8mm-1.25 x 30 Hex Bolts
Passenger/Right
Center and Rear
Support Brackets
Passenger/Right Front
Bracket (same as driver
center and rear brackets)
Driver/left Side Step
illustrated. Note front step
pad is slightly closer to
front end of tube
Page 1 of 7

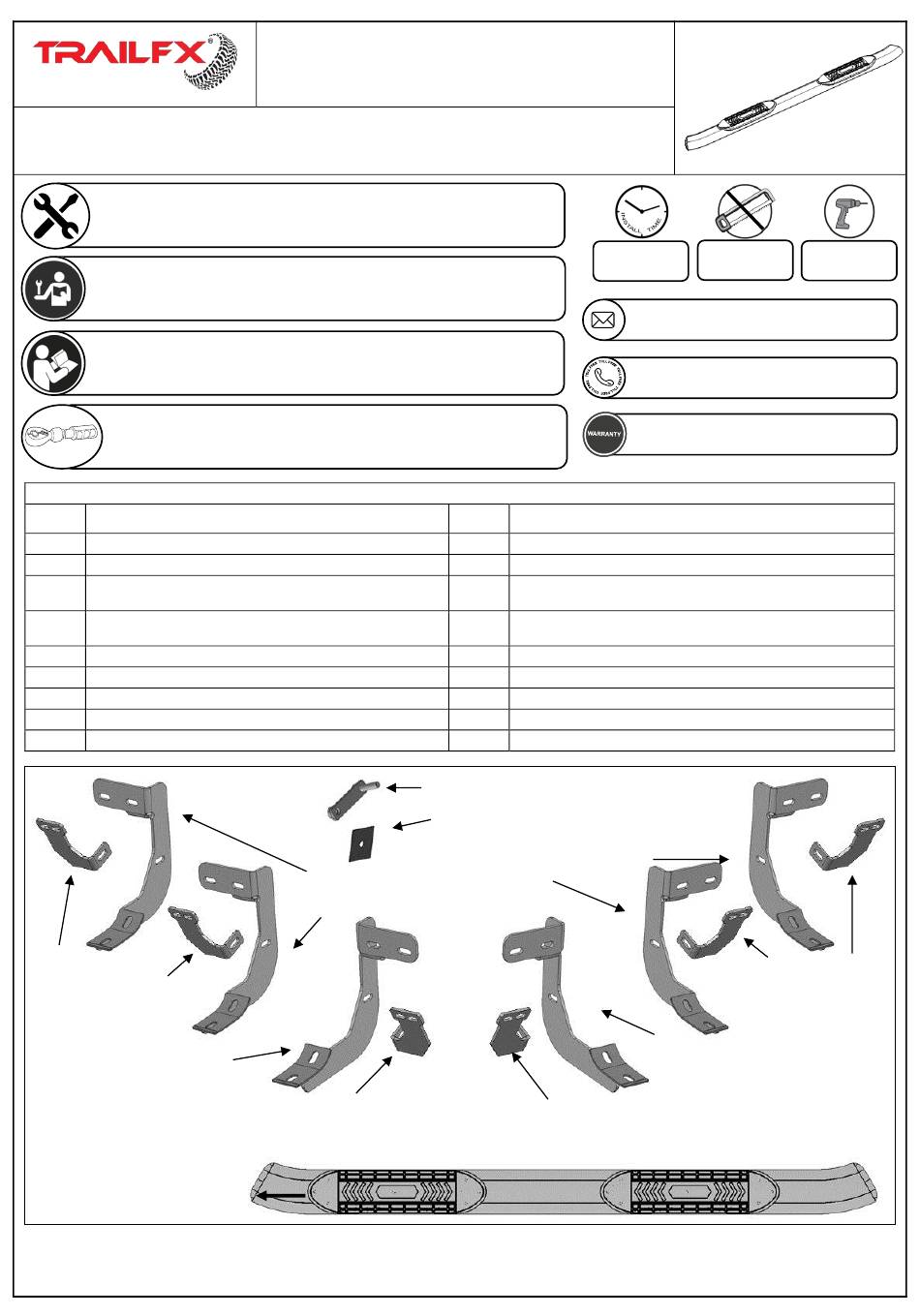

6" Oval Bent End Nerf Bar
Part No. A8247S /B
Dodge Ram 1500 Crew Cab
Dodge Ram 2500/3500 Crew Cab
Part Description
Passenger/Right Rear and
Center Mounting Brackets
Passenger/Right Front Support
Bracket (same as driver center
and rear brackets)
Front
PARTS LIST:
Qty
24
8mm x 24mm x 2mm Flat Washers
12
8mm Lock Washers
6
8mm Hex Nuts
6
8mm Nylon Lock Nuts
12
8mm-1.25 x 25mm Combination Hex Bolts
12
6mm x 25mm Hex Bolts
24
6mm x 22mm x 2mm Flat Washers
12
6mm Nylon Lock Nuts
(6) 8mm Bolt x 8mm Nut Plates
(6) Plastic Retainers
Driver/Left Center and Rear
Mounting Brackets
Driver/Left Front Support
Bracket (same as passenger
center and rear brackets)
Cutting Not
60-180 min
Required
support@trailfx.com
1 866 638 4870
POLISHED STAINLESS STEEL – LIMITED LIFETIME
POWDER COATED BLACK – 3 YEARS
Part Description
Driver/Left Center and
Rear Support Brackets
Driver/Left Front Mounting
Bracket (same as passenger
center and rear brackets)
www.TrailFX.com
Drilling May Be
Required
Rev 040418
