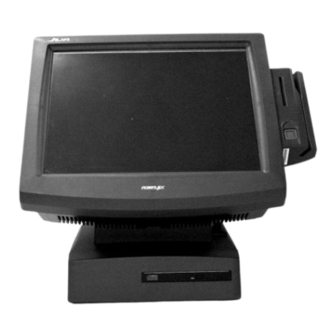

Jiva TP - 5815 Pro/ - 8015
/ TP – 5815N Pro/ – 8015N Series
Touch Terminal
User's Manual
Rev.: C1
FCC Notes:
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions manual, may cause interference
to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.
Warranty Limits:
Warranty terminates automatically when any person other than the authorized
technicians opens the machine. The user should consult his/her dealer for the problem
happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
About This Manual:
Posiflex has made every effort for the accuracy of the content in this manual. However,
Posiflex will assume no liability for any technical inaccuracies or editorial or other
errors or omissions contained herein, nor for direct, indirect, incidental, consequential
or otherwise damages, including without limitation loss of data or profits, resulting
from the furnishing, performance, or use of this material.
This information is provided "as is" and Posiflex Technologies, Inc. expressly
disclaims any warranties, expressed, implied or statutory, including without limitation
implied warranties of merchantability or fitness for particular purpose, good title and
against infringement.
The information in this manual contains only essential hardware concerns for general
user and is subject to change without notice. Posiflex reserves the right to alter product
designs, layouts or drivers without notification. The system integrator shall provide
applicative notices and arrangement for special options utilizing this product. The user
may find the most up to date information of the hardware from web sites:
http://www.posiflex.com or http://www.posiflex.com.tw or http://www.posiflexusa.com
All data should be backed-up prior to the installation of any drive unit or storage
peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product.
All rights are strictly reserved. No part of this documentation may be reproduced,
stored in a retrieval system, or transmitted in any form or by any means, electronic,
mechanical, photocopying, or otherwise, without prior express written consent from
Posiflex Technologies, Inc. the publisher of this documentation.
© Copyright Posiflex Technologies, Inc. 2009
All brand and product names and trademarks are the property of their respective holders.
Part 1
P/N: 16320900040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jiva 5815 Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX Jiva 5815 Pro

  • Page 1 About This Manual: Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex will assume no liability for any technical inaccuracies or editorial or other errors or omissions contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including without limitation loss of data or profits, resulting from the furnishing, performance, or use of this material.
  • Page 2 ALERT TO OUR HONORABLE CUSTOMERS: l Please always read thoroughly all the instructions and documents delivered with the product before you do anything about it. Don’t take any premature action before you have a full understanding of the consequences. l This product contains inside a Lithium battery and maybe also a sealed type Lead acid battery if the UPS battery option is ordered.
  • Page 3: Product Pictures

    INTRODUCTION PRODUCT PICTURES Front Views Slim Base Models Universal Base Models Slim Base Models Universal Base Models Side Views Slim Base Models Universal Base Models Slim Base Models Universal Base Models Part 3...
  • Page 4: Parts Identification

    Rear Views Slim Base Models Universal Base Models Bottom Views Slim Base 3.5” HDD Universal Base 3.5” HDD Slim Base 2.5” HDD Universal Base 2.5” HDD PARTS IDENTIFICATION Main unit Touch panel / LCD panel Optional side mount kit Power status indicator Universal base stand Optional CDROM drive Slim base stand...
  • Page 5: Product Features

    11. Optional rear top mount kit PD-302 12. Lock / release button for main unit detach 13. Power switch 14. Rear connect cover 15. Power connector hole 16. Cable exit 17. 2 cable exit 18. Auxiliary cable exit 19. Rubber feet 20.
  • Page 6 4. one parallel port 5. 5 USB ports for TP-5815N Pro and 6 USB ports for TP-8015N 6. one LAN port 10/100 base T Ethernet upgradeable to 1 Gbps 7. one external VGA monitor port 8. one IDE connector and HDD power connector for HDD in base 9.
  • Page 7 USB interface external slim type CD ROM drive or COMBO drive Internal slim type CD ROM or COMBO drive in universal base models UPS battery in base Preload OS 2 in 1 cash drawer control cable (CCBLA-238) Interface select for resistive touch panel among PS2 (for TP-8015N only), RS232 and USB Wall mount kit: WB-6000VB, WB-6300, WB-6600, WB-6800 Major Model Numbers:...
  • Page 8: Opening Cable Cover

    INSTALLATION GUIDES CAUTION: Before any installation or cable connection to the set, please always make certain that the system is turned off and the external power source to the set is removed to prevent electric hazard! Never touch any metal pin in the connectors or circuits to avoid high voltage hazard or electrostatic discharge damage unless the operator is well grounded.
  • Page 9: Separating Main Unit

    SEPARATING MAIN UNIT In order to settle the touch terminal properly in a point of service system, all the cable connections have to be routed through its base, either slim or universal. Therefore, please observe the procedures from A to C below to separate the main unit from both slim and universal base stand assembly after all cables in cable cover disconnected.
  • Page 10: Cable Passage

    portion) will look like the right picture. Both with numbered items listed as below. However, there could be some variation to the contents inside depending on what option items actually installed. When the HDD installed is the 2.5” type, the HDD mounting bracket and the bottom plate will also look different.
  • Page 11: Wall Mounting

    as in left picture. Put the battery in at the other end first and remount the bracket with its tongue matching under a bridge in the wall of base box from the right as arrowed in above left picture then apply the fixing screw. Please pay particular attention to the environment requirements for UPS battery in next chapter “USING THE TOUCH POS”.
  • Page 12: Base Mount Upgrade Kit

    mount backpack. Connect all cables coming out of the backpack into the cable cover area of main unit. The area required for wall mount application is determined by the main unit dimensions and is 375 mm in width and 315 mm in height. BASE MOUNT UPGRADE KIT On rear edge of the stand assembly for desktop mount application, there is a rear connect...
  • Page 13: Routing The Cables

    Please consult your dealer for technical support on setup of these jumpers. Please note that only those qualified technicians may adjust in the service window with information from Posiflex and the contents in the service window may change without notice as time develops.
  • Page 14: Desktop Mounting

    DESKTOP MOUNTING Matching Holes Matching Pegs Round Part Slot Part Removal Hollow Match the matching pegs on the back of the main unit against the matching holes on the stand assembly. First aim the matching pegs toward the upper round part of the hole and make sure that all pegs are inside the holes. Then slide the main unit down to move the pegs into the lower slot part of the holes till it clicks.
  • Page 15: Operating System Recovery

    OPERATING SYSTEM RECOVERY For Jiva systems preloaded with Windows XP Pro or WEPOS on HDD, Posiflex provides recovery CD or DVD delivered with the touch terminal for the preloaded operating system. The System Integrator shall take care of software restoration after OS recovered. A Posiflex supplied USB interface CDROM or COMBO drive or the internal type IDE interface CDROM or COMBO drive for the universal base models will be required for such action.
  • Page 16: Application Environment

    USING THE TOUCH TERMINAL APPLICATION ENVIRONMENT It is very important to check the following operational guidelines: Ventilation This terminal must NOT be used in an environment with restricted ventilation. There must be at least 25 mm air clearance around any ventilation holes with a free flow of air around the unit at ALL times for the installation.
  • Page 17: Power On/Off

    Power Supply The operating voltage range of the power adaptor should cover the local power supply for proper operation. The power cable, the power outlet and any power fusing arrangements must conform to local safety regulations. Please never do any connection / disconnection when system is still powered on.
  • Page 18: Display Issues

    The VGA port in the Jiva system supports Posiflex stand alone touch or LCD monitors like TM-4115, LM-6212 or TM-7112 if there is no base mount 2 LCD display. This port supports extended mode dual display function in WinXP. To support the DC power to these Posiflex monitor, use Part 18...
  • Page 19: Customer Display

    DC adaptor for TM-4115 / TM-7112. Connect the adaptor to VGA cable or use Posiflex VGA + power cable and set an internal jumper in the main unit to supply the required power through the VGA connector for LM-6212. Do not connect other monitor to this port before the power in this port is disabled.
  • Page 20: Touch Panel

    Posiflex Touch Terminal Manager A program named “Posiflex Touch Terminal Manager” and a right- click sticky button tool in the program group “Posiflex Tools” is installed in the preloaded Windows system with a PS/2 interface touch panel controller in TP-8015N. This program can also be T31454 警告使用者...
