Jiva (TP-5815 Pro)
MANUFACTURED BY:
ISO-9001
AN
6,WU-CHUAN RD., HSIN-CHUANG TEL: 886-2-2991599 (REP.) FAX: 886-2-2991819, 2991808
(WU-KU INDUSTRIAL ZONE)
TAIPEI HSIEN, TAIWAN
SERIES

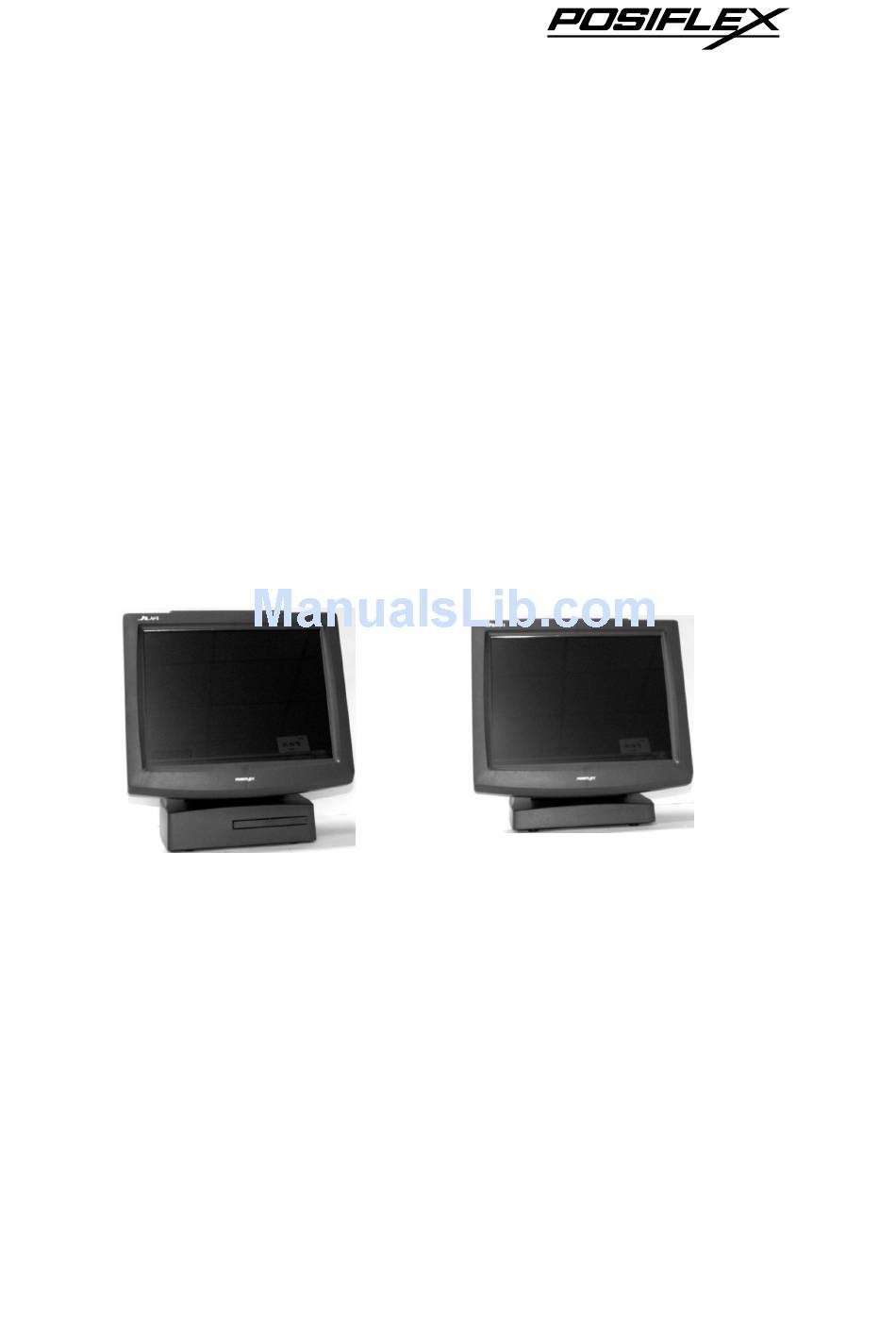

TECHNICAL MANUAL
WORK STATION
Rev. : Original
POSIFLEX TECHNOLOGIES, INC.
ISO-14001
AND
http://www.posiflex.com
http://www.posiflexusa.com
CERTIFIED MANUFACTURER
http://www.posiflex.com.tw
EMAIL: posiflex@posiflex.com.tw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jiva TP-5815 Pro series and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX Jiva TP-5815 Pro series

Summary of Contents for POSIFLEX Jiva TP-5815 Pro series

  • Page 1 Jiva (TP-5815 Pro) SERIES TECHNICAL MANUAL WORK STATION Rev. : Original POSIFLEX TECHNOLOGIES, INC. MANUFACTURED BY: ISO-9001 ISO-14001 CERTIFIED MANUFACTURER 6,WU-CHUAN RD., HSIN-CHUANG TEL: 886-2-2991599 (REP.) FAX: 886-2-2991819, 2991808 (WU-KU INDUSTRIAL ZONE) http://www.posiflex.com http://www.posiflex.com.tw TAIPEI HSIEN, TAIWAN http://www.posiflexusa.com EMAIL: posiflex@posiflex.com.tw...
  • Page 2 POS application to utilize the hardware of the Jiva (TP-5815 Pro) series which is a member of the POSIFLEX integrated point-of-sale terminal product family. The Jiva (TP-5815 Pro) is a compact point-of-sale system that gives the most user friendly application interface by providing a touch control LCD panel and combines the performance and affordability of personal computers with the elegance and reliability of business machine.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS OVERVIEW ..........1 - 1 SCOPE .
  • Page 4 SIDE MOUNT UPGRADE KIT KP100 ....2 - 7 ......2 - 8 Programmable keypad .
  • Page 5 UPS BATTERY CONNECTOR ......4 - 2 LAN PORT ......... . 4 - 2 VGA CONNECTOR .
  • Page 6 POSIFLEX TOOLS ........5 - 10...
  • Page 7 . . . 5 - 18 REMARKS FOR USB TOUCH IN DOS APPLICATION RS232 TOUXH DRIVER ......5 - 19 SOFTWARE COMMAND INDEX .
  • Page 8 SOLDER SIDE ....... . . 6 - 9 JUMPERS AND CONNECTORS ....6 - 9 .
  • Page 9 ....7 - 8 To install the later version 2.5” HDD ... . 7 - 8 To remove the 2.5”...

  • Page 11: Overview

    OVERVIEW SCOPE The Jiva (TP-5815 Pro) series is a series of fully integrated PC based Point-Of- Sale terminals. These series provide the best performance and the most user-friendly interface for Point-Of-Sale, Hospitality and Kiosk systems with a VIA CPU of C7 1G.. This series also provides an industrial-use touch control panel over the 15”...
  • Page 12 4 Serial Ports with capability for +5V DC support with COM3/4 in form of 10 pin compatible modular RJ45 jacks with 2 pcs of conversion cables included in delivery d. 1 parallel port 5 USB 2.0 ports 1 LAN port 10/100 base T Ethernet g.

  • Page 13: Optional Items

    Internal CD ROM / DVD drive in base (for universal base model only) h) USB interface external slim type CD-ROM/CD-RW/DVD-ROM drive Posiflex cash drawers (CR-3100 /CR-3200 /CR-4000 /CR-4100 /CR-6210) 2 in 1 split cash drawer control cable 21863023800 k) Wireless LAN in USB interface...

  • Page 15: General Specification

    GENERAL SPECIFICATION SYSTEM l CPU: VIA C7 1G or above l DDR2 DIMM : 256 MB (expandable to 2GB in 2 modules) l Built-in 3.5” HDD 40 GB above in IDE interface in base POWER SOURCE DC power adaptor: Item Specification Voltage range of adaptor input 100 ~ 240 V AC...

  • Page 16: Ups Support (Battery Option)

    UPS SUPPORT (battery option) l Supports system operation for up to 30 min. depending on loading condition l Green LED turned on when adaptor power stand-by l Blue LED flashes and system beeps when UPS battery starts working and discharging, and Green LED flashes when UPS battery near to end l Working on UPS battery status can be detected through COM1 status port 12VDC POWER SUPPLY INTO SYSTEM l O / P : 12 +/- 1 V DC 6.6 Amp.

  • Page 17: Hdd In Base

    HDD IN BASE l 40 GB or above operating up to ultra ATA133 l Set as primary master IDE device TOUCH PANEL l Touch control interface: USB mouse emulation (optional RS232 interface for IR type) l Sensor type: resistive (InfraRed type optional) l Resolution: 1024 x 1024 l Calibration: initial calibration at setup only, no re-calibration required for day to day power on/off...

  • Page 18: Audio Port

    AUDIO PORT l 3.5 Ø mono jack for Mic. In l 3.5 Ø stereo jack for audio out l 30 db gain for microphone input l Input impedance 64 KOhm l Output 3.3 Vp-p with max. output impedance 200 Ohm l Line output power 50 mW / 8 Ohm l Band width 20 Hz ~ 19.2 K Hz l Output 1.0 W amplifier (in mono signal to internal speaker)

  • Page 19: Environmental

    ENVIRONMENTAL l TEMPERATURE RANGE: (excl. UPS battery) Operating: 0°C ~ +40°C or 32°F ~ 104°F Non-operating: -20°C ~ +60°C or -4°F ~ +140°F l TEMPERATURE RANGE for UPS battery Operating: 0°C ~ +40°C or 32°F ~ 104°F Non-operating: -20°C ~ +40°C or -4°F ~ +104°F l HUMIDITY RANGE: Operating: 20%RH ~ 80%RH, non-condensing max.

  • Page 20: Options

    OPTIONS SECOND DISPLAY ON REAR BASE Model Number LM6101 LM6301 Display Type COLOR TFT 12.1” COLOR TFT 15.0” View area 245.8 X 184.3 mm 304.1 X 228.1 mm Interface Luminance 180 cd/m 250 cd/m Backlight CCFL x 1 CCFL x 2 Contrast Ratio 350 : 1 500 : 1...

  • Page 21: Dram Expansion

    Dark blue Green (505 nm) w/ Display color / Yellow green Blue filter Background 216.2 x 157.05 x Display area (mm x mm) 142.8 x 20.64 32.325 22.86 217 x 196.7 x Display head size (mm) 260 x 65 x 197 x 56 x 80.5 x 57.5 x...

  • Page 22: Programmable Keypad

    l USB or PS/2 KB interface for keypad & MSR l USB interface for smart card reader l PROGRAMMABLE KEYPAD: 1. 16 key numeric keypad with a double sized “Enter” key 2. 24 programmable single keys of size 19 x 19 mm l MAGNETIC STRIPE READER: 1.

  • Page 23: Magnetic Stripe Reader

    1. Detection area : 14.6 x 18.1 mm (nominal at center) 2. Gray scale : 8 bits (256 levels) 3. Resolution : 512 dpi (average x, y over the field) l MAGNETIC STRIPE READER: 1. Reader head options: Reader head options: ISO 2 tracks (track 1 + track 2);...

  • Page 24: Wall Mount Kits

    WALL MOUNT KITS l Devices installable in backpack of each kit type are as below: KIT NAME DEVICES N. A. WB-6000 WB-6300 2.5” HDD, UPS battery 3.5” HDD, UPS battery WB-6600 WB-6800 Power adaptor, 2.5” HDD, UPS battery, CDROM/DVD drive PRINTER: PP-2000 1.

  • Page 25: Pp-7000Ii

    PP-7000U USB interface All other features same as PP7000II PP-7700 1. Posiflex wireless connection 2. Requires a dongle DG2000 connected on COM port of host to control 3. All other features same as PP7000II TP-5815 Pro series Technical Manual 2 - 11...

  • Page 27: Reliability Specification

    RELIABILITY SPECIFICATION l POWER ADAPTOR MTBF: 50,000 HRS l TOUCH PANEL LIFE EXPECTANCY: 35,000,000 UP TOUCHES AT SAME SPOT l LCD BACK LIGHT LIFE EXPECTANCY: 40,000 HRS l HDD MTBF: 50,000 HRS DISPLAY LCD BACK LIGHT LIFE EXPECTANCY: LM6101: 10,000 HRS LM6301: 30,000 HRS l CUSTOMER DISPLAY LIFE EXPECTANCY: PD2501: 30,000 HRS...
  • Page 28 l MOTHER BOARD MTBF: 50,000 HOURS l POWER SWITCH LIFE EXPECTANCY: 10,000 STROKES TP-5815 Pro series Technical Manual 3 - 2...

  • Page 29: System Definitions

    SYSTEM DEFINITIONS BLOCK DIAGRAM PS/2 PS/2 DDR2 533 Touch Panel Mouse Port Mouse MNGR DIMM CCFL LCD Panel PS/2 KB Battery Circuit Port Touch CCFL VIA C7 1G in Controller Signal Inverter 12 V DC nanoBGA2 PSU Circuit Adaptor Riser Card 0 ~ 4 Device CN700 (NB)

  • Page 30: 12 V Dc In Connector

    12 V DC IN CONNECTOR PIN ASSIGNMENT OF 4 PIN PLUG: PIN # DEFINITION +12 V +12 V CASE CASE CHASSIS GND UPS BATTERY CONNECTOR PIN ASSIGNMENT OF 4 PIN SOCKET: PIN # DEFINITION +12 V +12 V PIN 1 LAN PORT PIN ASSIGNMENT OF 8 PIN TELEPHONE JACK: PIN # DEFINITION...

  • Page 31: Vga Connector

    VGA CONNECTOR l This port is a standard 3 x 5 D-sub VGA connector PIN # DEFINITION PIN # DEFINITION PIN # DEFINITION NCID0 GREEN DDC_DATAID1 BLUE HSYNC NCID2 NC/+12VKEY VSYNC DDC_CLKID3 SERIAL PORT COM1 PIN ASSIGNMENT OF 9 PIN D SUB MALE CONNECTOR: PIN # DEFINITION ALTERNATIVE DEFAULT SETTING BATTWK...

  • Page 32: Serial Port Com2/3/4

    SERIAL PORT COM2/3/4 PIN ASSIGNMENT OF MALE DB9 – 10 pin RJ45 CONVERSION CABLE: DB9 RJ45 PIN # PIN # DEFINITION ALTERNATIVE DEFAULT SETTING +5 VDC N. C. • COM3 and COM4 appear in form of RJ45 type 10 PIN 1 pin modular connectors like the right drawing.

  • Page 33: Parallel Port Lpt1

    PARALLEL PORT LPT1 PIN ASSIGNMENT OF 25 PIN D SUB FEMALE CONNECTOR: PIN # SPP MODE EPP MODE ECP MODE - STROBE -WRITE -STROBE - ACK INTR -ACK BUSY -WAIT BUSY, PeriphAck Perror, -AckReverse SLCT SLCT - AUTO FEED -Datastb -AutoFeed, HostAck - ERROR -Fault, -PeriphRequest...

  • Page 34: Ps/2 Keyboard Connector

    PS/2 KEYBOARD CONNECTOR PIN ASSIGNMENT OF 6 PIN MINI-DIN FEMALE CONNECTOR: PIN # DEFINITION KBDAT KBCLK PS/2 MOUSE PIN ASSIGNMENT OF 6 PIN MINI DIN JACK: PIN # DEFINITION PMDAT PMCLK USB0 / USB1 / USB 2 / USB 3 / USB 4 PIN ASSIGNMENT OF EACH 4 PIN JACK: PIN # DEFINITION...

  • Page 35: Ata Ide Connector

    ATA IDE CONNECTOR l This port is a regular 40 pin IDE connector with housing. This port is the primary IDE channel and can be connected to 1 master (and 1 slave for option CDROM drive in universal base) device in base. HDD POWER CONNECTOR l This connector is a small 4 pin connector with housing PIN ASSIGNMENT OF 4 PIN CONTACTS:...

  • Page 36: Cash Drawer Controller

    CASH DRAWER CONTROLLER PIN ASSIGNMENT FOR RJ-11 JACK: PIN # DEFINITION CASH DRAWER SOLENOID INPUT 2 DRAWER OPEN INDICATOR +12 VDC FOR SOLENOID INPUT CASH DRAWER SOLENOID INPUT 1 l This is a RJ11 type 6 pin modular jack for cash drawer control providing control ability over two cash drawers.

  • Page 37: Application Guides

    APPLICATION GUIDES POWER SUPPLY TO I/O PORTS In service window area on solder side of the main board, jumper JP11 determines the +5V DC supplies to the devices connected to COM1/COM2 and jumper JP1 on LPC adaptor card that is installed over the IDE connector area and is connected to CN9 on the main board determines the +5V DC supplies to the devices connected to COM3/COM4 separately.

  • Page 38: Software System Backup

    SOFTWARE SYSTEM BACKUP When the system integrator purchases the POS system with preloaded OS from Posiflex, he gets a bonus support of system protection function. In the OS boot process, there are few seconds of system protection function entry screen. Pressing the three key combination of “Ctrl”...

  • Page 39: Extended Dual Display Mode

    The IDE & HDD power connectors support an HDD in base for TP-5815 Pro and plus one optional Posiflex provided internal slim type CD ROM drive in base for universal base model through different set of cables. This CD ROM drive is defined as the slave device in the IDE channel and can read data in 24 x speed.

  • Page 40: Power On/Off Control

    POWER ON/OFF CONTROL EXTERNAL POWER SWITCH Whenever the Jiva TP-5815 Pro series is to be powered on for the first time after connected to external AC power, this switch must be engaged to turn on the power. This switch is originally an “ON/OFF” power switch. It can be programmed into a power “ON”...

  • Page 41: Forced Power Off

    that case the programmer has to program the command to close the application programs (just like “Alt+F4” in Windows), and then at the end of the closing operation, the application program should issue the above mentioned software switch off command string to COM1 under the protocol: 9600 bps, parity none, 8 data bits, 1 stop bit.

  • Page 42: Ups Battery

    UPS BATTERY The optional UPS battery is a maintenance-free lead-acid battery and is targeted to support basically the data preservation and smooth running of the system during intermittent power failure. This battery is not designed for prolonged power support to the system against power shutdown. That means, when the AC power outage is known to last for more than few minutes, it is advisable to turn off the system instead of using the battery up while repeatedly using it up reduces the battery life dramatically.

  • Page 43: Ups Battery Health Check

    UPS BATTERY HEALTH CHECK The UPS battery health check watchdog function is introduced in the Posiflex Power Switch Manager utility version 1.03 onwards. This function helps checking the UPS battery condition and automatically popping up warning message window to remind the user of a possibly failed battery so that the user won’t have to bother checking in the Posiflex Power Switch Manager personally every time.

  • Page 44: Automatic Power On Control

    power, the DCD signal of COM1 (BATTWK signal) is set (value = 1). The DCD signal is obtained as the bit 7 (the most significant bit) of the I/O address 3FEh if the COM1 address is set to 3F8h~3FFh (conventional address for COM1) in system configuration.

  • Page 45: Fingerprint Sensor

    LAN. Both machines should be using same brand of LAN chip. First the MAC address of the target machine should be checked. Please obtain the file “RSET8139.EXE” from Posiflex Product Information CD in subfolders like \Drivers\KS631X\LAN_621 and execute this file on the target machine. Select the item “View Current Configuration”...

  • Page 46: Posiflex Tools

    (SLE4418/28), SDA/I2C, 4403, 4433, 4404, 896 etc. It communicates with the system as USB 2.0 full speed device. POSIFLEX TOOLS In the preinstalled OS there will be a program group named “POSIFLEX Tools” for specific Posiflex device(s) installed. POSIFLEX POWER SWITCH MANAGER...

  • Page 47: Power Off Delay Time

    For systems with MSR on PS/2 interface KP-100 kit, the “Posiflex MSR Manager” from \Drivers\KP\KBMSR\MSR_xxx shall be installed. It operates in similar way to the Posiflex USB MSR Manager. When the PS/2 MSR in KP-100 is used under DOS environment, please copy the \Drivers\KP\KBMSR\DOS\MSR.exe to the root directory and execute it to generate a “MSR.dat”...

  • Page 48: Enable Msr Tuning

    ENABLE MSR TUNING This check box appears only in earlier versions of Posiflex MSR Manager and determines whether the hardware jumper setting on KP-100 control board or the software setting takes control over the reader output format. The “Posiflex MSR Init”...

  • Page 49: Msr Will Send The Leading Code

    MSR WILL SEND THE LEADING CODE In data encoding of the magnetic stripes, each tracks are separated with each start/end sentinels. However the user may decide whether to send codes of/for these sentinels or not depending on the requirement of the application software. The MSR will always send a “CR”...

  • Page 50: Send Lrc

    This consideration involves mostly of the Alt-Num emulation and the intercharacter delay. PROGRAMMABLE KEYPAD When a upgrade kit PS/2 interface KP-100 or USB interface KP-100U is preinstalled in this system, an utility called “Posiflex Programmable Keyboard” or “Posiflex Programmable Keyboard”...

  • Page 51: The Command Menu

    The “Edit” menu helps the editing operation like copy, paste or clear the programmed content of a programmable key. Please ignore any gray command relating to “Page” that is applicable only to other models of Posiflex programmable keyboard and remains here only for consistency consideration. Same comment applies to the gray “View”...

  • Page 52: Posiflex Usb Touch Manager

    Most items in this utility should be easily understandable to average user. Followings are just some reminders on some items. Calibrate – This button engages the “Posiflex USB Touch Calibrator”. Edge Acceleration – This function engages the “Posiflex USB Touch Edge Acceleration Tool”...

  • Page 53: Usb Touch Calibrator

    Touch Point Dots – This list button selects the size of touch point on touch panel. A too small touch size makes the mouse cursor jumpy or even bouncing. A too large touch size results in unsatisfactory touch accuracy. Reset To Default – This button resets all touch parameters. Enable PIR –...

  • Page 54: Usb Touch Edge Acceleration Tool

    USB TOUCH EDGE ACCELERATION TOOL This program helps to find the hidden taskbar or thin scroll bar through touch. Enable ... – Each check box determines whether or engage edge acceleration against which edge of screen. Margin – This list button selects the range to engage edge acceleration toward the edge before the edge is reached.

  • Page 55: Rs232 Touxh Driver

    Please find the subfolder \Drivers\KS631X\TOUCH\IR in the Posiflex Product Information CD and study the “readme” file before executing the “setup” program should there be any need for a driver re-installation. Make sure you select “COM2”...
  • Page 56 2 different spots. The port selection for “Touchscreen on:” must be set to “COM5” for the touch panel over the LCD panel in this product series. In case a Posiflex touch monitor is connected to the VGA port for 2 display, the touch function of the second display monitor has to be connected to one of the ports from COM2 to COM4.

  • Page 57: Software Command Index

    SOFTWARE COMMAND INDEX Following table is a collection of software command applicable to the Jiva TP- 5815 Pro series for a quick look up. The page number listed could deviate from the display of this file if different viewer is utilized. Usage of the Command Page Chapter Section / Subsection...

  • Page 59: Hardware Details

    HARDWARE DETAILS MAIN BOARD COMPONENT SIDE Notation Remarks: 1. A small black block or a small number “1” KBMS1 drawing for a JP11 JP12 jumper or an AUDIO1 IC is used to LAN1 indicate CN12 position pin number 1. JP13 JP14 JP22 small number...

  • Page 60: Solder Side

    SOLDER SIDE Notation Remarks: 1. A small black block or a small number “1” drawing for a jumper or an IC is used to indicate position pin number 1. small number “2” marked near a corner of a jumper with 2 rows of pins BAT1 used...

  • Page 61: Jumpers And Connectors

    JUMPERS AND CONNECTORS ON COMPONENT SIDE Position Part Spec Usage AUDIO1 3.5Ø Jacks Audio Port BAT2 Socket 1x4 UPS Battery Connector Buzzer System buzzer HDR 1x4 w/H Rt Power Connector for External IDE Device HDR 1x3 +L Exhausted Fan Connector 3x USB Jack 3x USB Connector HDR 1x3 +L...

  • Page 62: On Solder Side

    HDR 1x3 Deleted JP14 HDR 2x5 Deleted JP15 HDR 2x2 Deleted (Internal IDE Master/Slave Select) KBMS1 2x mini DIN 6p PS2 KB & PS2 Mouse Connector LAN1 Composite Conn. LAN & 2xUSB Connector LCD1 Slot 60p Riser Card Slot LED1 HDR 1x3 Rt LED Connector LPT1...

  • Page 63: Jumper Settings

    Please note that the 5 V DC supply should be selected only for supporting the Posiflex serial devices that are designed to be powered from this source. Whenever such Posiflex device is to be removed from this port, the 5 V DC supply must be deselected.

  • Page 64: Software Awareness Of Ups Status

    SOFTWARE AWARENESS OF UPS STATUS STATUS OF JP13 ON SOLDER SIDE COM1 PIN1 SIGNAL 1 – 2 short Normal (DCD signal) « 2 – 3 short Detect UPS status The UPS status is used to inform the software the power source the system is operating on (AC adaptor or UPS battery).

  • Page 65: Riser Card (Lt-057 For No Touch)

    RISER CARD (LT-057 for no touch) COMPONENT SIDE SOLDER SIDE CONNECTORS ON SOLDER SIDE Position Part Spec Usage RT HDR 1x4 W/H To Inverter HDR 2x10 W/H To LVDS LCD Panel TP-5815 Pro series Technical Manual 6 - 7...

  • Page 66: Riser Card (Tp-058 For Rs232 Touch)

    RISER CARD (TP-058 for RS-232 touch) COMPONENT SIDE SOLDER SIDE CONNECTORS ON SOLDER SIDE Position Part Spec Usage RT HDR 1x4 W/H To Inverter CONN 50 pin FPC To IR touch Frame HDR 2x10 W/H To LVDS LCD Panel TP-5815 Pro series Technical Manual 6 - 8...

  • Page 67: Riser Card (Tp-059 For Usb Touch)

    RISER CARD (TP-059 for USB touch) COMPONENT SIDE SOLDER SIDE JUMPERS AND CONNECTORS ON COMPONENT SIDE Position Part Spec Usage HDR 1x4 Reserved (Debug) RT HDR 1x7 To Touch Panel HDR 1x6 w/H mini Reserved (F/W download) HDR 2x4 USB Touch Setup ON SOLDER SIDE Position Part Spec...

  • Page 68: Jumper Settings

    JUMPER SETTINGS The “«” marks in the following tables denote the factory default settings. USB TOUCH SETUP STATUS OF JP2 APPLICABLE OS « 1 – 2 short, 5 – 6 open Windows (Win98, Win2000, WinXP) 1 – 2 open, 5 – 6 open Linux or WinCE 1 –...

  • Page 69: Lpc Adaptor Card

    LPC ADAPTOR CARD TP-070 COMPONENT SIDE BKT1 BKT2 SOLDER SIDE JUMPERS AND CONNECTORS ON COMPONENT SIDE Position Part Spec Usage COM1 RJ45 JACK COM3 Port COM2 RJ45 JACK COM4 Port SMD FUSE Fuse for +5 V Power in COM3/4 Ports HDR 2x3 COM3/4 DC Supply Select TP-5815 Pro series Technical Manual 6 - 11...

  • Page 70: On Solder Side

    Please note that the 5 V DC supply should be selected only for supporting the Posiflex serial devices that are designed to be powered from this source. Whenever such Posiflex device is to be removed from this port, the 5 V DC supply must be deselected.

  • Page 71: Usb Msr Control Board (Sd100)

    USB MSR CONTROL BOARD (SD-100) COMPONENT SIDE AT43301 UMSRCPU-F JUMPER SETTINGS JP1 for U5 (MSR MCU) JP1 pin pair 1 – 2 3 – 4 5 – 6 7 – 8 9 – 10 11 – 12 Track 1 Track 1 Track 1 ISO/JIS Lead/End Code...

  • Page 72: Usb Msr Control Board (Sd200)

    USB MSR CONTROL BOARD (SD-200) COMPONENT SIDE AT43301 UMSRCPU-F JUMPER SETTINGS JP1 for U5 (MSR MCU) JP1 pin pair 1 – 2 3 – 4 5 – 6 7 – 8 9 – 10 11 – 12 Track 1 Track 1 Track 1 ISO/JIS Lead/End Code...

  • Page 73: Service And Spare Parts

    SERVICE AND SPARE PARTS SERVICE GUIDE SIDE MOUNT UPGRADE KIT The available side mount upgrade kits include BC-100U, KP-100, KP-100U, SD-100 and SD-200. The KP-100/KP-100U is a larger unit with always a 40 key programmable keypad. The BC-100U/SD-100/SD-200 is a smaller unit without this keypad.

  • Page 74: Rear Top Mount Upgrade Kit

    with or without an extension cable through the side of the cable cover to proper port. Break the obstructing sidewall of the cable cover at the cable entrance to the connector area. REAR TOP MOUNT UPGRADE KIT The upgrade kit that can be mounted on rear top of the whole Jiva TP series is PD302, a 2 by 20 LCD customer display.

  • Page 75: Base Mount Upgrade Kit

    BASE MOUNT UPGRADE KIT This upgrade is applicable to Jiva system with either slim base or universal base. On rear edge of the stand assembly, there is a rear connect cover. This area is designed for installing a low profile LCD customer display option PD-305 or a 12” 2nd LCD display panel option LM-6101 or a 15”...

  • Page 76: Base Installed Devices

    BASE INSTALLED DEVICES devices installable to slim base models universal base models are different. Both bases provide besides agile and stable support to main unit and upgrade also housing for several devices. The applicable protected devices to a slim base include: a 3.5” or 2.5” system HDD and UPS battery while the installable devices...

  • Page 77: Replace Base Installed 3.5" Hdd

    REPLACE BASE INSTALLED 3.5” HDD Remove the HDD bracket fixing screw as circled in left pictures to remove the HDD bracket from base. Further release of the 4 shoulder screws releases HDD from its bracket. However, for installing this HDD into its bracket please refer to the right picture and note that the operation must be in the sequence: Slide rubber sleeves into...

  • Page 78: To Remove The Earlier Version 2.5" Hdd

    Later Version Slim Base for 2.5” HDD Universal Base for 2.5” HDD 1. 2 Cable exit 2. Cable exit 3. Rubber feet 4. Bottom plate 5. Bottom plate fixing screw 6. 2.5” HDD window 7. Steel wire handle 8. Rubber handle seat 9.

  • Page 79: To Install The Earlier Version 2.5" Hdd

    TO INSTALL THE EARLIER VERSION 2.5” HDD 1. Open the 2.5” HDD bracket cover (A). 2. Put the 2.5” HDD (B) into bracket with its controller board facing up and its connectors (C) at far end from the bracket cover. 3.

  • Page 80: To Install The Later Version 2.5" Hdd

    TO INSTALL THE LATER VERSION 2.5” HDD 1. Open the 2.5” HDD bracket cover (A). 2. Put the 2.5” HDD (B) into bracket with its controller board facing up and its connectors (C) at far end from the bracket cover. 3.

  • Page 81: Cdrom Drive (For Universal Base)

    CDROM DRIVE (for universal base) To remove the CDROM drive bracket from the universal base please first remove the screw circled in the right picture after removal of HDD bracket and UPS battery and then slide the bracket in direction marked with dashed hollow arrow. To install the CDROM drive into the CDROM bracket,...

  • Page 82: Wall Mount Kits

    WALL MOUNT KITS WALL MOUNT KIT TYPES WB-6000 WB-6300 WB-6600 WB-6800 WB-6000 –– no installable devices in the bracket WB-6300 –– installable with 2.5” HDD, UPS battery in backpack WB-6600 –– installable with 3.5” HDD, UPS battery in backpack WB-6800 –– installable with 2.5” HDD, UPS battery, CDROM/DVD drive, power adaptor in backpack MOUNTING THE KIT AND MAIN UNIT TO WALL WB-6300 Cover...
  • Page 83 use screw to fix WB-6000 or back cover of WB-6300, WB-66000 or WB-6800 to these plastic cotters. WB-6300 Side Views WB-6600 Side Views WB-6800 Side Views For WB-6300, WB-6600 and WB-6800 with their back cover fixed on wall, please install the applicable device kits in the wall mount bracket per guide in next section and hang the bracket onto the back cover on wall as indicated in the side view pictures above.

  • Page 84: Device Installation In Bracket

    DEVICE INSTALLATION IN BRACKET WB-6300 WB-6600 WB-6800 Above pictures are inside view pictures of each empty wall mount brackets and those with all possible devices installed for an overall impression. Please note that all cables of the installed devices go out of the bracket through the indicated opening in lower part of the bracket for connection to the main unit.
  • Page 85 its tongue matching under a bridge in the wall of wall mount bracket with the UPS battery in place and fix it with the screw as in the above lower right picture. 2.5” HDD Kit To install the 2.5” HDD in WB-6300 & WB-6800, a 2.5” HDD bracket with screws and cables besides the HDD itself are required as in the leftmost picture above.
  • Page 86 2 support lugs with notches as arrowed in the leftmost pictures. Place edge of the conversion board in the notches and pull back the HDD bracket cover to open it and screw the HDD bracket to the posts as in the 2 left pictures.
  • Page 87 80W Power Adaptor Kit in WB-6800 To install the 80W power adaptor in WB-6800, an 80W power adaptor bracket and 2 screws besides the 80W power adaptor are required as in the left picture above. Please insert the power adaptor from the right side of the bracket in the way shown in top of middle picture above and insert the arrowed 2 lugs on power adaptor bracket into the arrowed 2 slits in wall mount bracket.

  • Page 88: Base Wall Mount Conversion

    bracket rectangular marked in the left picture to have the exterior of CDROM drive flat with the wall mount bracket. Connect the red arrowed connectors of IDE data and power cable to the CDROM drive. Exit the blue arrowed connectors through the correct opening in wall mount bracket and leave the rest for connection to the 2.5”...
  • Page 89 With cable connections disconnected, release the base box from the base stand by removing the 3 screws as red arrowed in the left picture for slim base model or in the right picture for universal base model. Though the removal of the base installed devices from the base box is not necessary for an experienced technician to remove the base box, a picture of an universal base without any base installed devices is given...
  • Page 90 Hook the wall mount bracket onto the back cover on the wall at positions shown in these side view pictures left for slim base and right for universal base. Fix the screw taken from the cable tie on top side of the converted wall mount bracket as arrowed in the top view pictures left for slim base and right for universal base.

  • Page 91: Open The Main Unit

    OPEN THE MAIN UNIT Opening the main unit is a tricky and difficult job. The first and the easiest step is to disconnect power and every cable (including the LED cable) and separate the main unit from the paddle assembly. Unlock and open the cable cover. To work on the most tricky part of the operation please first notice the 8 hooks on the front cover holding the Hooks from...

  • Page 92: Separate Lcd Panel Assembly

    SEPARATE LCD PANEL ASSEMBLY Please refer to the assembly drawing for all the following operations. The mechanical structure of the system is of snap-on structure and utilizes minimal number of screws in assembly as in pictures below. After removing the front cover, press down the 2 springs on bottom side of LCD panel assembly (1) and lift the LCD panel assembly by top edges (2).

  • Page 93: Open Cover Plate

    service part. Please pay particular attention to the routing of the three cables during the reverse process for reassembling. Please also make sure that in the reassembly process, the blue arrowed top edges of the riser card as in the left are secured in the also blue marked openings of the riser card cover plate.

  • Page 94: Replace Mainboard

    REPLACE MAINBOARD After removal of LPC adaptor card, please remove the 4 screws at the bottom of the connector panel and the 7 screws holding the main board to the back cover assembly as in pictures below. Disconnect the exhaust fan and raise the main board up. Unscrew the hex head screws of the connectors on the connector panel (I/O plate) to release it if necessary.

  • Page 95: Spare Parts List

    SPARE PARTS LIST The column “Pos.” in the list below refers basically to the ID numbers indicated in the Assembly Drawing. However, if this column is not available, it refers to a packaging item. The column “S.” indicates the alternative selections available for that position.
  • Page 96 Pos. S. Part Number Description 21815156205 106 1 LCD Inverter Module for AU 15” Panel 10501030042 107 1 Pan Head Screw M3-4L 21862031600 108 1 Inverter Cable for 15” LCD of source AU 10684038062 109 1 Binding Head Screw#6/32-6L 16320102010 110 1 Chassis Cover 16200120090...
  • Page 97 Pos. S. Part Number Description 36014001000 Slim Base Stand Assembly (w/ 3.5” IDE HDD Bracket & Stopper), Black 36014002002 Slim Base Stand Assembly (w/ 2.5” IDE HDD Bracket & Stopper), Charcoal 36014002000 Slim Base Stand Assembly (w/ 2.5” IDE HDD Bracket &...
  • Page 98 Pos. S. Part Number Description 21837105120 123 1 System Fan Two Ball Bearing 46292604200 TP059B Riser Card w/ USB Touch Controller, for LVDS LCD of 15” AU 46255606100 TP055A Riser Card w/ PS2 Touch Controller 46288606500 IR Touch Riser Card TP058E 46207614100 Riser Card for No Touch LVDS LCD LT057...
  • Page 99 Pos. S. Part Number Description 21901302032 Li-Battery CR2032 21972080127 AC Power Adaptor 12V/80W for TP/LT-58 Pro series 21868100500 Power Cord for Australia for TP/LT-58 Pro Series 21868200500 Power Cord for Europe for TP/LT-58 Pro Series 21868300500 Power Cord for Japan for TP/LT-58 Pro Series 21868400500 Power Cord for S.A.

  • Page 100: Assembly Drawing

    ASSEMBLY DRAWING TP-5815 Pro series Technical Manual 7 - 28...
