- Page 1 Jiva & Jiva (TP-5700/5800) SERIES USER’S MANUAL WORK STATION Rev. : Original...
-
Page 2: About This Manual
SOME IMPORTANT NOTES FCC NOTES This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. -
Page 3: Table Of Contents
TABLE OF CONTENTS BRIEF INTRODUCTION THE USER’S MANUAL ....... . 1 - 1 THE PRODUCT . - Page 4 WALL MOUNTING ........3 - 6 LOCATION FOR INSTALLATION .
-
Page 5: Brief Introduction
BRIEF INTRODUCTION THE USER’S MANUAL The purpose of this manual is to guide the user in the initial installation and general use of the Posiflex fully integrated compact touch interface workstation. Jiva SL & Jiva EL (TP5700/5800) series is a product group of fully integrated PC based Point-Of-Sale systems. -
Page 6: Standard Features
STANDARD FEATURES a) CPU: Celeron compatible 400 MHz up b) HDD: available for fat client models c) Support Win98, Win2000 in fat client models, and WinCE, Win XP embedded & Linux environment throughout whole series d) Support thin client architecture either boot from WinCE in CF card or Linux LAN boot e) Fanless design (for thin client models) to reduce dust/grease accumulation High quality 12.1”... -
Page 7: Optional Items
12. one CR port for control over 2 cash drawers max. 13. audio ports (1 Microphone input and 1 audio line output) n) Touch control functions: left/right button, double click, drag & draw o) High resolution touch sensor: 1024 x 1024 p) Dual display support q) VGA memory size shared from system memory (8 –... - Page 8 Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 1 - 4...
-
Page 9: Parts Identification

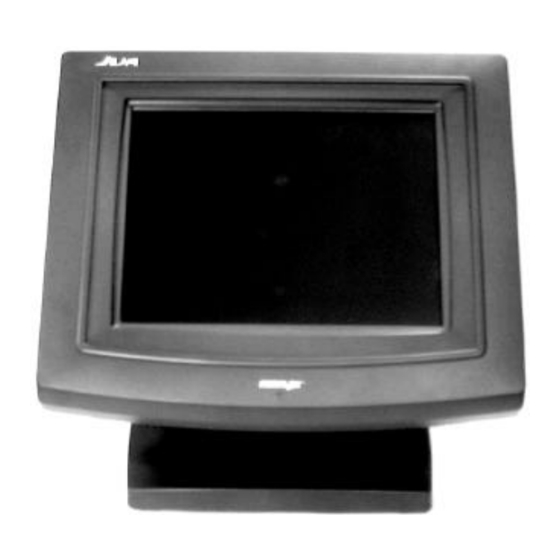

PARTS IDENTIFICATION FRONT VIEW Top Mount PD302 on Back The security device and top mount LCD customer display are options to both 12” and 15” models. The LED in the logo area serves for several purposes through giving different indication of steady/flashing green/blue light. Please refer to the paragraph discussing the LED indication in the chapter of “USING THE TOUCH POS”... -
Page 10: Side Views
SIDE VIEWS Right Side View Left Side View Push Down To Switch The Power ON/OFF Slide Switch For Power On/Off Control Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 2 - 2 Latch Hole For Cable Cover Push This Direction To Adjust The Tilt Angle Of The Display Panel Lock/Release Lever... -
Page 11: Rear View
REAR VIEW Cable Exit REAR VIEW OF MAIN UNIT Service Window Cable Cover Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 2 - 3 Lock/Release Button Detach Main Unit Optional Security Devices Lock/Release Lever Removal Hollow Of Cable Cover Matching Pegs Cable Exit... -
Page 12: Adjustable Stand Assembly
ADJUSTABLE STAND ASSEMBLY Matching Holes Stand Base Lock/Release Lever BOTTOM OF STAND ASSEMBLY Base UPS Battery Cover Lock/Release Button Main Unit Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 2 - 4 Cable Passage Cover Cable Exit Stand... -
Page 13: Connectors
CONNECTORS Turn Counterclockwise Then Take Out The Latch Key Locations of I/O Ports in original revision: PS2 KB PS2 Mouse Power Input Jack Audio Out Port Audio (Mic) Input Port UPS Battery Connector ★ CF Card Port is available in thin client models only. ★... - Page 14 Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 2 - 6...
-
Page 15: Installation Guides
INSTALLATION GUIDES CAUTION: Before any installation or cable connection to the set, please always make certain that the system is turned off and the external power source to the set is removed to prevent electric hazard! Never touch any metal pin in the connectors or circuits to avoid high voltage hazard or electrostatic discharge damage unless the operator is well grounded. -
Page 16: Preparing Stand Assembly
PREPARING STAND ASSEMBLY Take the adjustable stand assembly and turn it up side down to show the bottom of the base. 2 Sets of 4 Matching Holes If there is no need to install the optional UPS battery here (either not to be installed or already installed), please skip the next paragraph and start routing cables through the cable passage. -
Page 17: Installing Ups Battery
INSTALLING UPS BATTERY UPS Battery Removed Battery Cover Place the optional UPS battery in the battery compartment (shown top left). Screw on the battery cover and route the battery cable through the base. Please enable the UPS features in the software settings before use. ROUTING THE CABLES Jiva SL &... -
Page 18: Joining Main Unit And Stand
Service Window Push Open To The Right This battery socket accepts a 3 V button cell Lithium battery (CR2032) required to support the system real time clock. The jumpers in this window are designated for COM port power supply function. Please consult your dealer for technical support on setup of these jumpers. -
Page 19: Opening Cable Cover
OPENING CABLE COVER Insert the tip of the latchkey into a latch hole on one side near bottom of the main unit. Turn this key counterclockwise to the end. Do the same on the opposite side. Be sure to take the key out of the hole. Then push the lock/release lever on the base backward to adjust the stand to the most horizontal position for ease of operation. -
Page 20: Wall Mounting
both sides to secure the cable cover on the main unit. Adjust the tilt angle of the main unit for best viewing effect in the application. CAUTION: On doing any insertion or extraction of any connector, please always hold the connector head itself instead of pulling on the cable wire. Failure to do this could damage the cable and jack that is considered as an artificial destruction and is not covered by the warranty. -
Page 21: Operating System Recovery
consideration. If the main unit is tilted to near vertical position, the total height can be either 360 mm or 380 mm depending on the position adjusted. When the main unit is tilted to near horizontal position, the total height required is 275 mm. OPERATING SYSTEM RECOVERY For TP5712 and TP5715 models, if not using a remote boot operating system, the operating system exists in the Compact Flash Card. - Page 22 Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 3 - 8...
-
Page 23: Using The Touch Pos
USING THE TOUCH POS APPLICATION ENVIRONMENT It is very important that you check the following operational guidelines: Ventilation This terminal must NOT be operated in an environment with restricted ventilation. The installation should be such that there is at least 25mm air clearance around any top or side ventilation holes. -
Page 24: Hardware Switch
There is an LED in the logo area or under the printed logo for system revision that serves for several purposes. The relationship between LED status and other conditions is summarized in following table: LED Status System Status Green Blue Blue/flash Green/rapid flash Hardware Switch... -
Page 25: Software Support
Switch Manager” in “Posiflex Tools” in the Program Files helps managing these functions. Software Support The Jiva series provides a software power off command for application program maneuvers. The Jiva also provides a specific means for the software to detect if the system is working on external or UPS battery power. -
Page 26: Sound Port
through pin 9 after proper jumper setting change. All 4 ports are standard RS232 serial ports. When a serial Modem is to be used in Jiva SL & Jiva EL series, it is most recommended to use COM2 or COM3 port for this purpose. In this way any hardware resource conflict is eliminated and the MODEM ring up function can be supported. -
Page 27: Touch Terminal Manager
controller, touching any point on the screen surface after touching the right-click sticky button results as a click on the right button of the mouse at that point. However, the right button function is applicable only under the WIN 98 environment. TOUCH TERMINAL MANAGER The touch panel control parameters are already well calibrated in the factory prior to delivery. - Page 28 If, for any reason, the user wants to remove the driver for the RS232 touch controller, please select “Monitor Mouse for Windows 95” in the program list for removal. Jiva SL & Jiva EL (TP5700/5800) USER’S MANUAL 4 - 6...
