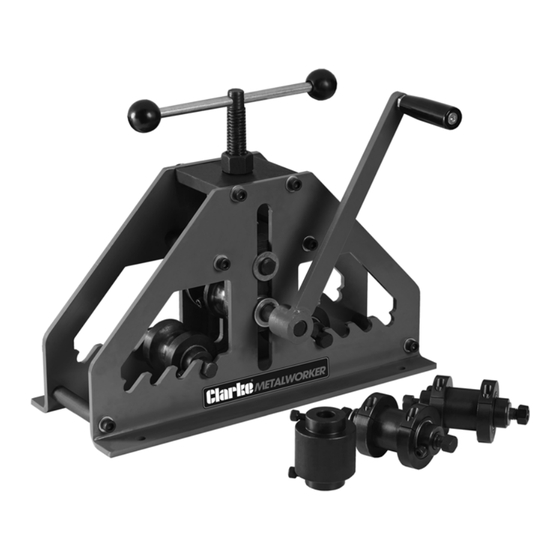

- Page 1 TUBE ROLLER MODEL NO: CTR1 PART NO: 7610960 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL0223...
-
Page 2: Safety Precautions
INTRODUCTION Thank you for purchasing this CLARKE Tube Roller. Before attempting to use the tube roller it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you and you can also look forward to the product giving you long and satisfactory service. - Page 3 UNPACKING Ensure the product suffered no damage during transit and that all items are present. Should any loss or damage become apparent, please contact your CLARKE dealer immediately. The following items are supplied. NO DESCRIPTION NO DESCRIPTION Main Body Rotary Handle Bar...
- Page 4 ASSEMBLY 1. To bench mount, choose an appropriate work bench for mounting. The workbench should be solid, level and strong enough to support the weight of the tool, the work material and pressure applied to the tool during application. 2. Unscrew the knob on one end of the Rotary Handle Bar and feed the Bar through the hole in the top of the Travelling Bolt and screw the knob...
- Page 5 CHANGING ROLLER DIES 1. Remove the Locking Pin and Washer from the Driving Shaft. 2. Using the 6mm Hex Key, loosen the Set Screws on the Upper Roller, then pull the Driving Shaft out the Side Wall and replace the Upper Roller. 3.
-
Page 6: Operation
OPERATION 1. Turn the Rotary Handle on top counter-clockwise, which will raise the Upper Roller. 2. After raising the bottom edge of the Upper Roller above the top edges of the Bottom Rollers, place the work piece into the tools cutouts of the rollers until it is contacting all three rollers, then using the Rotary Handle to tighten the Travelling Bolt down by... -
Page 7: Exploded Diagram
EXPLODED DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 8: Parts List
33 Spanner 22mm 17 Support Plate GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
