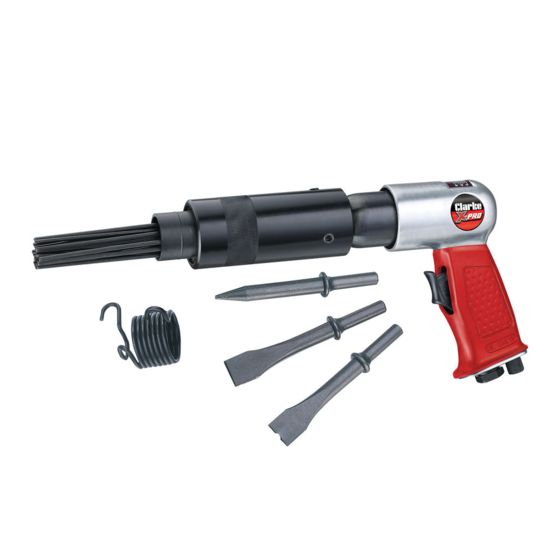

- Page 1 NEEDLE SCALER/CHISEL KIT MODEL NO: CAT164 PART NO: 3120178 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0517 -Issue 1...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Needle Scaler. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. -
Page 4: Air Hammer Specific Hazards
• The tool will be left unattended. 10. Never use the tool if it is defective or operating abnormally. 11. This air tool should be serviced at regular intervals by qualified service personnel. 12. Avoid damaging the air tool by applying excessive force of any kind. 13. - Page 5 OVERVIEW NO DESCRIPTION NO DESCRIPTION Needles Trigger Needle Holder Female Air Inlet Connector Chisel Retaining Spring Speed Control Regulator Chisels Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: Compressed Air Requirements
• A typical air line layout is shown above. If an automatic in-line filter/ regulator is used, it will keep the tool in good condition, but should be regularly checked & topped up with oil. Clarke air-line oil should be used, and the lubricator adjusted to approx 2 drops per minute. -
Page 7: Before Use
BEFORE USE FITTING THE NEEDLE HOLDER The Needle Scaler is packed in two halves: • The main body/drive assembly • The needle holder with needles 1. Screw the needle holder with needles, firmly onto the nose of the tool. • Tighten the three grub screws shown with a hex key to secure the needle tube in place. -
Page 8: Accessories And Consumables
(5 to 50 metres) etc. Contact your Clarke dealer or Clarke International Service Department for further information. Clarke Air-lne Oil (Part no. 3050825) is available from your Clarke dealer. Replacement needle set;- CAT172 (Clarke part no; 3120189). -
Page 9: Operation
OPERATION WARNING: ALWAYS WEAR PPE TO PROTECT YOURSELF FROM FLYING PARTICLES WHEN USING THIS PRODUCT. USING THE TOOL 1. Hold the tool firmly, then bring the tool towards the work at an angle of approximately 60-70 degrees. 2. Pull the trigger with the chisel in light contact with the work. -
Page 10: Maintenance
STORAGE If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air-line oil into the air inlet and depress the trigger in order to lubricate the internal parts. When not in use, the tool should be disconnected from the air supply and stored in a dry place out of the reach of children. -
Page 11: Troubleshooting
Your Clarke air tool has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the tool to your local Clarke dealer. -
Page 12: Specification
Notched 123 mm long Please note that the details and specifications contained herein are correct at the time of going to print. However Clarke International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List
PARTS LIST No Description No Description Main Housing Valve Spring Valve Seat Air Inlet Valve Plate Bushing End Cap O-Ring Piston Air Regulator Cylinder Bolt Needle Tube Trigger Needle Bolt Valve Stem Spring Retainer Valve Chisel Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 15: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
