- Page 1 Retractable Air Hose Reel Models CAR9PC & CAR15PC PART NOs: 3126005 & 3126000 USER GUIDE gc02/09...
-
Page 2: Environmental Protection
This guarantee does not effect your statutory rights. PARTS & SERVICE For spare parts and service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 / FAX: 020 8558 3622 or e-mail as follows: PARTS: Parts@clarkeinternational.com... -
Page 3: General Safety Rules

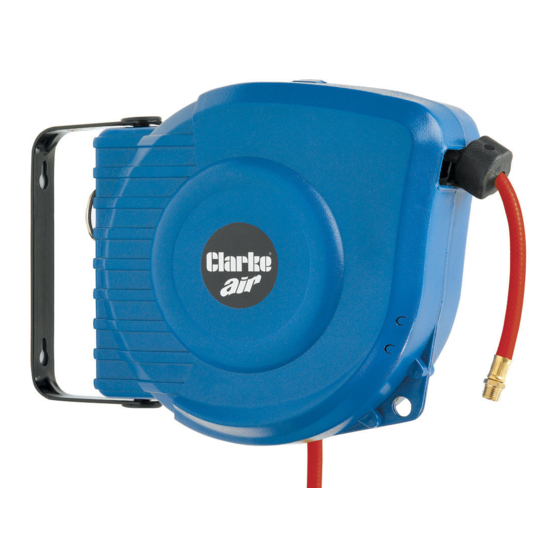

SPECIFICATION These CLARKE retractable air hose reels incorporate a spring driven, automatic rewind with locking ratchet mechanism. They can be installed in any location using the integral mounting bracket and can be swivelled to cover a wide range of movement. - Page 4 Mount the CAR9PC reel using two M8 bolts with washers secured through slots in the mounting bracket. Expanding bolts are supplied with the CAR15PC model for attaching to the building structure.
- Page 5 Undo & remove the four swivel hub securing screws ‘C’, and lift off the swivel hub. Renew the O-ring seal and re-assemble in reverse order. Model CAR15PC Remove the three side cover securing screws & lift off the cover to reveal the swivel assembly.
-
Page 6: Parts Diagram
PARTS DIAGRAM Model CAR9PC Description Part No. Description Part No. Casing Left Half CAR9PC01 Flat Washer CAR9PC15 Casing Right Half CAR9PC02 3-foot Washer CAR9PC16 Hose Reel (with track) CAR9PC03 Guiding Slip CAR9PC17 Right End Cover CAR9PC04 Guiding Board CAR9PC18 Bearing CAR9PC05 Locking Needle CAR9PC19... - Page 7 PARTS DIAGRAM Model CAR15PC Description Part No. Description Part No. Left End Cover CAR15PC01 Ratchet Pin CAR15PC16 Spring Tensioning Disc CAR15PC02 Ratchet Pin Guide CAR15PC17 Gear Cover CAR15PC03 Inlet Hose Connector CAR15PC18 Casing -Left Half CAR15PC04 Outlet Hose Connector CAR15PC19...
