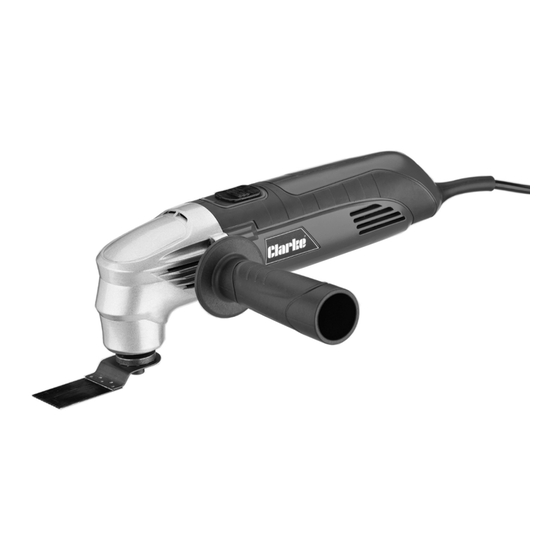

- Page 1 MULTI FUNCTION TOOL KIT MODEL NO: CMFT250 PART NO: 6462200 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1121- rev 3...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Multi function Tool Kit. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Specifications
Number of teeth Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 4: Safety Warnings
SAFETY WARNINGS WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. DO NOT operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. - Page 5 5. DO NOT overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. 6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 6 2. Use a metal detector to determine if there are gas or water pipes hidden in the work area or call the local utility company for assistance before beginning the operation. Striking or cutting into a gas line will result in explosion.
-
Page 7: Safety Symbols
SAFETY SYMBOLS Read instruction manual before use Wear eye protection Wear ear defenders Wear protective gloves Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. - Page 9 When unpacking, check for damage or shortages etc. Any found should be reported to your CLARKE dealer where the appliance was originally purchased. The CMFT250 multi function tool kit is supplied with the following components: 1. 1 x Retaining Disc 2.
-
Page 10: Before Use
BEFORE USE WARNING: ENSURE THAT THE TOOL IS SWITCHED OFF AND UNPLUGGED FROM THE MAINS SUPPLY BEFORE FITTING OR REMOVING THE ACCESSORIES OR HANDLE. FITTING THE SIDE HANDLE 1. If required, screw the side handle onto the body of the tool. NOTE: The handle can be fitted for left or right handed use as required. - Page 11 Tighten the retaining screw in a clockwise direction using the hex key supplied. Do not overtighten. FITTING THE SANDING SHEETS The sanding pad is faced with hook and loop material enabling the sanding sheets to be quickly and simply attached or removed. 1.
-
Page 12: Operation
OPERATION 1. Hold the tool firmly and switch on by sliding the On/Off switch forward. The motor will then run continuously. Slide the switch back and the motor will stop. 2. Adjust the speed control to the desired working speed by turning the thumb-wheel at the rear of the machine. - Page 13 CHOOSING THE CORRECT SANDING SHEET The sanding sheets are rated according to the number marked on the back of each sheet. The lower the number, the coarser and more abrasive the particles on the sheet will be. Very coarse grit (e.g.40) is used for removing paint and sanding down rough surfaces.
- Page 14 USING THE SAW ATTACHMENTS In sawing mode, the tool can be used to cut materials such as wood, plastics and sheet metal such as aluminium, although the supplied blades are not ideally suited to cutting steel or similar ferrous metals. CAUTION: CLAMP YOUR WORKPIECE SECURELY IF POSSIBLE BEFORE STARTING WORK.
-
Page 15: Maintenance
1. Switch the tool on before it touches the work piece. 2. Adjust the speed control to a medium/high speed as required. 3. Place the tool on the workpiece, ensuring the angle of the scraper blade to the workpiece is correct. 4. -
Page 16: General Maintenance
The carbon brushes in the tool will eventually wear down to such an extent that sparks will be noticed inside the tool and its performance will deteriorate. Brushes are a consumable spare which should be replaced by your Clarke dealer or power tool repairer. -
Page 17: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 18: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 19: Part List
Auxiliary handle The Multi-Function Tool Accessory Kit - (Part No 6462205) includes the following and is available from your CLARKE dealer. This includes: 1 x 32 mm Straight Blade 1 x 20 mm Straight Blade 1 x 10 mm Straight Blade...
