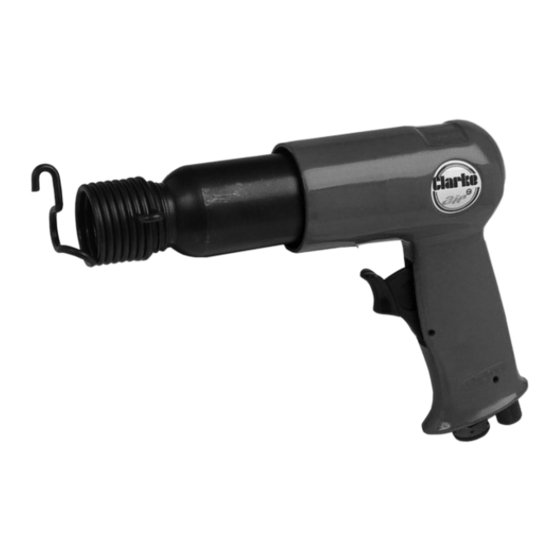

- Page 1 AIR HAMMER MODEL NO: CAT29B & CAT95 PART NO: 3110408 & 3110851 OPERATING & MAINTENANCE INSTRUCTIONS GC0614...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Air Hammer. The CAT29B and CAT95 differ only by virtue of the CAT95 having a polished metal casing as opposed to a painted finish. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. -
Page 4: Air Hammer Specific Hazards
13. The tool should be serviced at regular intervals by qualified service personnel. 14. Avoid damaging the tool for example by applying excessive force of any kind. 15. ALWAYS maintain the tool with care. Keep it clean for the best and safest performance. -
Page 5: Compressed Air Requirements
COMPRESSED AIR REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. • Air compressors used with the impact wrench must comply with the appropriate European Community Safety Directives. -
Page 6: Operation
OVERVIEW NO DESCRIPTION NO DESCRIPTION Retaining Spring Chisel Set comprising: Steel Cutter Chisel Trigger Tapered Punch Straihgt Cold Chisel Regulator Rivet Cutter Chisel e Double-sided Ripping Chisel 1/4” BSP Female Air Inlet Straight Cold Chisel OPERATION NOTE: Ensure the compressed air supply is turned off. 1. -
Page 7: Fitting The Chisel
1. If required, connect an in-line mini oiler to the tool. • A mini oiler helps to prolong the life of the air tool. Read the instructions supplied with the mini-oiler before use. 2. Connect a suitable hose to the tool and the other end of the hose to the compressed air supply. -
Page 8: Disconnecting The Air Supply
If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to lubricate the internal parts. Clarke air-line oil is available from your Clarke dealer, part no. -
Page 9: Maintenance
1. Before use, drain water from the air tank, air line and compressor. 2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be carried out regardless of whether or not an in-line mini oiler is used. If an inline mini oiler is not used, this procedure should be repeated after every two to three hours of use. -
Page 10: Parts List And Diagram
PARTS LIST & DIAGRAM Description No Description Housing Valve Disc Rubber Gasket Front Valve O-Ring Regulator Control Pin Piston O-Ring Cylinder Ball Valve Retainer Spring Spring Trigger Air Inlet Connector Roll Pin Rear Valve Roll Pin Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
