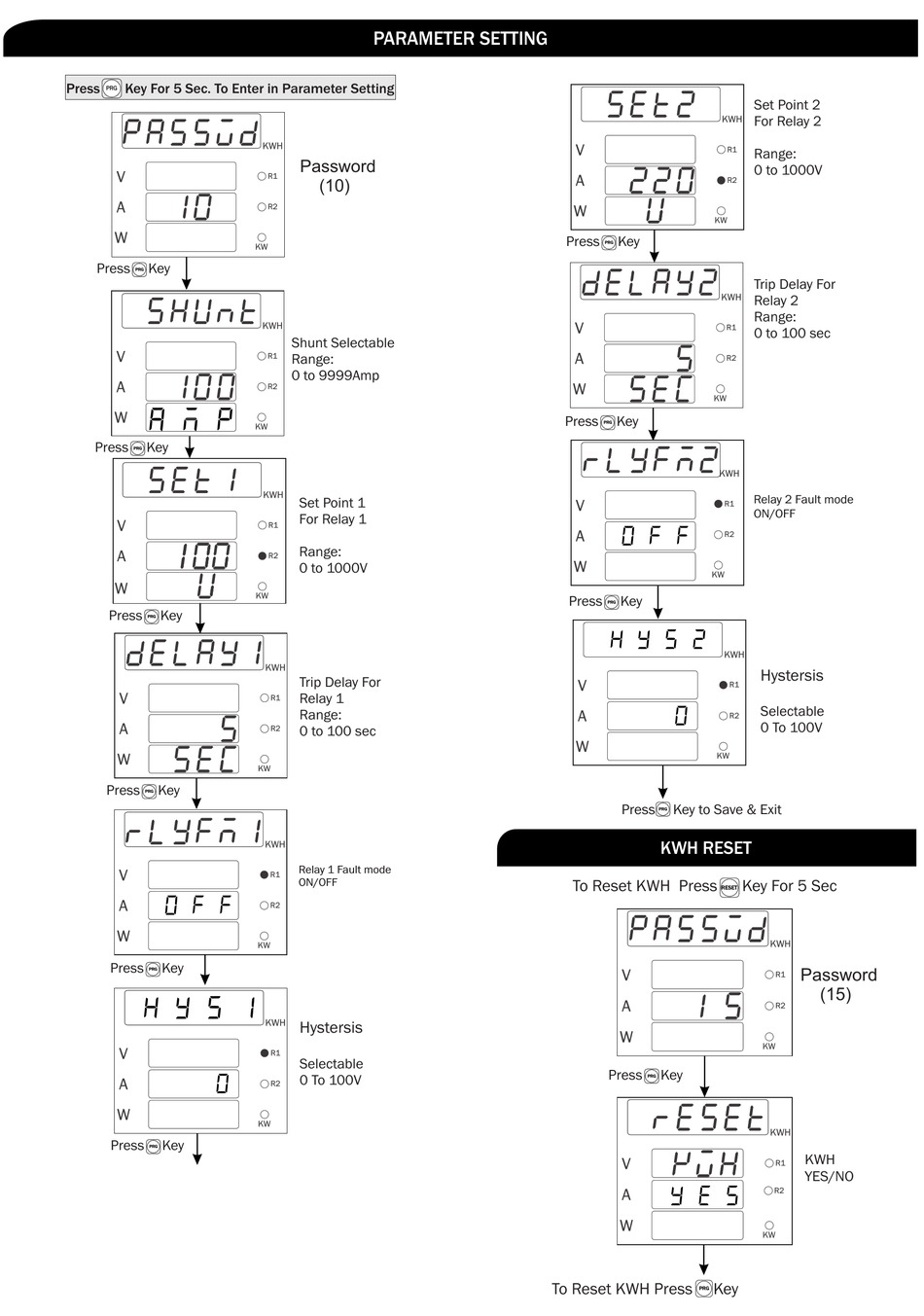

MULTISPAN MFM 142DC-M1 Quick Start Manual page 3

Press Key For 5 Sec. To Enter in Parameter Setting
PRG
Press Key
PRG
A M P
Press Key
PRG
Press Key
PRG
Press Key
PRG
O F F
Press Key
PRG
H Y S 1
O
Press Key
PRG
PARAMETER SETTING
Password
R1
(10)
R2
Shunt Selectable
R1
Range:
0 to 9999Amp
R2
Set Point 1
For Relay 1
R1
Range:
R2
0 to 1000V
Trip Delay For
Relay 1
R1
Range:
R2 0 to 100 sec
Relay 1 Fault mode
R1
ON/OFF
R2
Hystersis
R1
Selectable
0 To 100V
R2
Press Key
PRG
R1
R2
Press Key
PRG
R1
O F F
R2
Press Key
PRG
H Y S 2
O
Press Key to Save & Exit
PRG
KWH RESET
To Reset KWH Press
RESET
Press Key
PRG
Y E S
To Reset KWH Press Key
PRG
Set Point 2
For Relay 2
R1
Range:
0 to 1000V
R2
Trip Delay For
Relay 2
Range:
0 to 100 sec
Relay 2 Fault mode
ON/OFF
Hystersis
R1
Selectable
R2
0 To 100V
Key For 5 Sec
Password
R1
(15)
R2
KWH
R1
YES/NO
R2
