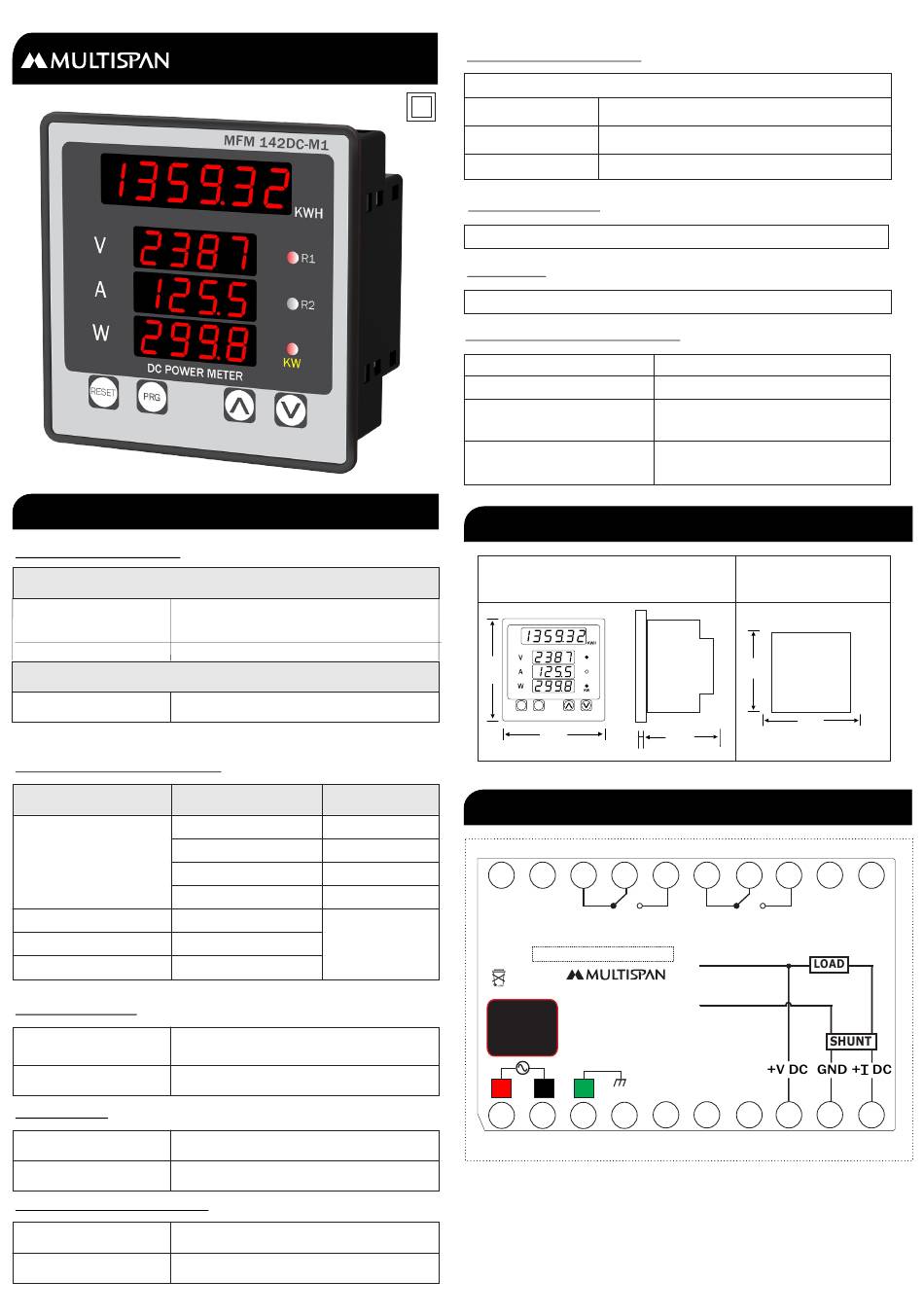

TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Input Current
Through external shunt
(-75mV To+75mV DC)
0 to 9999 Amp
Shunt Selectable
Direct voltage DC
0 to 1000V DC
CALCULATED PARAMETERS :
Parameter
0.00 - 49.99 V DC
50.0 - 199.9 V DC
DC Voltage
200.0 - 399.9 V DC
400.0 - 1000 V DC
DC Current
-999 - 9999 A DC
WATT
-999 - 9999 KW
0 - 999999 KWH
KWH
DISPLAY & KEYS :
6 Digit, 7 seg. 0.40" RED
Display
4 Digit, 3 Line 7 seg. 0.40" RED
Key
RESET, PRG, INC, DEC
DIMENSION :
Size (mm)
96 (H) x 96 (W) x 54 (D) mm
Panel Cutout
92 (H) x 92 (W) mm
AUXILIARY POWER SUPPLY :
Power Supply
100V to 270V AC
Burden
Approx 5VA @ 230V AC

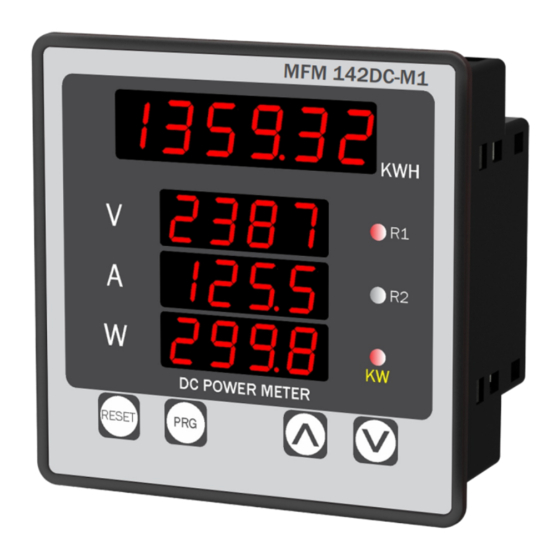

DC MULTIFUNCTION METER
MFM 142DC-M1
Current
Voltage
Range
Accuracy
1 % OF 49.99V
1 % OF 199.9V
1 % OF 399.9V
1 % OF 1000 V
1 % OF FSD
OUTPUT SPECIFICATION:
Relay Output
Relay
2 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC (Reg. Load)
COMMUNICATION:
RS-485 MODBUS
ACCURACY
Class 1.0 (Standard)
ENVIRONMENTAL CONDITION
Working Temperature
Storage Temperature
Relative Humidity
Protection Level
( As per Request )
MECHANICAL INSTALLATION
Outline Dimension (mm)
MFM 142DC-M1
R1
96
R2
DC POWER METER
RESET
PRG
3
96
TERMINAL CONNECTION
20
19
18
17
-
D
+
D
NC
C
MODBUS
RELAY-2
MFM 142DC-M1-A2-00
www.multispanindia.com
Made in India
100
~
Voltage: 0 To 1000V DC
Current: -999 To 9999 Amp DC
270V AC
(Through Shunt)
50/60 HZ
Input: -75 To 75mV
5VA
Accuracy: Class 1.0
N
E
L
E
1
2
3
4
0 to 55°C
0 to 55°C
95 % RH Non-
Condensing
IP-65 (Front side As per
IS/IEC 60529 : 2001)
Panel Cutout
Dimension (mm)
92
92
54
16
15
14 13
12
NO
NC
C
NO
RELAY-1
+1000V DC
GND
5
6
7
8
9
11
10
