- Page 1 Product Manual MULTI FUNCTION METER AVH-14N Multispan Control Instruments Pvt Ltd 72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India. export@multispanindia.com +91-9978991483 www.multispanindia.com...
-
Page 2: Technical Specification

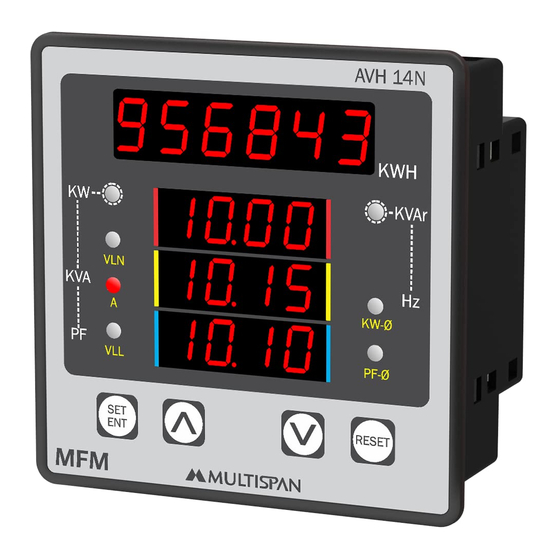

Technical Specification Model AVH-14N UPPER: 7 Seg, 6digit,0.40 , RED LED display for KWH Display LOWER: 7 Seg, 4digit,0.40 , RED LED AVH 14N Size (mm) 96(H) X 96 (W) X 50 (D) mm Panel Cutout 92 X 92 mm ... -
Page 3: Parameter Display
0.000 - 9999 KVAr MD KVAr Writing Connection To select connection press key and power on the instrument. To save the connection power off the instrument. 3 Phase/3wire 3 Phase/4wire Upper Display Change by Lower Display AVH-14N Page-2 www.multispanindia.com... - Page 4 (Kwh, KVAh, KVArh Done) Press key to save & exit Reset MD Press Password Change by & Press Reset Press Reset Press key to save & exit AVH-14N Page-3 www.multispanindia.com...
- Page 5 Press key Range: 1 To 60 Press key Press key Reset Lhrs/Nhrs select by & Press key Press key Reset Lhrs/Nhrs Done Again Press key to save & exit AVH-14N Page-4 www.multispanindia.com...
- Page 6 AVH 14N Page:4 . 3P-3W 3P-4W . KW-Ø . Display Line 1 PF-Ø Display Line 2 Display Line 3 AVH-14N Page-5 www.multispanindia.com...
- Page 7 AVH 14N Page:9 3P-3W 3P-4W KW-Ø R-KW Display Line 1 PF-Ø Y-KW Display Line 2 B-KW Display Line 3 AVH-14N Page-6 www.multispanindia.com...
- Page 8 Voltage(P-P) : 50-500V AC, CAT III Accuracy Class: 1.0 Voltage(P-P) : 50-500V AC, CAT III Accuracy Class: 1.0 (P-N) : 30-300V AC, CAT III (P-N) : 30-300V AC, CAT III 250V AC 250V AC 50/60 Hz 50/60 Hz AVH-14N Page-7 www.multispanindia.com...
-
Page 9: Safety Precautions
1) The equipment should be cleaned regularly to avoid blockage of ventilating parts. 2) Clean the equipment with a clean soft cloth. Do not use isopropyl alcohol or any other cleaning agent. 3) Fusible resistor must not be replaced by operator. AVH-14N Page-8 www.multispanindia.com... -
Page 10: Mechanical Dimension
Mechanical Dimension Prepare the panel cutout with proper dimensions as show below. Right Side View Top View MODEL 96mm 96mm 92mm 92mm 52mm 56mm DIMENSIONS AVH-14N Page -9 www.multispanindia.com... - Page 11 Note: AVH-14N Page -10 www.multispanindia.com...
- Page 12 Note: Product improvement and upgrade is a constant procedure. So for more updated operating information and support, Please contact our helpline : +91-9978991474/76/82 or Email at service@multispanindia.com Ver: 1812 AVH-14N Page -11 www.multispanindia.com...
