MULTISPAN AVH 14N User Manual

User Manual

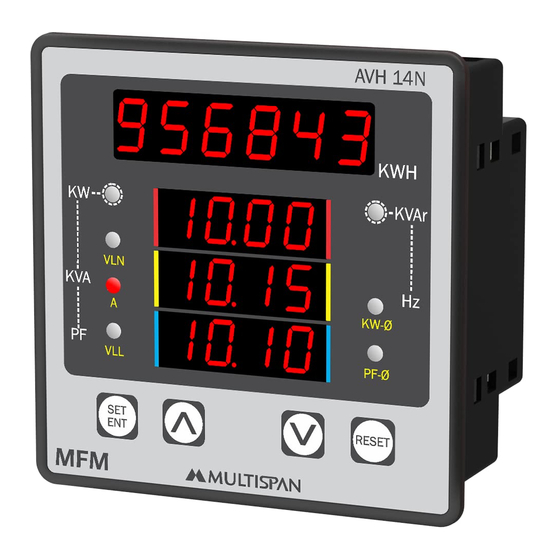

AVH 14N
Multispan Control Instruments Pvt Ltd
72/B, Phase 1, GIDC Estate, Vatva, Ahmedabad-382445, Gujarat, India.
export@multispanindia.com
www.multispanindia.com
Technical Specification
INPUT:
Direct Voltage AC
Burden
Frequency
(Network Selection)
Primary CT Ratio
Secondary Current AC
Burden
Overload
DISPLAY AND KEYS:
Upper: 6 Digit, 7 Seg 0.40",RED LED For KWH
Display
LOWER: 4 Digit, 7 Seg 0.40",RED, 3 Line
Keys SET/ENT, INC, DEC, RESET
DIMENSION:
Size (mm)
Panel Cutout (mm)
AUXILIARY SUPPLY:
Supply Voltage
Power Consuption
ENVIRONMENT CONDITION:
Protection Level
(As Per Request)
Operating Temperature 0°C To 55°C
Relative Humidity
+91-9978991483
Voltage AC
30 to 300V(L - N)
50 to 500V(L - L)
< 0.2VA
45.0 to 65.0 Hz
3 Phase - 3 Wire, 3 Phase - 4 Wire
Current AC
5 to 6000 Amp selectable
50mA to 5 Amp Direct
< 0.2VA
Up to 6A continuous
96 (H) X 96 (W) X 52 (D) mm
92 (H) X 92 (W) mm
100 to 270V AC, 50/60 Hz
4VA @ 230 AC MAX
IP-65 (Front side) As per IS/IES
60529 : 2001
Up to 95% RH Non Codensing
Terminal Diagram
20 19 18 17
L1 L2
S1 S2 S1 S2
Model:
AVH 14N-A2-00
CAT III
Range:
Current: 50mA To 5A AC
Made in India
Voltage (L-L) : 50-520V AC
100 ~
(L-N) : 30-300V AC
270V AC
!
System:
50/60 Hz
3Ph-4W/3Ph-3W
4VA
L N
1
2 3 4
Maximum Demand
* The maximum demand value is the maximum average
value of the instantaneous power during a defined time
interval set in MD Time parameter. The default value of
MD time is 15 minutes, which is selectable.
Wiring Connection
To select connection press
instrument.To save the connection power off the
instrument.
3 Phase/3wire 3 Phase/4wire
Upper Display C O n e
3 P 3 w
Lower Display
Parameters
Parameter Display
Line Voltage (Phase-to-Phase) (Vpp)
Phase Neutral Voltage (Vpn)
Line CURRENT ( ~A )
Active Power ( KW ) Total
Active Power per Phase(KW)
Active Energy ( KWH )
Apparent Energy ( KVAh )
Reactive Energy ( KVArh)
Power Factor ( PF ) Average
Power Factor per phase ( PF )
Apparent Power (KVA )
Frequency ( Freq )
Reactive Power ( KVAr )
Load hours
No load hours
RPM
MD KW
MD KVA
MD KVAr
16 15 14 13
12
L3
S1 S2
Accuracy:
For Voltage & Current
Class: 0.5
For Power & Energy
Class: 1.0
www.multispanindia.com
V
V
V
L L
1 2
5 6 7 8
key and power on the
RESET
C O n e
3 P 4 w
Measurement Range
50 - 500 V
30 - 300 V
50mA -5A (Direct without CT)
0.000 - 9999 KW
0.000 - 9999 KW
000.000 - 999999 KWh
000.000 - 999999 KVAh
000.000 - 999999 KVArh
0.10 - 1.00
0.10 - 1.00
0.000 - 9999 KVA
45 - 65 Hz
0.000 - 9999 KVAr
9999.59 Hrs/Min.
9999.59 Hrs/Min.
3000 RPM
0.000 - 9999 KW
0.000 - 9999 KVA
0.000 - 9999 KVAr
11
N
L
3
9 10
Change by
key
RESET
