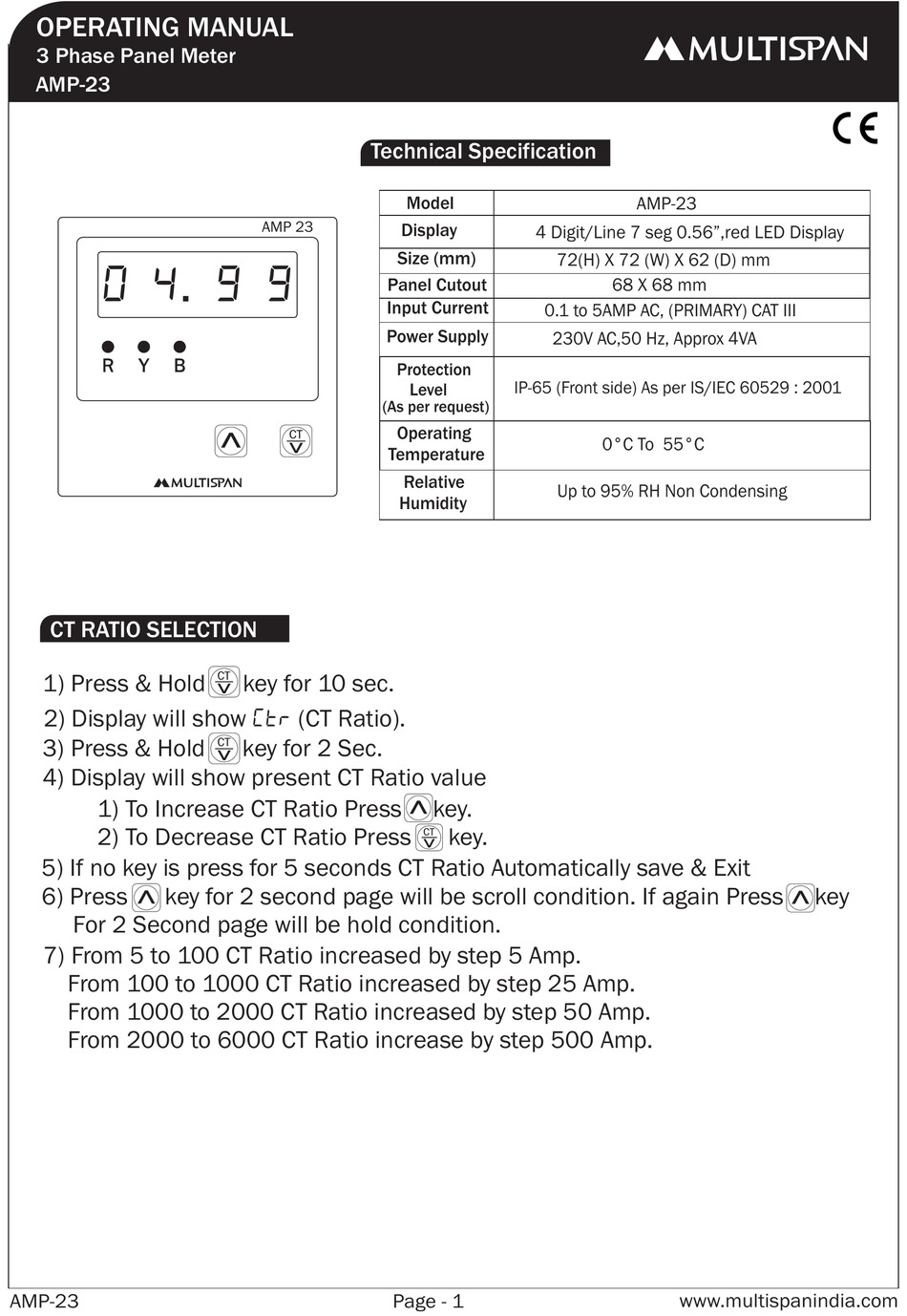

MULTISPAN AMP-23 Operating Manual

OPERATING MANUAL
3 Phase Panel Meter
AMP-23
.
R Y B

CT RATIO SELECTION

1) Press & Hold
2) Display will show  (CT Ratio).
3) Press & Hold
4) Display will show present CT Ratio value
1) To Increase CT Ratio Press
2) To Decrease CT Ratio Press
5) If no key is press for 5 seconds CT Ratio Automatically save & Exit
6) Press key for 2 second page will be scroll condition. If again Press
For 2 Second page will be hold condition.
7) From 5 to 100 CT Ratio increased by step 5 Amp.
From 100 to 1000 CT Ratio increased by step 25 Amp.
From 1000 to 2000 CT Ratio increased by step 50 Amp.
From 2000 to 6000 CT Ratio increase by step 500 Amp.
AMP-23

Technical Specification

AMP 23
Panel Cutout
Input Current
Power Supply
(As per request)
CT
Temperature
CT
key for 10 sec.
CT
key for 2 Sec.
Model
Display
4 Digit/Line 7 seg 0.56",red LED Display
Size (mm)
72(H) X 72 (W) X 62 (D) mm
0.1 to 5AMP AC, (PRIMARY) CAT III
230V AC,50 Hz, Approx 4VA
Protection
IP-65 (Front side) As per IS/IEC 60529 : 2001
Level
Operating
Relative
Up to 95% RH Non Condensing
Humidity
key.
key.
CT
Page - 1
AMP-23
68 X 68 mm
0°C To 55°C
