OPERATING MANUAL

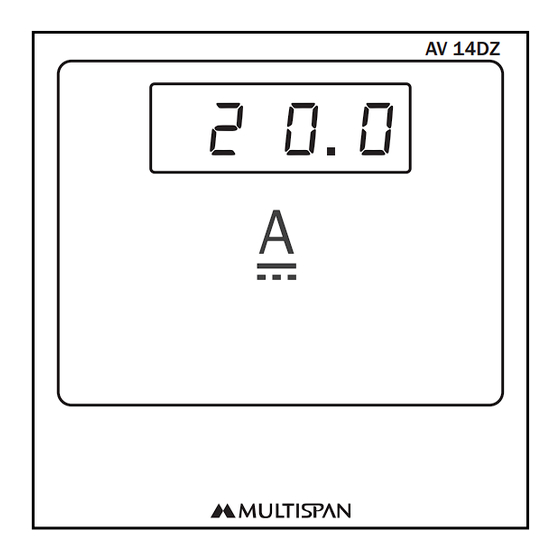

DC AMPERE METER
AV-14DZ
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Range
Power Supply
Protection Level
(As per request)
Operating
Temperature
Connection Diagram
AV-14DZ
4 digit,7 seg 0.56" RED
100 To 270V AC/DC, 50/60 Hz, Approx 2VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
Range: 20.0A DC CAT III
Accuracy: ±1% of Full Range ±1 Count
AV 14DZ-E3-00
Made in India
100 270V
AC/DC
!
50/60 Hz, 2VA
L
N
A+
5
1
2
3
4
Page-1
AV 14DZ
2 0. 0
AV 14DZ
96 X 96 X 54 mm
92 X 92 mm
20.0A DC
Relative
Up to 95% RH Non Condensing
Humidity
www.multispanindia.com
-
A
6
7
8
9
10
www.multspanindia.com
Advertisement
Related Manuals for MULTISPAN AV-14DZ
Summary of Contents for MULTISPAN AV-14DZ
- Page 1 OPERATING MANUAL DC AMPERE METER AV-14DZ AV 14DZ 2 0. 0 Technical Specification Model AV 14DZ Display 4 digit,7 seg 0.56” RED Size(HXWXD) 96 X 96 X 54 mm 92 X 92 mm Panel Cutout Range 20.0A DC 100 To 270V AC/DC, 50/60 Hz, Approx 2VA...
- Page 2 1) The equipment should be cleaned regularly to avoid blockage of ventilating parts. 2) Clean the equipment with a clean soft cloth. Do not use isopropyl alcohol or any other cleaning agent. 3) Fusible resistor must not be replaced by operator. AV-14DZ Page - 2 www.multispanindia.com...
