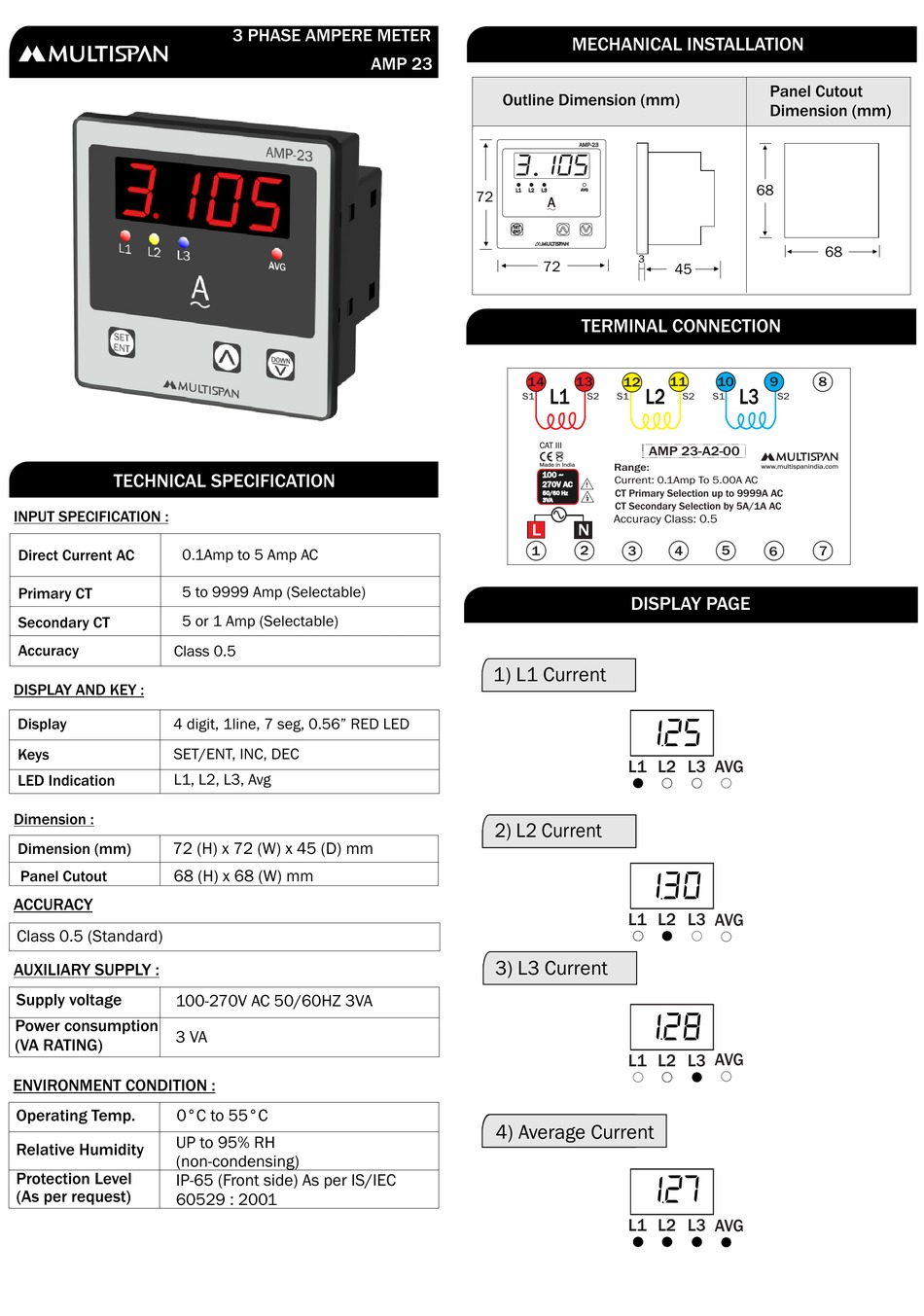

MULTISPAN AMP 23 Quick Start Manual

TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Direct Current AC 0.1Amp to 5 Amp AC
5 to 9999 Amp (Selectable)
Primary CT
5 or 1 Amp (Selectable)
Secondary CT
Accuracy
Class 0.5
DISPLAY AND KEY :
Display
4 digit, 1line, 7 seg, 0.56" RED LED
SET/ENT, INC, DEC
Keys
L1, L2, L3, Avg
LED Indication
Dimension :
72 (H) x 72 (W) x 45 (D) mm
Dimension (mm)
68 (H) x 68 (W) mm
Panel Cutout
ACCURACY
Class 0.5 (Standard) Class 0.5 (Standard)
AUXILIARY SUPPLY :
Supply voltage
100-270V AC 50/60HZ 3VA
Power consumption
3 VA
(VA RATING)
ENVIRONMENT CONDITION :
Operating Temp. 0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001

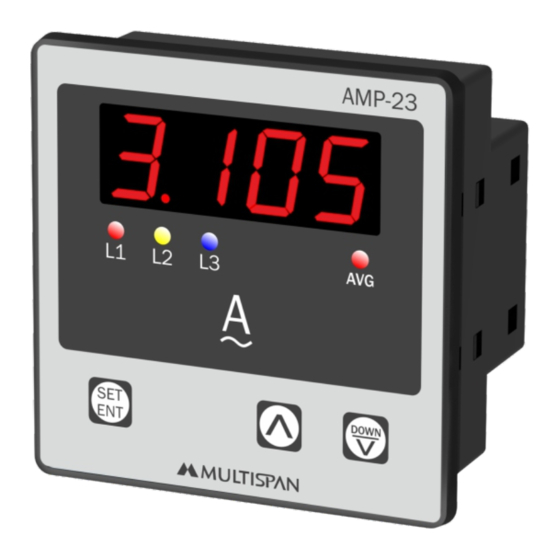

3 PHASE AMPERE METER
AMP 23
MECHANICAL INSTALLATION
Outline Dimension (mm) Outline Dimension (mm)
3.105
72
3
72
TERMINAL CONNECTION
14 13 12
L1 L2
S1 S2 S1
CAT III
AMP 23-A2-00
Made in India
Range:
100 ~
Current: 0.1Amp To 5.00A AC
270V AC
!
CT Primary Selection up to 9999A AC
50/60 Hz
3VA
CT Secondary Selection by 5A/1A AC
Accuracy Class: 0.5
L N
1 2
3
DISPLAY PAGE
1) Voltage L1-L2 1) L1 Current
125
L1
2) Voltage L2-L3 2) L2 Current
130
L1 L2 L3
3) Voltage L3-L1 3) L3 Current
128
L1 L2 L3
4) Frequency
4) Average Current
127
L1 L2 L3
Panel Cutout Panel Cutout
Dimension (mm) Dimension (mm)
68
68
45
11 10 9 8
L3
S2 S1 S2
