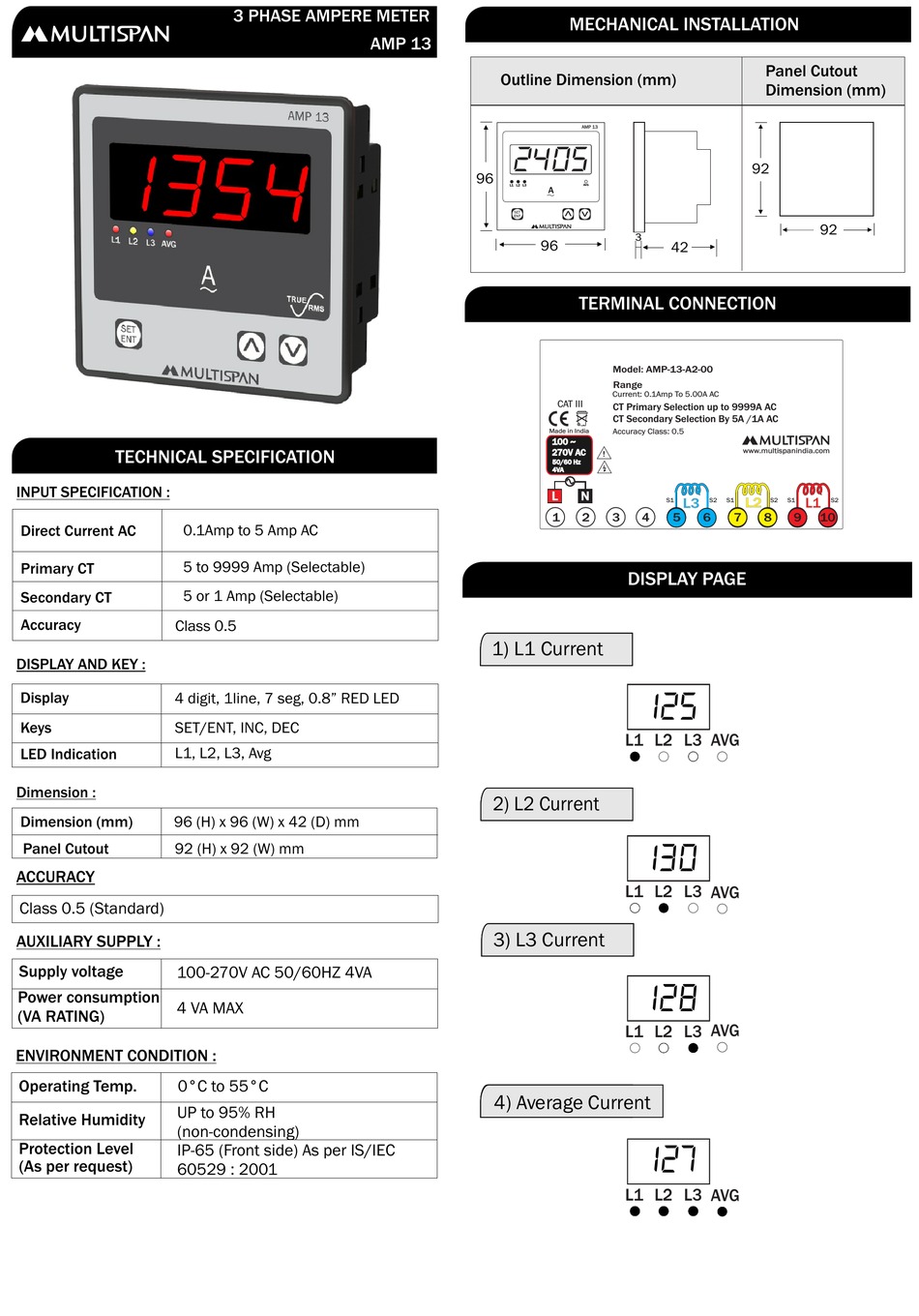

TECHNICAL SPECIFICATION
INPUT SPECIFICATION :
Direct Current AC
0.1Amp to 5 Amp AC
5 to 9999 Amp (Selectable)
Primary CT
5 or 1 Amp (Selectable)
Secondary CT
Accuracy
Class 0.5
DISPLAY AND KEY :
Display
4 digit, 1line, 7 seg, 0.8" RED LED
Keys
SET/ENT, INC, DEC
L1, L2, L3, Avg
LED Indication
Dimension :
Dimension (mm)
96 (H) x 96 (W) x 42 (D) mm
Panel Cutout
92 (H) x 92 (W) mm
ACCURACY
Class 0.5 (Standard)
Class 0.5 (Standard)
AUXILIARY SUPPLY :
Supply voltage
100-270V AC 50/60HZ 4VA
Power consumption
4 VA MAX
(VA RATING)
ENVIRONMENT CONDITION :
Operating Temp.
0°C to 55°C
UP to 95% RH
Relative Humidity
(non-condensing)
Protection Level
IP-65 (Front side) As per IS/IEC
(As per request)
60529 : 2001

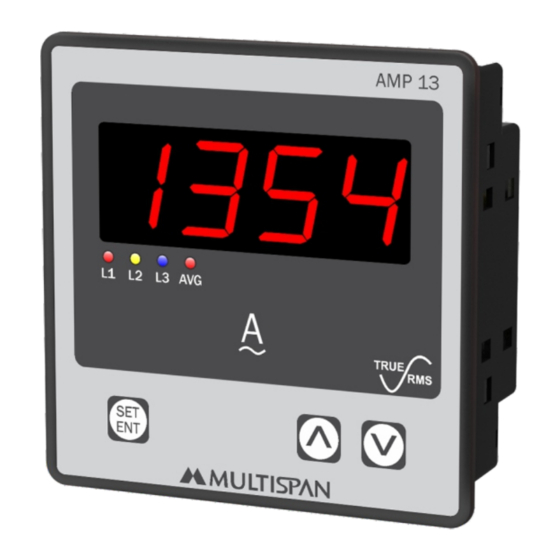

3 PHASE AMPERE METER
AMP 13
MECHANICAL INSTALLATION
Outline Dimension (mm)
Outline Dimension (mm)
AMP 13
2405
96
L1 L2 L3
AVG
A
3
96
TERMINAL CONNECTION
Model: AMP-13-A2-00
Range
Current: 0.1Amp To 5.00A AC
CAT III
CT Primary Selection up to 9999A AC
CT Secondary Selection By 5A /1A AC
Made in India
Accuracy Class: 0.5
100
~
270V AC
!
50/60 Hz
4VA
L
N
1
2
3
4
DISPLAY PAGE
1) L1 Current
1) Voltage L1-L2
125
L1
2) Voltage L2-L3
2) L2 Current
130
L1 L2 L3
3) Voltage L3-L1
3) L3 Current
128
L1 L2 L3
4) Frequency
4) Average Current
127
L1 L2 L3
Panel Cutout
Panel Cutout
Dimension (mm)
Dimension (mm)
92
92
42
www.multispanindia.com
L3
L2
L1
S1
S2
S1
S2
S1
5
3 6
7
8
9
10
L2 L3
AVG
AVG
AVG
AVG
S2
