Commissioning
3
Checking piping and electrical installation
3.1
Checking piping installation
During transportation and installation there is a risk that the heat pump may be damaged and components may move or become bent,
and this can cause abnormal noise. It is therefore important to check that the heat pump is free from defects after installation and before
commissioning.
Before filling the heating system, check the pipe installation according to the checklist below.
For further information, also see the Installation Quick Guide.
Piping checklist
Are the pipe connections in accordance with the connection diagram?
Is the dirt strainer fitted on the return pipe? See image below.
Is an expansion tank fitted?
Is a valve pipe with safety valve and manometer fitted?
Is a filler cock with non-return valve for the heating system fitted?

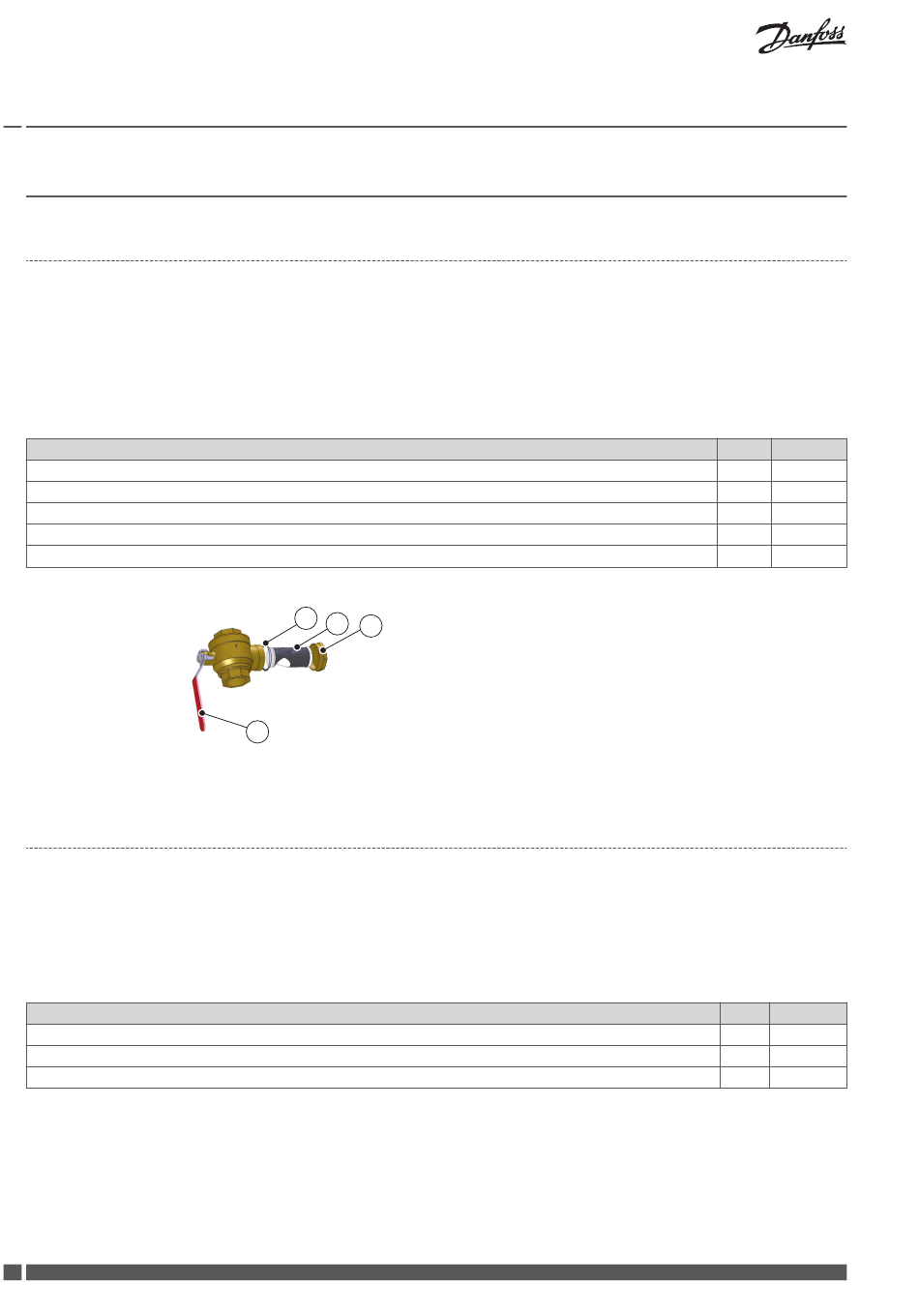

Fig. 1: Dirt strainer
3.2
Checking electrical installation
This equipment complies with IEC 61000-3-12 provided that the short-circuit power S
point between the user´s supply and the public system.
It is the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator if neces-
sary, that the equipment is connected only to a supply with a short-circuit power S
Before turning on electrical power, check the electrical installation according to the checklist below.
Electrical installation checklist
Are circuit-breakers installed?
Are correct fuses installed? See fuse table below.
Positioning of the outdoor sensor. See "Positioning of the outdoor sensor".
10
DHP-H Varius Pro+/DHP-L Varius Pro+
D
C
B
A
VIJSG202
A
Stopcock
B
Cover
C
Dirt strainer
D
O-ring
is greater than or equal to 2 MVA at the interface
sc
greater than or equal to 2 MVA .
sc
OK
Not OK
OK
Not OK
